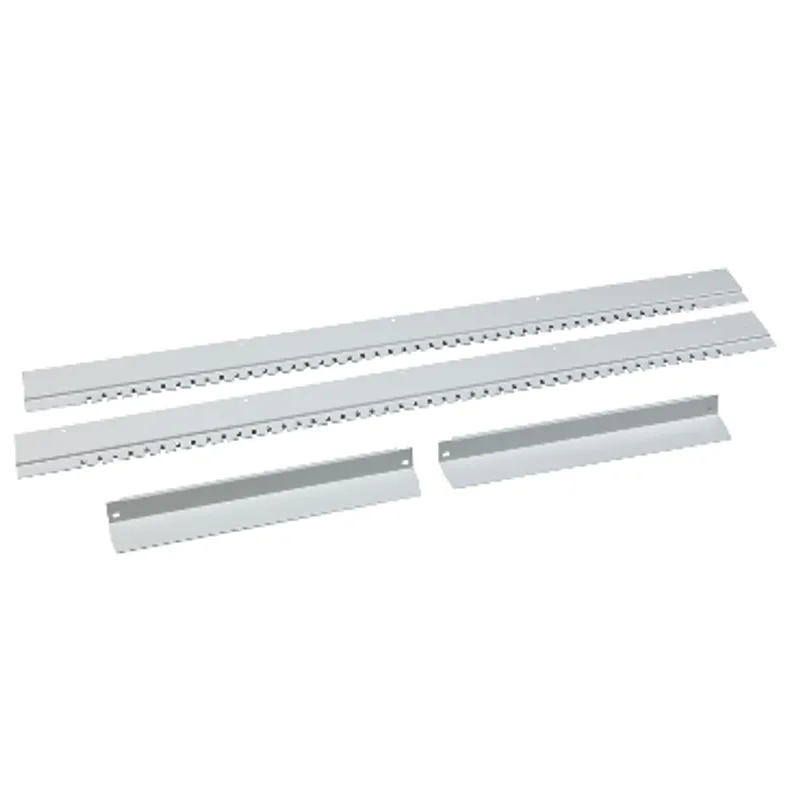

Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H2000 W600mm, 288 modules of 18mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 7.92 kg |
Shipping & availability
When can NSYCSH206 be shipped?
NSYCSH206 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCSH206 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCSH206 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCSH206, subject to availability and destination.
Coupling kit for Spacial SM and Spacial SF enclosures The coupling kit is to be fixed on front of enclosure by fixing elements The real width is 502mm and nominal width is 600mm The real height is 1905mm and nominal height is 2000mm The real depth is 100mm Number of 18mm modules is 288 (1 module = 2 steps = 18 mm) The product is made from grey steel (RAL 7035)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Product or component type | Coupling kit |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 2 horizontal crossbars, 2 vertical uprights |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Total number of 18 mm modules | 288 |
| Height | Real: 1905 mm, Nominal: 2000 mm |
| Width | Real: 502 mm, Nominal: 600 mm |
| Depth | Real : 100 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 206.500 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 5.500 cm |
| Package 1 Weight | 7.920 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 200.000 cm |
| Package 2 Weight | 396.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
