Schneider Electric NSYCSH186

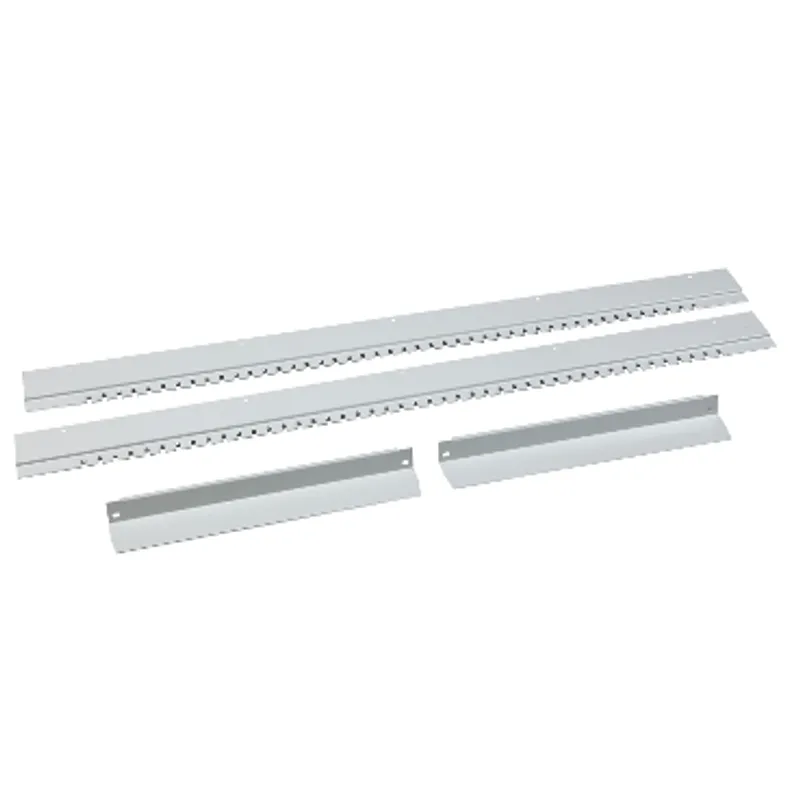

Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H1800 W600mm, 240 modules of 18mm
- MPN
- NSYCSH186
- EAN
- 3606480063794
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYCSH186?
This is a single-chassis coupling set suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. The product consists of vertical uprights and horizontal crossbars, providing convenient access to the enclosure's interior for easy component installation. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The nominal width and height are 600mm and 1800mm respectively. The real width, height and depth are 502mm, 1705mm and 100mm respectively. The maximun number of 18mm modules is 240. The kit contains 2 vertical uprights, 2 horizontal crossbars and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Product or component type | Coupling kit |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 2 horizontal crossbars, 2 vertical uprights |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Total number of 18 mm modules | 240 |
| Height | Real: 1705 mm, Nominal: 1800 mm |
| Width | Real: 502 mm, Nominal: 600 mm |
| Depth | Real : 100 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 187.000 cm × 12.000 cm × 5.500 cm (L × W × H), 7.276 kg |
| Package 2 | 40 P2M, 120.000 cm × 200.000 cm × 40.000 cm (L × W × H), 291.040 kg |
