PanelSeT CRN tspt door w/o mount.plate. H1000xW800xD250 IP66 IK08 RAL7035..
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 29.82 kg |
Shipping & availability
When can NSYCRN108250T be shipped?
NSYCRN108250T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN108250T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN108250T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN108250T, subject to availability and destination.

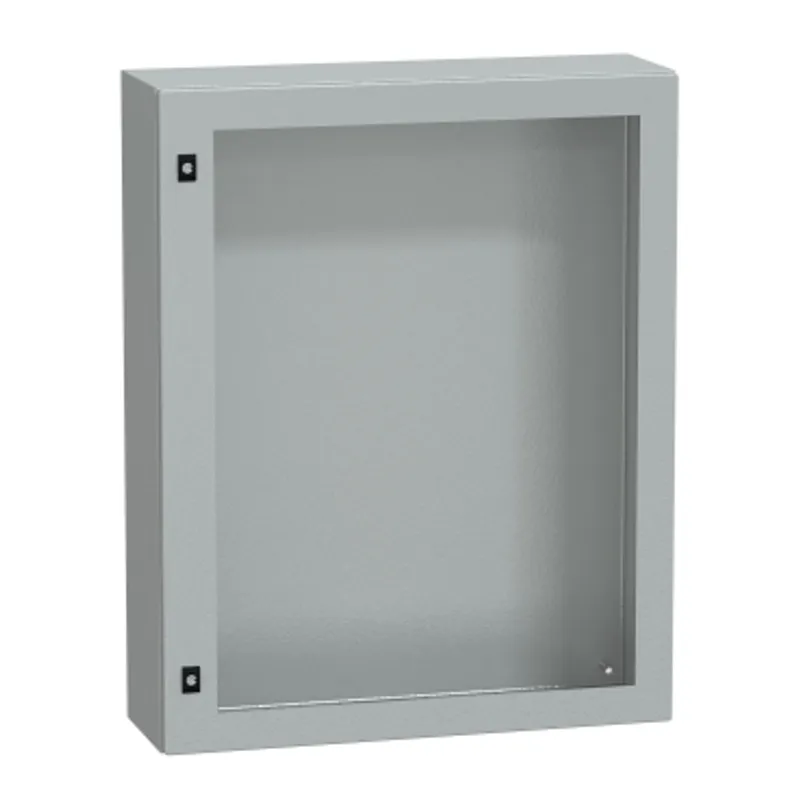

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK08 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 1000mm, 800mm, and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a steel and security glass door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the two bottom cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 29,815kg
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 250 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 2 cable gland plate: bottom |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| body type | Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 29.815 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.000 cm |
| Package 1 Width | 81.500 cm |
| Package 1 Length | 101.500 cm |
| Package 1 Weight | 27.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 186.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 230.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
