Schneider Electric NSYCAP291LZF

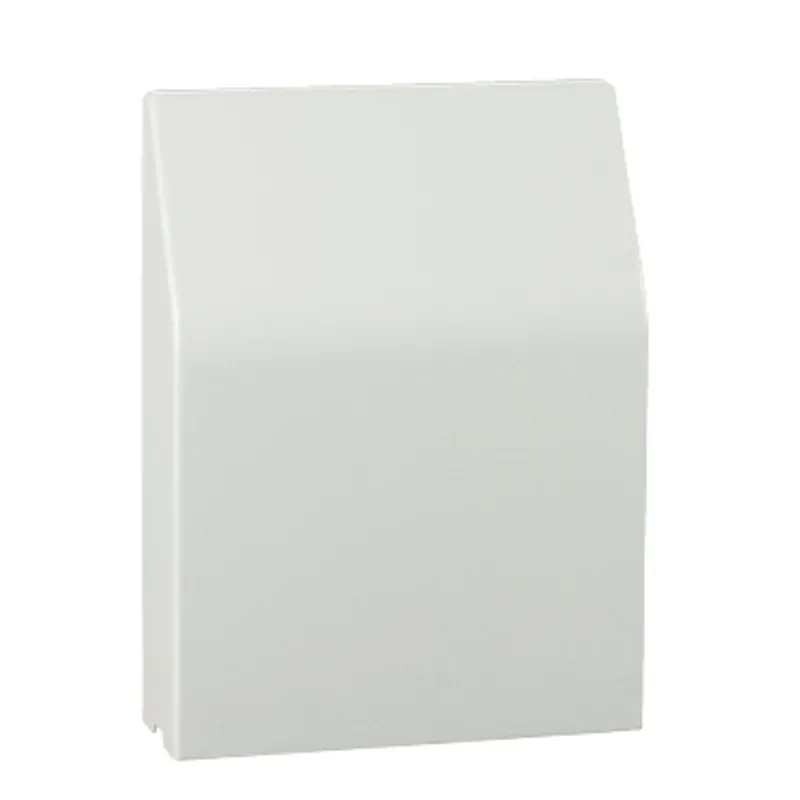

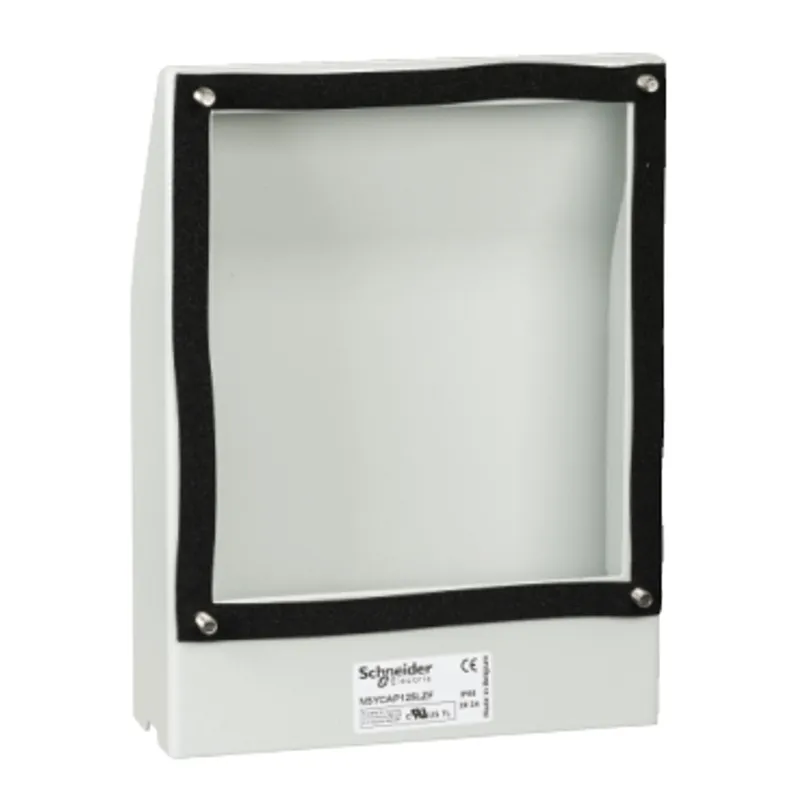

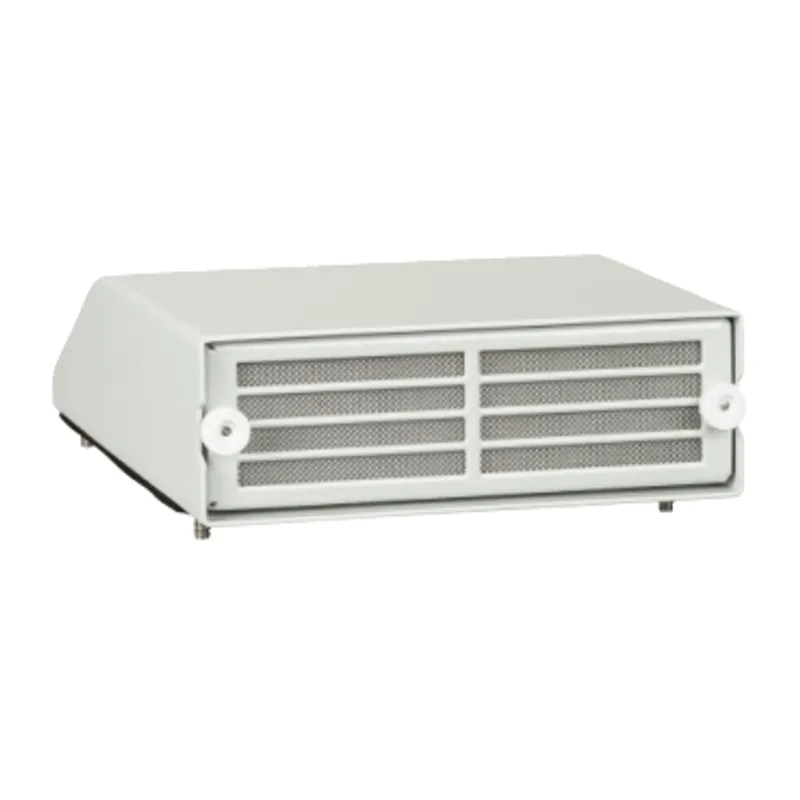

Painted steel cover cut-out 291x291mm with filter IP55
- MPN
- NSYCAP291LZF
- EAN
- 3606480151965
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYCAP291LZF?
"Sealing cover for ClimaSys CV EMC fan" "The product is made from grey painted steel (RAL 7035)" "The external width is 373mm" The external height is 430mm The external depth is 105mm Cut-out dimensions is 291 x 291mm Fixed by screws on enclosure The kit is made up of 1 cover and 1 filter Ingress protection rating is IP55 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CA |
| Product or component type | Sealing cover |
| Accessory / separate part category | Thermal management accessory |
| Mounting location | On enclosure |
| fixing mode | By screws |
| Range compatibility | ClimaSys ClimaSys CV EMC fan |
| Device composition | 1 cover, 1 filter |
| Material | Painted steel |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 291 x 291 mm |
| Height | External: 430 mm |
| Width | External: 373 mm |
| Depth | External : 105 mm |
| Certification | CSA |
| IP degree of protection | IP55 |
Packaging
| Package 1 | 1 PCE, 55.000 cm × 37.500 cm × 21.000 cm (L × W × H), 4.900 kg |
| Package 2 | 24 P12, 120.000 cm × 80.000 cm × 139.000 cm (L × W × H), 137.700 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCAP291LZF: frequently asked questions
When can NSYCAP291LZF be shipped?
NSYCAP291LZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAP291LZF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAP291LZF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAP291LZF, subject to availability and destination.
