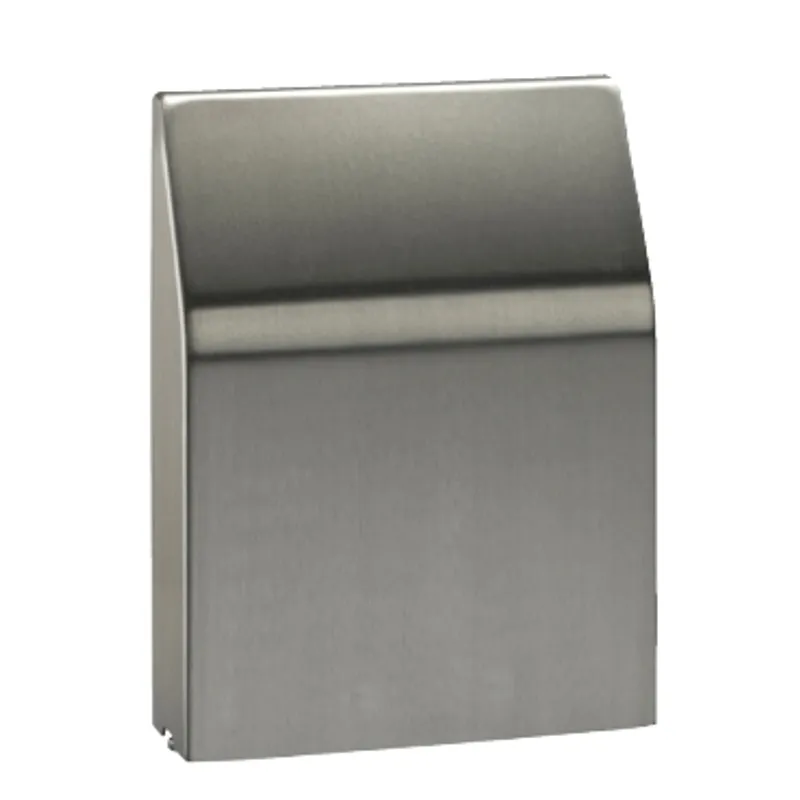

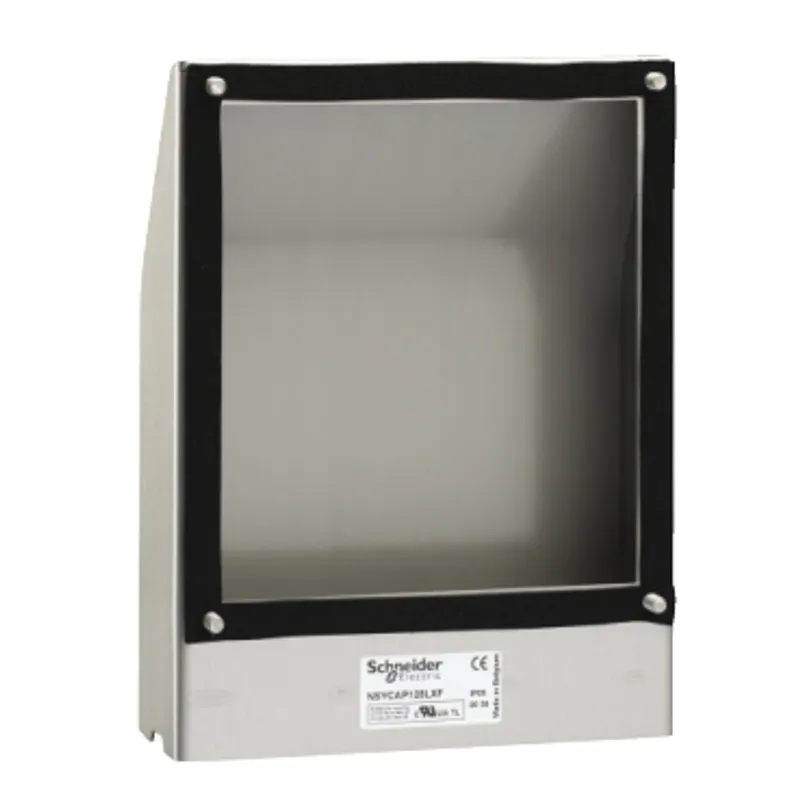

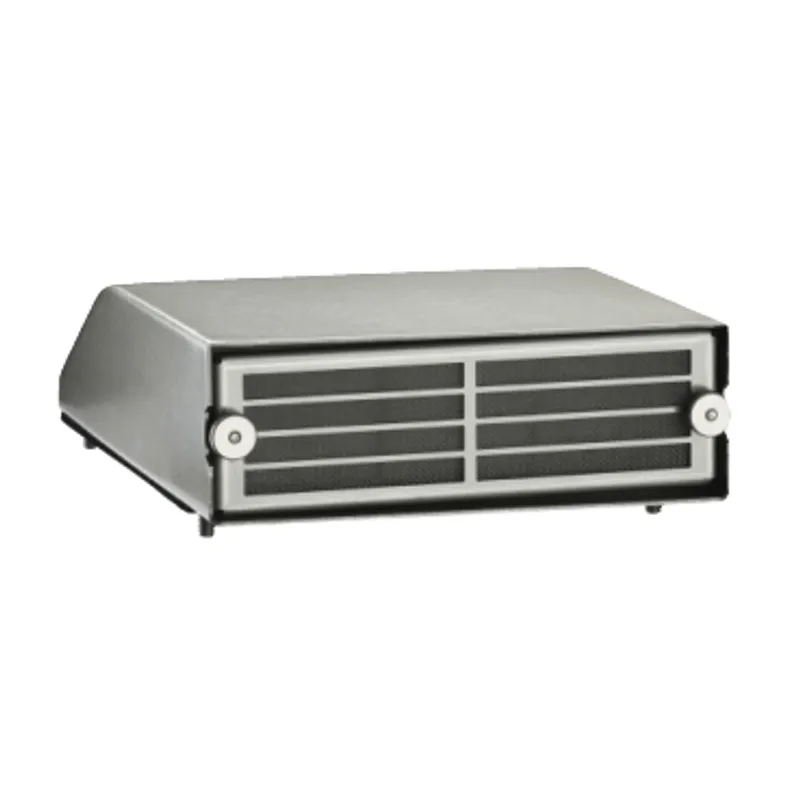

Schneider Electric NSYCAP223LXF
Stainless steel cover cut-out 125x125mm with filter IP55
- MPN
- NSYCAP223LXF
- EAN
- 3606480151989
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYCAP223LXF?
"Sealing cover for ClimaSys CV EMC fan" "The product is made from stainless steel 304" "The external width is 305mm" The external height is 350mm The external depth is 80mm Cut-out dimensions is 223 x 223mm Fixed by screws on enclosure The kit is made up of 1 cover and 1 filter Ingress protection rating is IP55 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CA |
| Product or component type | Sealing cover |
| Accessory / separate part category | Thermal management accessory |
| Mounting location | On enclosure |
| fixing mode | By screws |
| Range compatibility | ClimaSys ClimaSys CV EMC fan |
| Device composition | 1 cover, 1 filter |
| Material | Stainless steel 304 |
| Cut-out dimensions | 223 x 223 mm |
| Height | External: 350 mm |
| Width | External: 305 mm |
| Depth | External : 80 mm |
| Certification | CSA |
| IP degree of protection | IP55 |
Packaging
| Package 1 | 1 PCE, 15.500 cm × 33.500 cm × 37.000 cm (L × W × H), 3.060 kg |
| Package 2 | 42 P12, 120.000 cm × 80.000 cm × 120.000 cm (L × W × H), 143.520 kg |
