Schneider Electric NSYCAP291LE
EMC cover cut-out 291x291 with filter IP55
- MPN
- NSYCAP291LE
- EAN
- 3606480152023
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYCAP291LE (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYCAP291LE?

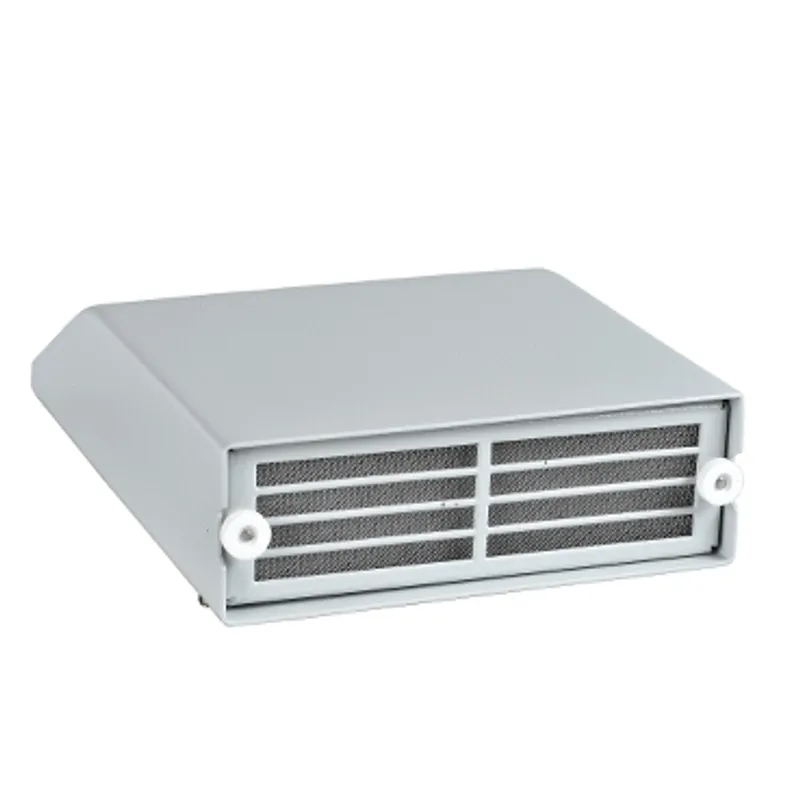

EMC sealing cover for ClimaSys CV EMC fan or Prisma P ClimaSys CV EMC fan or Prisma P The product is made from grey painted steel (RAL 7035) The external width is 373mm The external height is 430mm The external depth is 105mm Cut-out dimensions is 291 x 291mm Fixed by screws on enclosure The kit is made up of 1 cover and 1 filter Ingress protection rating is IP54
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CA |
| Product or component type | EMC sealing cover |
| Accessory / separate part category | Thermal management accessory |
| Mounting location | On enclosure |
| fixing mode | By screws |
| Range compatibility | ClimaSys ClimaSys CV EMC fan, Prisma Prisma P |
| Device composition | 1 cover, 1 filter |
| Material | Painted steel |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 291 x 291 mm |
| Height | External: 430 mm |
| Width | External: 373 mm |
| Depth | External : 105 mm |
| IP degree of protection | IP54 |
Packaging
| Package 1 | 1 PCE, 55.000 cm × 37.000 cm × 15.500 cm (L × W × H), 4.370 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 85.000 cm (L × W × H), 113.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCAP291LE: frequently asked questions
Can I still buy the NSYCAP291LE now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYCAP291LE, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYCAP291LE be shipped?
NSYCAP291LE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAP291LE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAP291LE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAP291LE, subject to availability and destination.
