Schneider Electric NSYAEFPFSC2

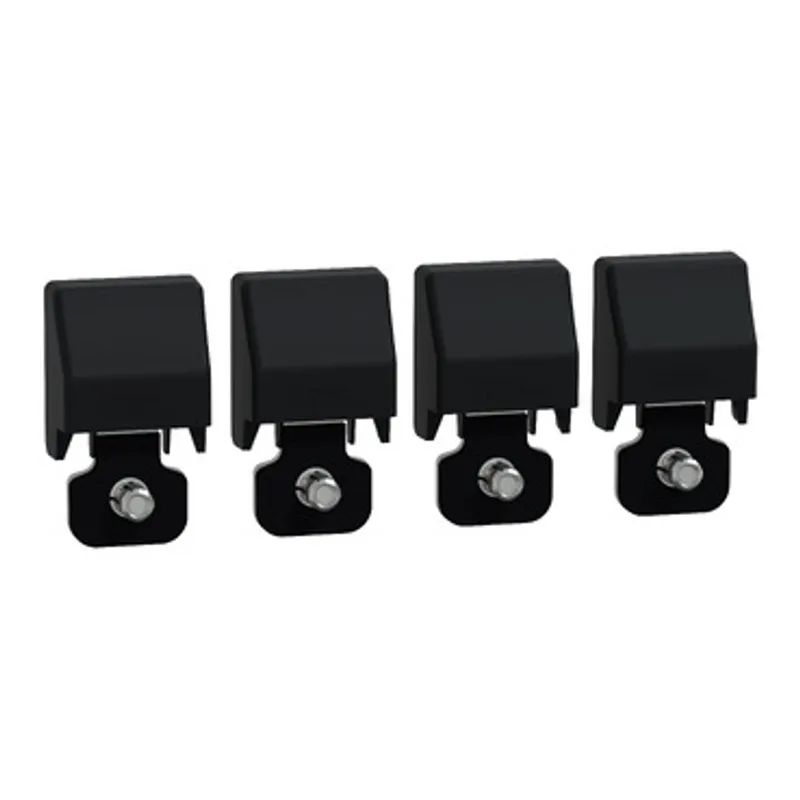

Set of 4 wall fixing brackets and cover for PanelSeT S3D
- MPN
- NSYAEFPFSC2
- EAN
- 3606481140975
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYAEFPFSC2?
Schneider Electric Set of 4 wall fixing brackets and cover for PanelSeT S3D, manufacturer part number NSYAEFPFSC2. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Fixing bracket |
| Device application | Multi-purpose |
| Mounting location | Rear of enclosure |
| Installation accessory type | Horizontal or vertical position |
| Mounting support | Wall |
| Range compatibility | PanelSeT S3D |
| Device composition | 4 fixing bracket, 4 cover |
| Quantity per set | Set of 1 |
| Material | Fixing bracket: steel, Cover: plastic |
| Colour | Cover: black, Fixing bracket: silver |
| Surface finish | Zinc plated |
| Fixing mode | By screws - screw type M6 |
| Permanent permissible load | 150 kg |
| Height | Real: 74 mm |
| Width | Real: 42 mm |
| Depth | Wall-enclosure separation : 12 mm, Wall-enclosure separation : 11.94 mm |
| Net weight | 0.358 kg |
Packaging
| Package 1 | 1 PCE, 20.000 cm × 11.500 cm × 5.000 cm (L × W × H), 358.000 g |
| Package 2 | 24 CAR, 42.000 cm × 35.000 cm × 24.000 cm (L × W × H), 9.175 kg |
| Package 3 | 600 P12, 120.000 cm × 80.000 cm × 107.000 cm (L × W × H), 244.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYAEFPFSC2: frequently asked questions
When can NSYAEFPFSC2 be shipped?
NSYAEFPFSC2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAEFPFSC2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAEFPFSC2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAEFPFSC2, subject to availability and destination.
