Schneider Electric NSYAEFPFSC

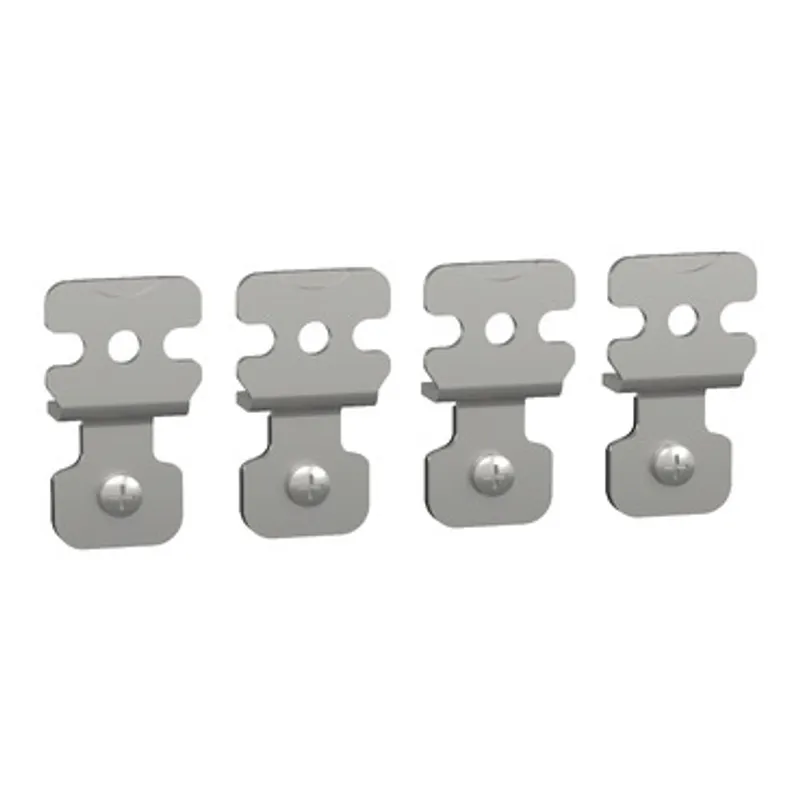

Set of 4 wall fixing lugs, made of steel. For PanelSeT S3D enclosure
- MPN
- NSYAEFPFSC
- EAN
- 3606480198984
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYAEFPFSC?
Wall fixing lugs for PanelSeT S3D. Made in steel with zinc coated finish. This set of 4 brackets is withstands static loads up to 250 kg. It is supplied with fixing screws and pre mounted sealing gaskets. To be mounted at the rear of the enclosure, in horizontal or vertical position. Permanent permissible load: 250 kg. Zinc coated finish. set of 1.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Rear of enclosure |
| Installation accessory type | Horizontal or vertical position |
| Range compatibility | PanelSeT S3D |
| Device composition | Fixing screws, 4 lug, 4 pre-mounted sealing gasket |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Passivated zinc coated |
| Fixing mode | Screwed - screw type M8, Screwed - screw type M6 |
| Permanent permissible load | 250 kg, 249.9 kg |
| Height | Real: 74 mm |
| Width | Real: 42 mm |
| Depth | Wall-enclosure separation : 12 mm |
| Net weight | 0.318 kg |
Packaging
| Package 1 | 1 PCE, 15.000 cm × 8.000 cm × 3.500 cm (L × W × H), 304.000 g |
| Package 2 | 40 CAR, 42.500 cm × 34.000 cm × 24.500 cm (L × W × H), 12.160 kg |
| Package 3 | 960 P12, 120.000 cm × 80.000 cm × 106.000 cm (L × W × H), 302.000 kg |
