Schneider Electric NSYAELYTCRXG8

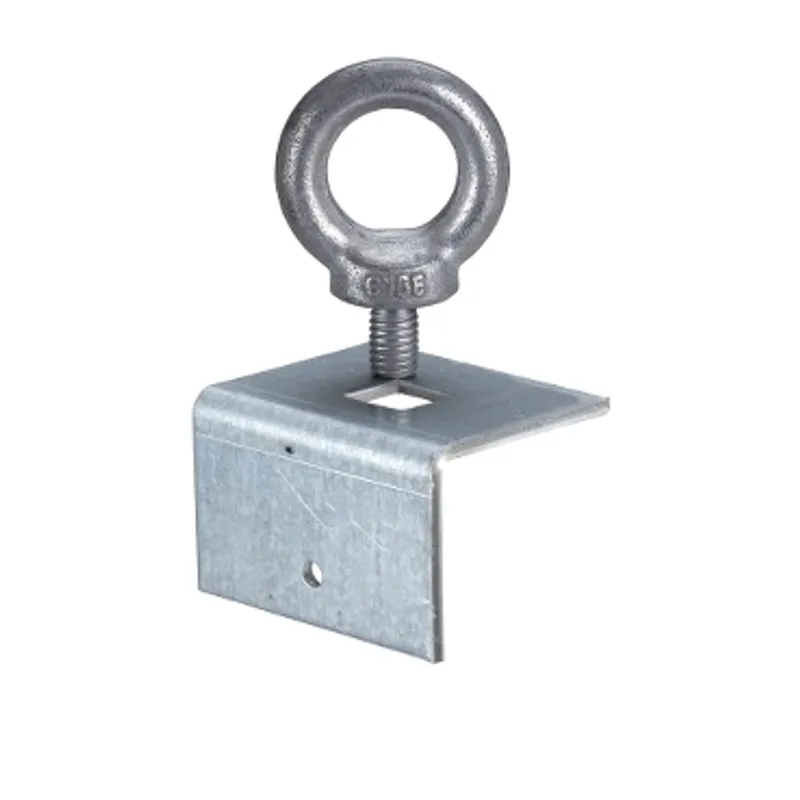

Set of 2 lifting eyes M8 - Stainless steel
- MPN
- NSYAELYTCRXG8
- EAN
- 3606489749095
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYAELYTCRXG8?
Set of M8 eyeboltss: stainless steel AISI 304 and bracketss: stainless steel AISI 304 for lifting and transporting of PanelSeT S3X, PanelSeT CRN, PanelSeT CRNG and PanelSeT S3D enclosures suites The kit is made of 2 eyebolts, 2 brackets, 2 washers, 2 nuts and fixing elements Maximum load is 210kg when slinging at 60°
Specifications
Specifications
| Area | PanelSeT |
| category | Lifting accessory |
| Product or component type | Lifting eye |
| Application | Multi-purpose |
| Mounting location | Enclosure top |
| Range compatibility | PanelSeT PanelSeT S3X, PanelSeT PanelSeT CRN, PanelSeT PanelSeT CRNG, PanelSeT PanelSeT S3D |
| Device composition | 2 eyebolt, 2 bracket, 2 washer, 2 nut, fixing elements |
| Quantity per set | Set of 1 |
| Material | Eyebolt: stainless steel AISI 304, Bracket: stainless steel AISI 304 |
| Fixing mode | Screwed |
| Permanent permissible load | 210 kg slinging at 60° |
| Height | 49 mm |
| Width | 36 mm |
| Depth | 20 mm |
| Diameter | 20 mm |
| ISO thread | M8 |
| Net weight | 0.24 kg |
Packaging
| Package 1 | 1 PCE, 14.200 cm × 9.000 cm × 6.000 cm (L × W × H), 240.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYAELYTCRXG8: frequently asked questions
When can NSYAELYTCRXG8 be shipped?
NSYAELYTCRXG8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAELYTCRXG8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAELYTCRXG8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAELYTCRXG8, subject to availability and destination.
