Schneider Electric
DZ5CEB007DCable ends, Linergy TR cable ends, single conductor, grey, 0.75 mm², for insulated cable, medium size, 1 bag

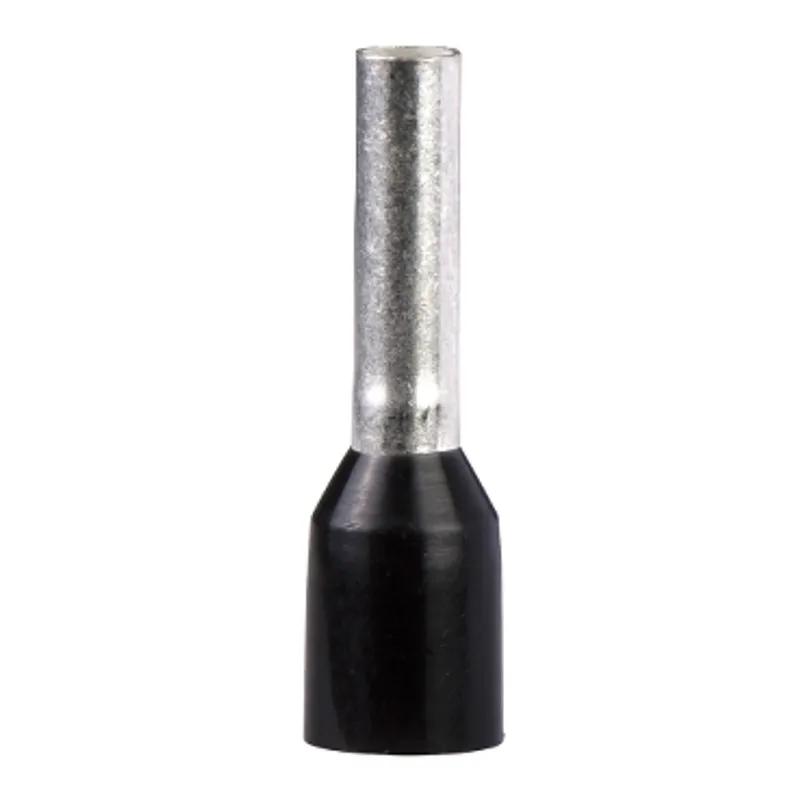

Schneider Electric DZ5CEB015D
Cable ends, Linergy TR cable ends, single conductor, black, 1.5mm², for insulated cable, medium size, 1 bag
- MPN
- DZ5CEB015D
- EAN
- 3389110178418
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric DZ5CEB015D?
Linergy cable end Single insulated without marker tag holder. It applied to single conductor with 1.5 mm² cable cross section. It has black surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 10 sets of 50. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | DIN 46228-4 |
| Type of packing | Bag |
| Quantity per set | 10 sets of 50 |
| Cable cross section | 1.5 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Black |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 16 |
| Bezel size | Ø 4 mm |
| Tube diameter | 2 mm |
| Length | 14 mm |
| Tube length | 8 mm |
| Net weight | 0.57 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 500 BB1, 23.000 cm × 4.000 cm × 1.500 cm (L × W × H), 57.000 g |
| Package 3 | 20000 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.664 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CEB015D: frequently asked questions
When can DZ5CEB015D be shipped?
DZ5CEB015D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CEB015D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CEB015D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CEB015D, subject to availability and destination.
