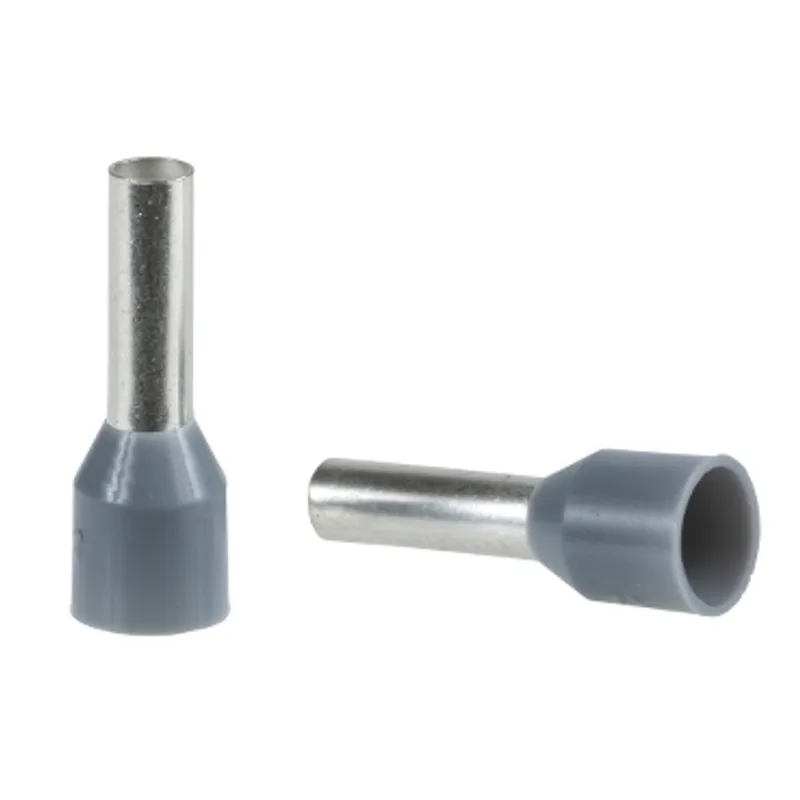

Schneider Electric DZ5CEB007D
Cable ends, Linergy TR cable ends, single conductor, grey, 0.75 mm², for insulated cable, medium size, 1 bag
- MPN
- DZ5CEB007D
- EAN
- 3389110178371
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original DZ5CEB007D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric DZ5CEB007D?
Linergy cable end Single insulated without marker tag holder. It applied to single conductor with 0.75 mm² cable cross section. It has grey surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 10 sets of 50. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is UL certified.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | DIN 46228-4 |
| Type of packing | Bag |
| Quantity per set | 10 sets of 50 |
| Cable cross section | 0.75 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Grey |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 20 |
| Bezel size | Ø 3.3 mm |
| Tube diameter | 1.5 mm |
| Length | 14 mm |
| Tube length | 8 mm |
| Net weight | 0.47 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 500 BB1, 21.000 cm × 7.000 cm × 1.500 cm (L × W × H), 46.000 g |
| Package 3 | 25000 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.744 kg |
