Schneider Electric DZ5CEB010D

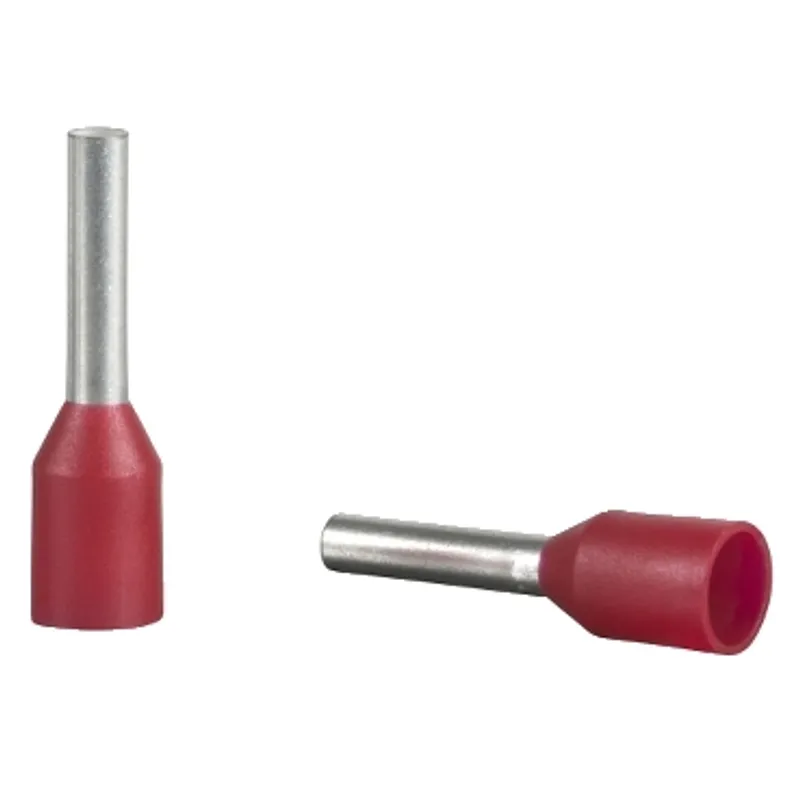

Cable ends, Linergy TR cable ends, single conductor, red, 1mm², Ferrules with sleeve, medium size, 1 bag
- MPN
- DZ5CEB010D
- EAN
- 3389110178395
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original DZ5CEB010D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric DZ5CEB010D?
Linergy cable end Single insulated without marker tag holder. It applied to single conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 10 sets of 50. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is UL certified.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | DIN 46228-4 |
| Type of packing | Bag |
| Quantity per set | 10 sets of 50 |
| Cable cross section | 1 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Red |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 18 |
| Bezel size | Ø 3.5 mm |
| Tube diameter | 1.7 mm |
| Length | 14 mm |
| Tube length | 8 mm |
| Net weight | 0.5 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 500 BB1, 22.000 cm × 4.000 cm × 1.500 cm (L × W × H), 51.000 g |
| Package 3 | 20000 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.411 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CEB010D: frequently asked questions
Can I still buy the DZ5CEB010D now that it is discontinued?
Yes. Schneider Electric has discontinued the DZ5CEB010D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can DZ5CEB010D be shipped?
DZ5CEB010D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CEB010D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CEB010D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CEB010D, subject to availability and destination.
