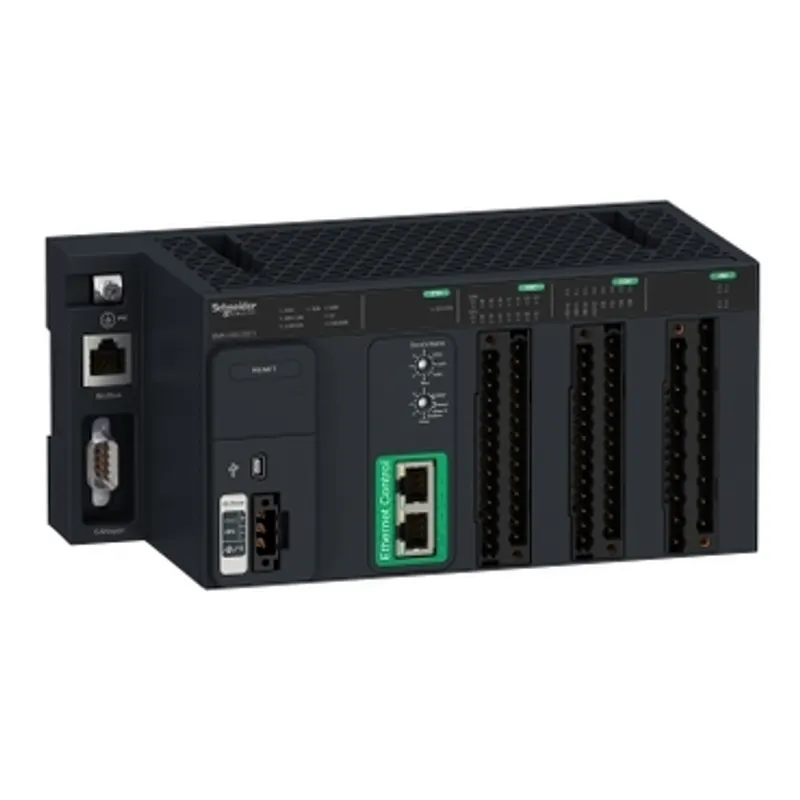

Schneider Electric BMKC8030311
Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI
- MPN
- BMKC8030311
- EAN
- 3606485445168
- Category
- Modicon MC80
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMKC8030311?
This controller is part of the Modicon MC80 range, an offer of powerful and cost-effective all-in-one compact controllers. The controller features 8 discrete inputs, 12 discrete outputs, and 4 analog inputs. With two high-speed counter channels, this controller is the most complete of its range. It features a dual Ethernet port with embedded switch to create flexible and scalable architectures without external switches. The MC80 controller has a Modbus Serial link port for easy integration of local instrumentation or a portable HMI. It weighs 1.15kg. This product is certified by CE, CSA No 213 Class I Division 2, UL, IEC, and CSA. The MC80 PLC is compatible with the BMXFTB terminal block with 20 or 28 pins. Modicon MC80 provides optimized operation, withstanding extreme conditions with high reliability and performance.
Specifications
Specifications
| Range of product | Modicon MC80 |
| Product or component type | Processor module |
| Product specific application | Thermo solar - tower power |
| Product compatibility | BMXFTB28... terminal block high-speed counter module, BMXFTB20... terminal block analog input module, BMXFTB28... terminal block discrete I/O module |
| [Us] rated supply voltage | 24 V - 15...20 % DC |
| Current consumption | <= 700 mA |
| Isolation voltage | 1500 V DC |
| Memory description | Internal RAM 3840 kB, Internal RAM 128 kB data, Internal RAM 3590 kB program constants and symbols |
| Execution time per instruction | 0.06 µs Boolean, 0.08 µs mixed |
| Realtime clock | With |
| Function available | Memory retention without battery |
| Communication port protocol | 1 non isolated serial link, connector type: RJ45, communication port: RS485/RS232, transmission rate: 0.3...19.2 kbit/s for connecting 247 devices, 1 CANopen, connector type: SUB-D 9, transmission rate: 20 kbit/s...1 Mbit/s for connecting 16 devices, 2 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s |
| Integrated connection type | USB port: mini B USB connector |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Bus length | 0…10 m serial link non isolated, 0…15 m serial link non isolated, 0…1000 m serial link isolated with external isolation tap, 0…20 m, transmission rate: 1 Mbit/s, communication port: CANopen, 0…2500 m, transmission rate: 20 kbit/s, communication port: CANopen, 0…100 m, communication port: Ethernet |
| Communication service | Read/write variables for Modbus, Diagnostics for Modbus, Send/receive character string for character mode, Process Data Object (PDO) for CANopen, Service Data Object (SDO) for CANopen, FDR client for Ethernet, SNMP for Ethernet, RSTP support for Ethernet |
| Number of counter | 2 |
| Maximum counting frequency | 60000 Hz |
| Counter functions | Count events, Frequency meter, Ratio count, One shot counting, Measure time periods, Freelarge counting, Loop (modulo) counting |
| Number of inputs for counter | 3 auxiliary, 3 high speed |
| Logic input for counter | Positive (sink) |
| Sensor power supply for counter | 19…30 V DC |
| Input compatibility for counter | 24 V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10...30 V totem pole, 24 V 2/3-wire sensor PNP |
| Number of outputs for counter | 2 positive |
| Nominal output current for counter | 0.5 A per output |
| Discrete input number | 8 positive logic (sink) |
| Discrete input type | Type 3 |
| Discrete input current | 2.4 mA |
| Discrete input voltage | 19...30 V DC |
| Discrete output number | 12 positive |
| Discrete output current | 2 A per output, 10 A per module |
| Discrete output voltage | 19...30 V DC |
| Protection type | Overload protection for output, Short-circuit protection for output |
| Analogue input number | 4 |
| Analogue input type | Current, input range: - 20...20 mA, Voltage, input range: - 10...10 V |
| Fast read cycle time for analogue input | 1.3 ms + 1.3 ms x number of channels used |
| Nominal read cycle time for analogue input | 6.5 ms for 4 channels |
| Analogue input resolution | 16 bits |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % |
| vibration resistance | 3 gn |
| Marking | CE |
| Standards | UL 508, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group B |
| Product certifications | RCM |
Packaging
| Package 1 | 1 PCE, 27.300 cm × 12.000 cm × 14.500 cm (L × W × H), 1.304 kg |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.452 kg |
