Modicon MC80 Parts
Compare Modicon MC80
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product specific application | Discrete input current | Discrete output number | Discrete output current |
|---|---|---|---|---|

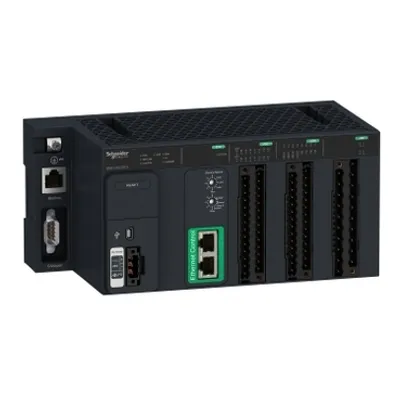

| BMKC8030311 | Thermo solar - tower power | 2.4 mA | 12 positive | 2 A per output, 10 A per module |

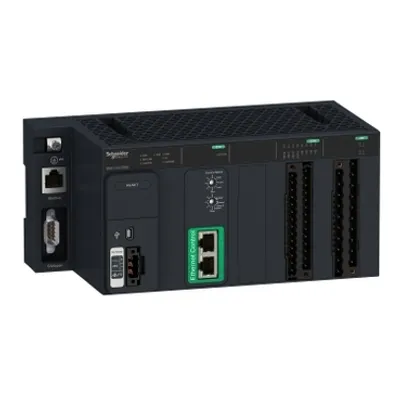

| BMKC8020301 | Thermo solar - parabolic through | 2.4 mA | 12 positive | 2 A per output, 10 A per module |

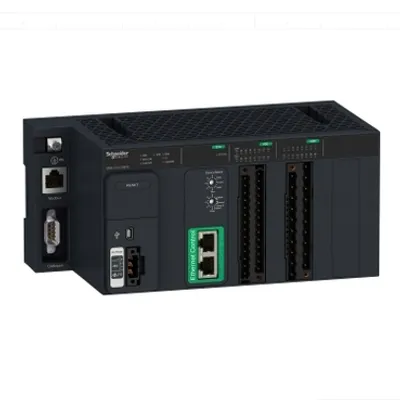

| BMKC8020310 | Thermo solar - tower power | 5 mA | 8 positive | 500 mA per output |
Common to all listed parts
| Range of product | Modicon MC80 |
| Product or component type | Processor module |
| [Us] rated supply voltage | 24 V - 15...20 % DC |
| Current consumption | <= 700 mA |
| Isolation voltage | 1500 V DC |
| Execution time per instruction | 0.06 µs Boolean, 0.08 µs mixed |
| Realtime clock | With |
| Function available | Memory retention without battery |
