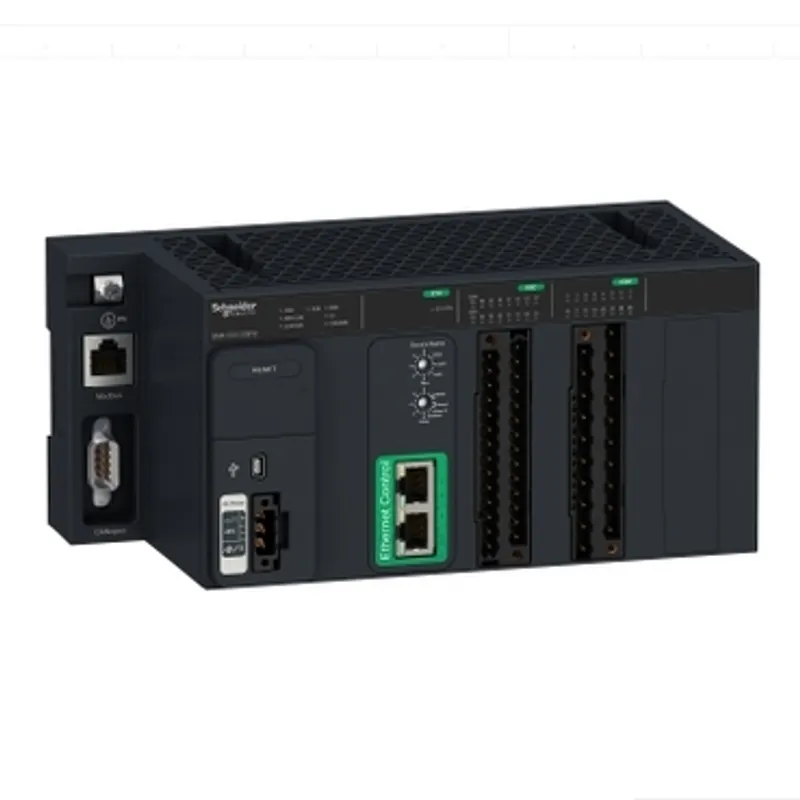

Schneider Electric BMKC8020310
Modicon MC80, Controller, 8 DI, 8 DO, 2 HSC
- MPN
- BMKC8020310
- EAN
- 3606480711404
- Category
- Modicon MC80
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMKC8020310?
This controller is part of the Modicon MC80 range, an offer of compact processors. It features 8 discrete inputs and 8 discrete outputs, It does not support analog inputs. It provides Modbus, CANopen, and Ethernet connection. It has a 24 V power consumption. EcoStruxure Control Expert programming software is required to set up the Modicon MC80 controller. It weighs 0.980kg. It is fit for thermo solar and tower power applications. Modicon MC80 PLCs comply to IEC, UL, and CSA standards. It is compatible with terminal blocks for high-speed counter and discrete I/O modules. MC80 PLC can be mounted on DIN rails of 35mm wide or on panels. MC80 controllers are completely integrated with the other Modicon controllers, programmed and commissioned with EcoStruxure Control Expert. Modicon MC80 range features automated platform processors which are compact with discrete I/O functions, analog input functions, counting functions, and communication functions.
Specifications
Specifications
| Range of product | Modicon MC80 |
| Product or component type | Processor module |
| Product specific application | Thermo solar - tower power |
| Product compatibility | BMXFTB28... terminal block high-speed counter module, BMXFTB20... terminal block discrete I/O module |
| [Us] rated supply voltage | 24 V - 15...20 % DC |
| Current consumption | <= 700 mA |
| Isolation voltage | 1500 V DC |
| Memory description | Internal RAM 3840 kB, Internal RAM 128 kB data, Internal RAM 3590 kB program constants and symbols |
| Execution time per instruction | 0.06 µs Boolean, 0.08 µs mixed |
| Realtime clock | With |
| Function available | Memory retention without battery |
| Communication port protocol | 1 non isolated serial link, connector type: RJ45, communication port: RS485/RS232, transmission rate: 0.3...19.2 kbit/s for connecting 247 devices, 1 CANopen, connector type: SUB-D 9, transmission rate: 20 kbit/s...1 Mbit/s for connecting 16 devices, 2 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s |
| Integrated connection type | USB port: mini B USB connector |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Bus length | 0…10 m serial link non isolated, 0…15 m serial link non isolated, 0…1000 m serial link isolated with external isolation tap, 0…20 m, transmission rate: 1 Mbit/s, communication port: CANopen, 0…2500 m, transmission rate: 20 kbit/s, communication port: CANopen, 0…100 m, communication port: Ethernet |
| Communication service | Read/write variables for Modbus, Diagnostics for Modbus, Send/receive character string for character mode, Process Data Object (PDO) for CANopen, Service Data Object (SDO) for CANopen, FDR client for Ethernet, SNMP for Ethernet, RSTP support for Ethernet |
| Number of counter | 2 |
| Maximum counting frequency | 60000 Hz |
| Counter functions | Count events, Ratio count, Frequency meter, One shot counting, Measure time periods, Loop (modulo) counting, Freelarge counting |
| Number of inputs for counter | 3 auxiliary, 3 high speed |
| Logic input for counter | Positive (sink) |
| Sensor power supply for counter | 19…30 V DC |
| Input compatibility for counter | 24 V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10...30 V totem pole, 24 V 2/3-wire sensor PNP |
| Number of outputs for counter | 2 positive |
| Nominal output current for counter | 0.5 A per output |
| Discrete input number | 8 positive logic (sink) |
| Discrete input type | Type 3 |
| Discrete input current | 5 mA |
| Discrete input voltage | 19...30 V DC |
| Discrete output number | 8 positive |
| Discrete output current | 500 mA per output |
| Discrete output voltage | 19...30 V DC |
| Protection type | Overload protection for output, Short-circuit protection for output |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % |
| vibration resistance | 3 gn |
| Marking | CE |
| Standards | CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group D, UL 508, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group B, IEC 61131-2 |
| Product certifications | RCM |
Packaging
| Package 1 | 1 PCE, 27.500 cm × 12.000 cm × 14.200 cm (L × W × H), 1.195 kg |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.826 kg |
