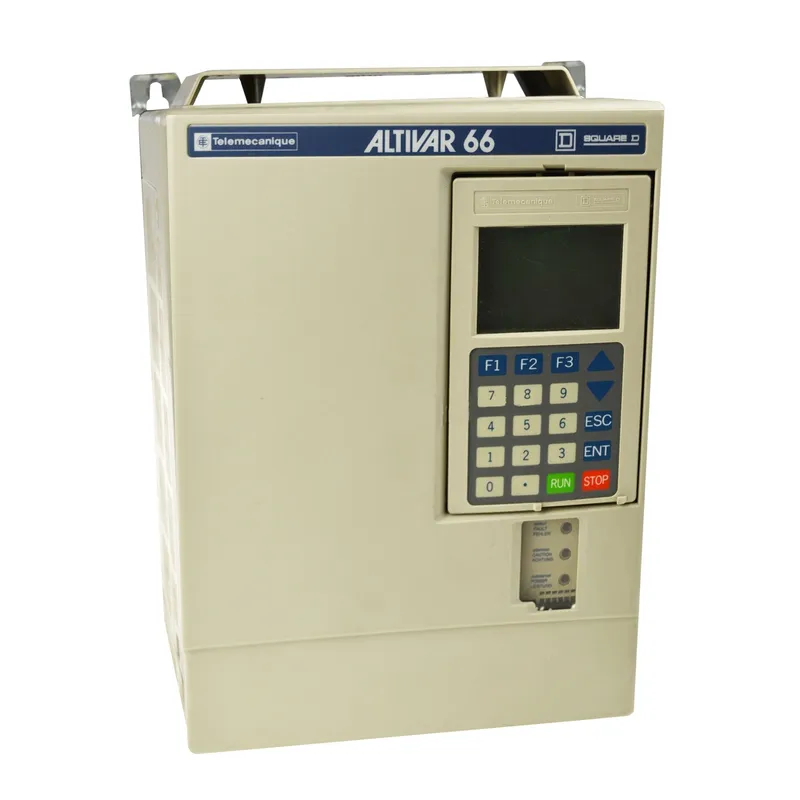

Schneider Electric ATV66FU90N4
Adjustable speed drive ATV66 CVF 9.0KVA 400/460V
- MPN
- ATV66FU90N4
- Category
- Altivar 66
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original ATV66FU90N4 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ATV66FU90N4?
Schneider Electric ATV66FU90N4 — adjustable speed drive ATV66 CVF 9.0KVA 400/460V. Discontinued by Schneider Electric; the manufacturer's successor is VW3A3401. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Altivar 66 |
| Product or component type | Variable speed drive |
Complementary
| Product destination | Asynchronous motors |
| [Us] rated supply voltage | 380...460 V - 10...10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Network number of phases | 3 phases |
| Motor power kW | 7.5 kW at 380...460 V |
| Motor power hp | 10 hp |
| Line current | 17 A at 380 V; 13.2 A at 460 V |
| Apparent power | 9 kVA at 400 V |
| Continuous output current | 13 A at 400 V |
| Output frequency | 0…0.3 kHz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 4...8 kHz with current derating; <= 4 kHz |
| Local signalling | 1 graphic display terminal |
| Output voltage | 400 V |
| Communication port protocol | Modbus |
| Physical interface | RS485 multidrop serial link |
| Transmission rate | 9.6...19.2 kbauds |
| Height | 325 mm |
| Width | 234 mm |
| Depth | 195 mm |
| Option card | Communication card for Profibus DP; Communication card for CANopen; Communication card for DeviceNet; Communication card for Ethernet; Communication card for Fipio; Communication card for Uni-Telway; Communication card for Interbus-S; Communication card for Modbus Plus; Communication card for AS-Interface |
Environment
| IP degree of protection | IP00 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m; > 1000...2000 m 1 % per 100 m |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ATV66FU90N4: frequently asked questions
Can I still buy the ATV66FU90N4 now that it is discontinued?
Yes. Schneider Electric has discontinued the ATV66FU90N4, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the VW3A3401 as its successor — we can quote both.
When can ATV66FU90N4 be shipped?
ATV66FU90N4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ATV66FU90N4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ATV66FU90N4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV66FU90N4, subject to availability and destination.
