Altivar 66 Parts
Schneider Electric

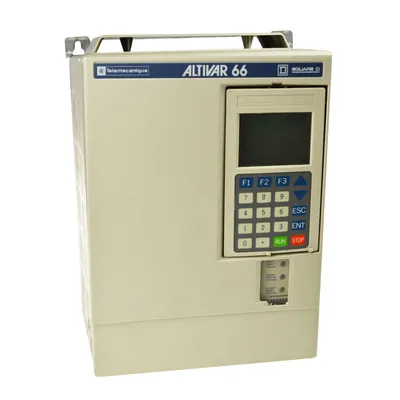

ATV66U90N4Adjustable speed drive ATV-66U with heat sink - 7.5 kW - without EMC filter
Schneider Electric
ATV66U72N4Adjustable speed drive ATV-66U with heat sink - 5.5 kW - without EMC filter
Compare Altivar 66
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor power kW | Line current | Apparent power | Continuous output current | Height |
|---|---|---|---|---|---|
| ATV66U90N4S244G | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4S244F | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4S244E | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4S244 | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4S | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4G | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4F | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4E | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U90N4 | 7.5 kW at 380...460 V | 34.7 A at 380 V; 30 A at 460 V | 9 kVA at 400 V | 24.2 A at 400 V | 325 mm |
| ATV66U72N4S244S | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U72N4S244G | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U72N4S244 | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U72N4S244F | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U72N4S | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U72N4G | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U72N4F | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U72N4E | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U54N4S244S | 4 kW at 380...460 V | 17.2 A at 380 V; 15 A at 460 V | 5.4 kVA at 400 V | 7.8 A at 400 V | 295 mm |
| ATV66U72N4 | 5.5 kW at 380...460 V | 24.4 A at 380 V; 19.5 A at 460 V | 7.2 kVA at 400 V | 10.5 A at 400 V | 295 mm |
| ATV66U54N4S244G | 4 kW at 380...460 V | 17.2 A at 380 V; 15 A at 460 V | 5.4 kVA at 400 V | 7.8 A at 400 V | 295 mm |
| ATV66U54N4S244E | 4 kW at 380...460 V | 17.2 A at 380 V; 15 A at 460 V | 5.4 kVA at 400 V | 7.8 A at 400 V | 295 mm |
| ATV66U54N4S244F | 4 kW at 380...460 V | 17.2 A at 380 V; 15 A at 460 V | 5.4 kVA at 400 V | 7.8 A at 400 V | 295 mm |
| ATV66U54N4S244 | 4 kW at 380...460 V | 17.2 A at 380 V; 15 A at 460 V | 5.4 kVA at 400 V | 7.8 A at 400 V | 295 mm |
| ATV66U54N4S | 4 kW at 380...460 V | 17.2 A at 380 V; 15 A at 460 V | 5.4 kVA at 400 V | 7.8 A at 400 V | 295 mm |
Common to all listed parts
| Range of product | Altivar 66 |
| Product or component type | Variable speed drive |
| Product destination | Asynchronous motors |
| [Us] rated supply voltage | 380...460 V - 10...10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Network number of phases | 3 phases |
| Output frequency | 0…0.3 kHz |
