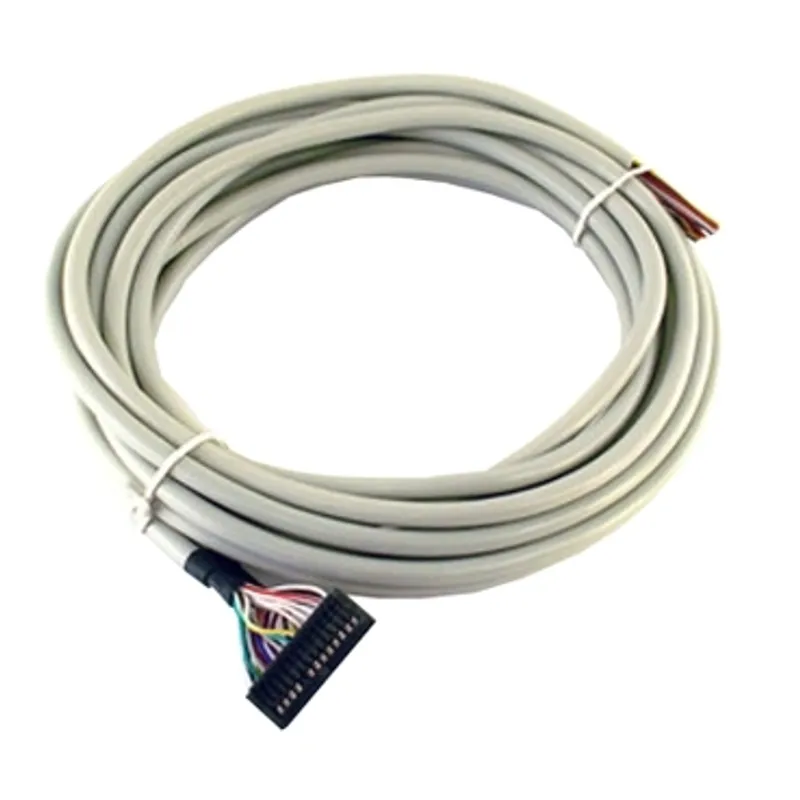

Schneider Electric ABFTE20SP300
Connection cable - Twido discrete output to Telefast - 2 x HE10 - 3 m
- MPN
- ABFTE20SP300
- EAN
- 3389110393774
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABFTE20SP300?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a connection cable between plc and passive and relay sub-bases with 16 channels." "It is pre-equipped with one1 connector 20-way HE10 at sensor side and 1 connector 20-way HE10 at plc side." "It is used to connect the digital outputs between ABE7 sub-bases and Modicon M221 and Twido PLCs, and Modicon TM3 modules" "It measures 3m." "It weighs 0.210kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "It is suitable for use with TWDDDO16TK, TWDDDO32TK, TM221M32TK, TM221ME32TK, TM3DQ16TK, TM3DQ32TK." "It is delivered in 1 package (PCE type)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Twido |
| Accessory / separate part designation | Discrete output pre-formed cable |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Discrete output |
| Product specific application | For application other than use of Advantys Telefast ABE7 sub-base |
| Product compatibility | TWDDDO16TK, TWDDDO32TK |
| Cable length | 3 m |
| AWG gauge | AWG 28 |
| Cable cross section | 0.08 mm² |
| Electrical connection | 1 connector HE10 20 pin(s) preactuator side, 1 connector HE10 20 pin(s) Twido side |
| Net weight | 0.21 kg |
Packaging
| Package 1 | 1 PCE, 20.000 cm × 18.400 cm × 3.900 cm (L × W × H), 193.000 g |
| Package 2 | 10 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.222 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ABFTE20SP300: frequently asked questions
When can ABFTE20SP300 be shipped?
ABFTE20SP300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABFTE20SP300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABFTE20SP300 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABFTE20SP300, subject to availability and destination.
