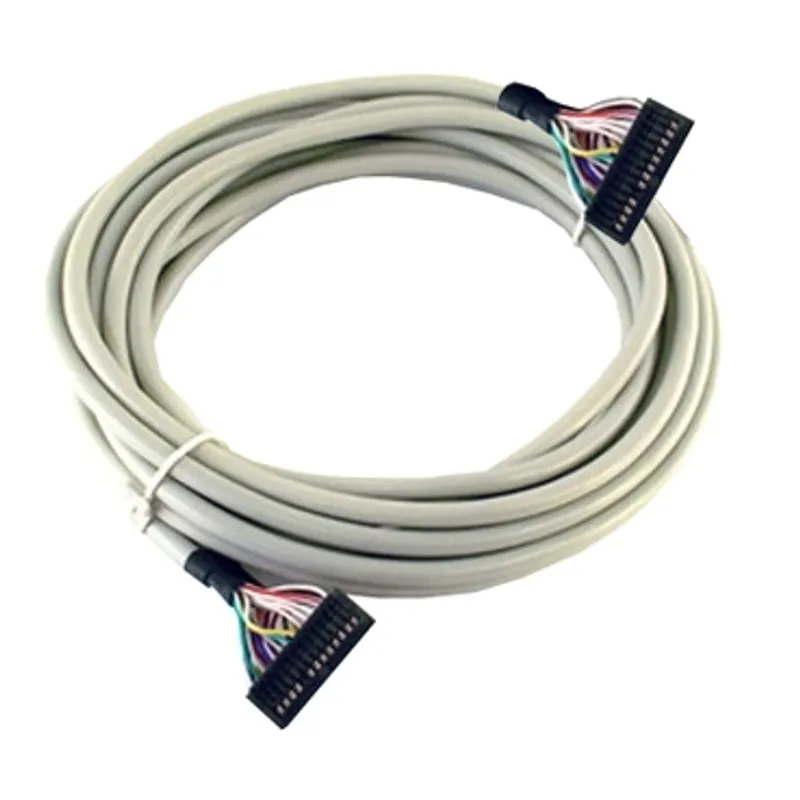

Schneider Electric ABFTE20EP300
Connection cable - Twido discrete input to Telefast - 2 x HE10 - 3 m
- MPN
- ABFTE20EP300
- EAN
- 3389110393569
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABFTE20EP300?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a connection cable between plc and passive and relay sub-bases with 16 channels." "It is pre-equipped with one1 connector 20-way HE10 at sensor side and 1 connector 20-way HE10 at plc side." "It is used to connect the digital inputs between ABE7 sub-bases and Modicon M221 and Twido PLCs, and Modicon TM3 modules." "It measures 3m." "It weighs 0.210kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "It is suitable for use with TM221M32TK, TM221ME32TK, TM3DI16K, TM3DI32K, TWDDDI32DK,TWDDDI16DK." "It is delivered in 1 package (PCE type)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Twido |
| Accessory / separate part designation | Discrete input pre-formed cable |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Discrete input |
| Product specific application | For application other than use of Advantys Telefast ABE7 sub-base |
| Product compatibility | TWDDDI32DK, TWDDDI16DK |
| Cable length | 3 m |
| AWG gauge | AWG 28 |
| Cable cross section | 0.08 mm² |
| Electrical connection | 1 connector HE10 20 pin(s) sensor side, 1 connector HE10 20 pin(s) Twido side |
| Net weight | 0.21 kg |
Packaging
| Package 1 | 1 PCE, 16 cm × 20 cm × 2 cm (L × W × H), 192 g |
| Package 2 | 10 S02, 40 cm × 30 cm × 15 cm (L × W × H), 2.255 kg |
