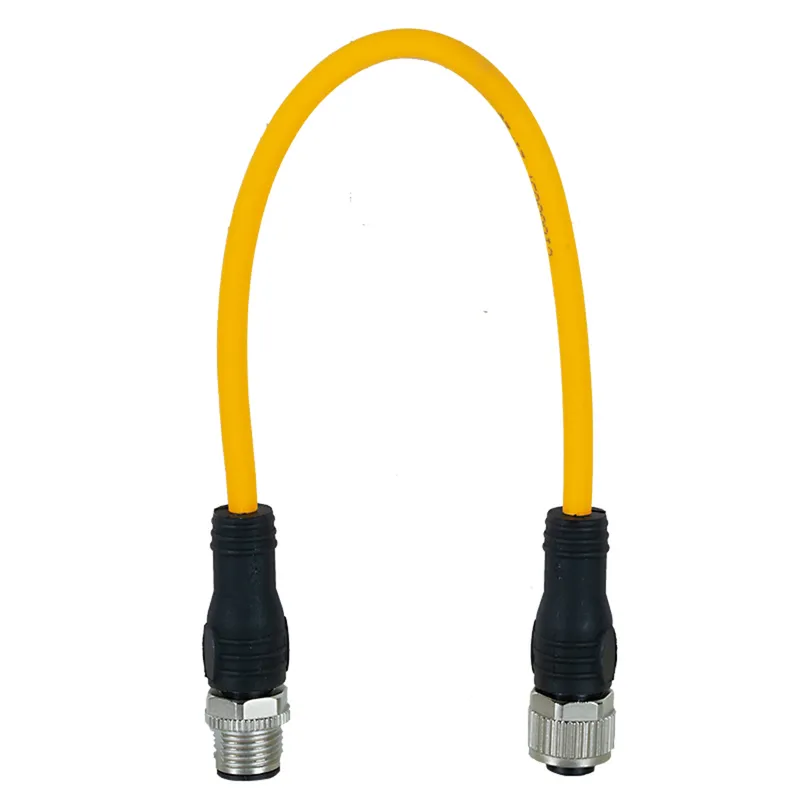

What is the Pilz C1000057?
Adapter, 4-pin M12 male connector on 12-pin M12 female connector, overall length 250 +/-50 mm
Specifications
General data
| Product ID (Pilz order number) | C1000057 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 1.5 |
| Typ. conductor resistance K1 | max. 100 Ohm/km (20 °C) |
Environmental data
| Ambient temperature | -40 … 80 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connector type 1 | 12-pin M12 female connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 4-pin M12 male connector |
| Shape of connector type 2 | straight |
| Coding of M12 connector 2 | A coded |
| Matl threaded ring conn 1 | Zn, nickel-plated |
| Matl threaded ring conn 2 | Zn, nickel-plated |
| Contact surfaces material 1 | CuZn, Ni b/Au 0.2 gal. |
| Contact surfaces material 2 | CuZn, Ni b/Au 0.2 gal. |
| Seal material | FKM |
| Material of sockets | CuSn |
| Cable material K1 | Cu |
| Insulation material cable K1 | XLPE |
| Cable type K1 | LiF9Y11Y |
| Length cable | 0.25 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Housing colour | Black |
| Material of cable insulation 1 | PUR |
| Trailing capability of cable 1 | yes |
| Bend radius (when laying) K1 | 5 x Ø |
| Max. outside diameter cable K1 | 5 |
| Conductor cross section | 0.25 |
| Cable cross section AWG K1 | 24 |
| Shielding K1 | no |
| Number of conductors | 4 |
| Approvals for cable K1 | UL AWM-Style 20233, UL/CSA |
| Approvals for connector 1 | UL 94 HB |
| Approvals for connector 2 | UL 94 HB |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | CSA FT-2, UL VW1 |
| Torque interlocking screw | 0.4 Nm |
| Height dimension | 155 mm |
| Width dimension | 90 mm |
| Depth dimension | 5 mm |
| Net weight | 22 g |
| Gross weight | 25 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440106 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002925 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548105100 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
C1000057: frequently asked questions
When can C1000057 be shipped?
C1000057 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C1000057 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C1000057 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C1000057, subject to availability and destination.
