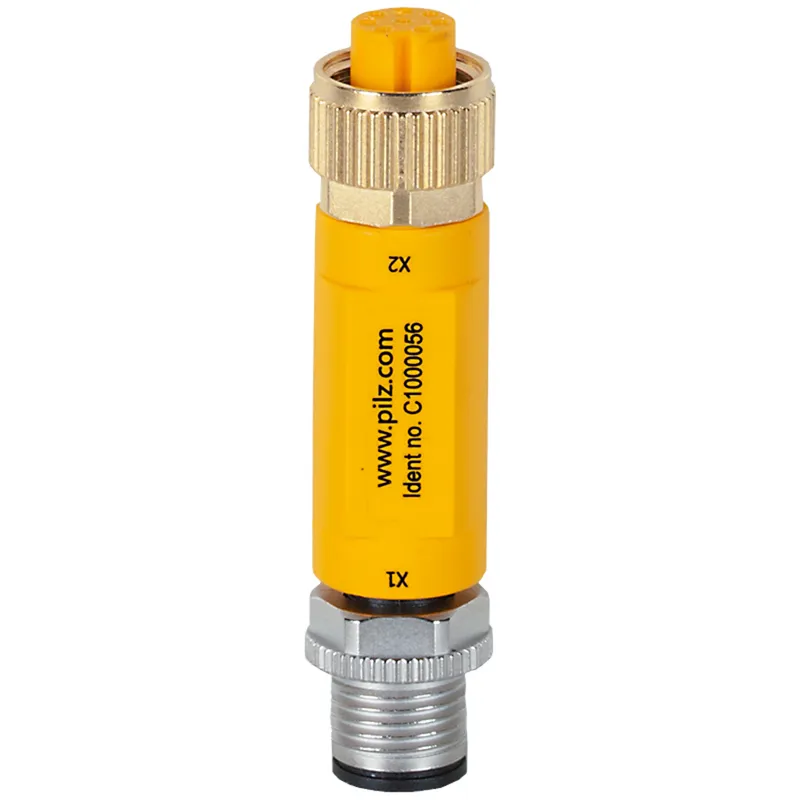

What is the Pilz C1000056?
I-adapter for connecting a PSENcode to the PITgatebox IOLS, 8-pin M12 female connector, straight, A-coded on 8-pin M12 male connector, straight, A-coded
Specifications
General data
| Product ID (Pilz order number) | C1000056 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 2 |
Environmental data
| Ambient temperature | -25 … 85 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connector type 1 | 8-pin M12 male connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 8-pin M12 female connector |
| Shape of connector type 2 | straight |
| Coding of M12 connector 2 | A coded |
| Matl threaded ring conn 1 | Zn, nickel-plated |
| Contact surfaces material 1 | CuZn, gold-plated |
| Seal material | FKM |
| Material of pins | CuZn, gold-plated |
| Material of sockets | CuZn, gold-plated |
| Halogen-free | no |
| Flame resistance | FT2 |
| Housing material | TPU |
| Net weight | 17 g |
| Gross weight | 19 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | < 4 % |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440106 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002925 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548104882 |
| Volume | 0 dm3 |
| Harmonized System Code | 85369010 |
