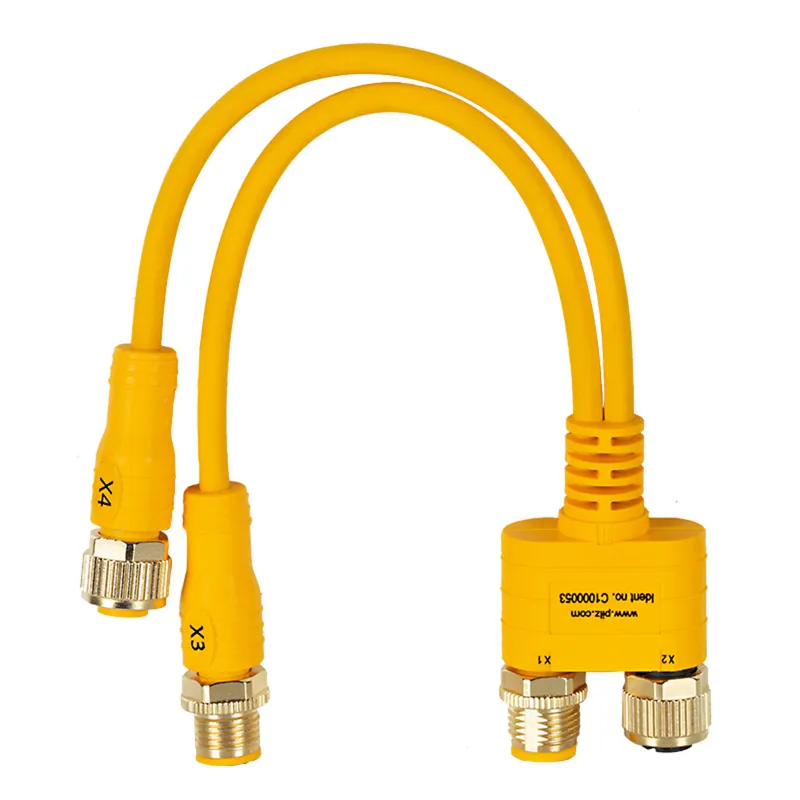

What is the Pilz C1000053?
Adapter to connect series-connectable PILZ sensors to PITgatebox IOLS, 4-pin M12 female connector, straight, A-coded and 8-pin M12 male connector, straight, A-coded to 8-pin M12 male connector, straight, A- coded, and 8-pin M12 female connector, straight, A-coded, cable length: 0.15 m
Specifications
General data
| Product ID (Pilz order number) | C1000053 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 2 |
| Typ. conductor resistance K1 | 87.5 Ohm/km |
| Typ. conductor resistance K1 | 87.5 Ohm/km |
Environmental data
| Ambient temperature | -40 … 80 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connector type 1 | 8-pin M12 male connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 8-pin M12 female connector |
| Shape of connector type 2 | straight |
| Coding of M12 connector 2 | A coded |
| Connector type 3 | 8-pin M12 male connector |
| Shape of connector type 3 | straight |
| Coding of M12 connector 3 | A coded |
| Housing material connector 3 | TPU |
| Housing material connector 4 | TPU |
| Contact surfaces material 1 | CuZn, gold-plated |
| Seal material | FKM |
| Material of pins | CuZn |
| Material of sockets | CuZn |
| Cable material K1 | Cu |
| Cable material K2 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Insulation material cable K2 | PP (9Y) |
| Length cable | 0.15 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Colour cable insulation 2 | Signal yellow RAL1003 |
| Material of cable insulation 1 | PUR |
| Material of cable insulation 2 | PUR |
| Trailing capability of cable 1 | no |
| Trailing capability of cable 2 | No |
| Bend radius constant motion K2 | 10 x Ø |
| Max. outside diameter cable K1 | 5.1 |
| Conductor cross section | 0.25 |
| Cable cross section AWG K1 | 24 |
| Cable cross section AWG K2 | 24 |
| Shielding K1 | no |
| Shielding K2 | No |
| Number of conductors | 4 |
| Approvals for cable K1 | UL AWM-Style 20233 |
| Approvals for cable K2 | UL AWM-Style 20233 |
| Approvals for connector 1 | UL 94 HB |
| Approvals for connector 2 | UL 94 HB |
| Approvals for connector 3 | UL 94 HB |
| Approvals for connector 4 | UL 94 HB |
| Halogen-free | no |
| Oil resistance | resistant |
| Flame resistance | UL FT2 |
| Net weight | 54 g |
| Gross weight | 57 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | < 4 % |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440106 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002925 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548104851 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444210 |
