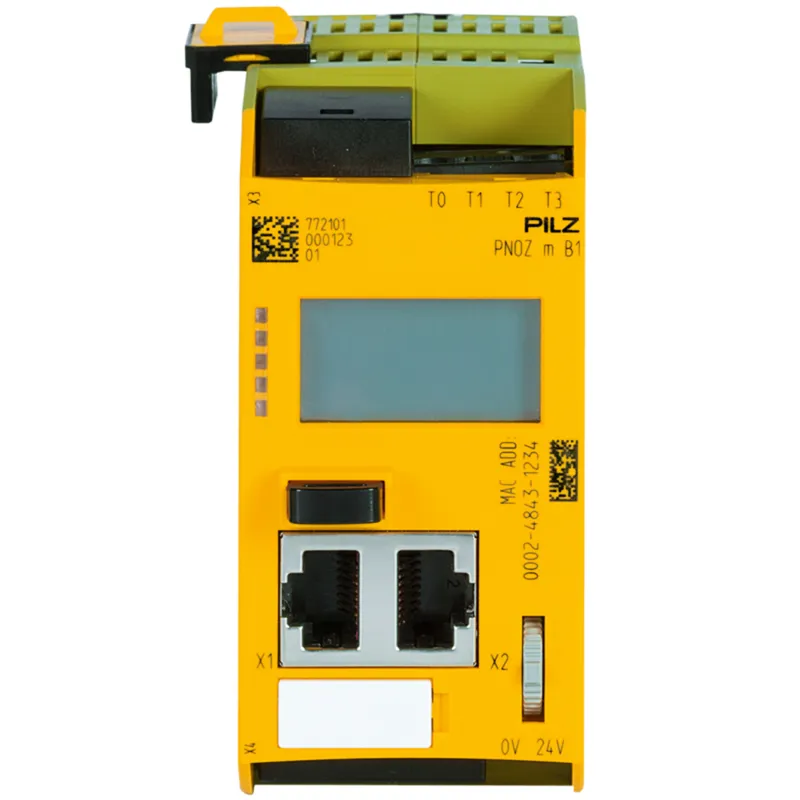

Pilz 772101
PNOZ m B1
- MPN
- 772101
- EAN
- 4046548069419
- Category
- PNOZmulti 2 - base units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 772101?
Configurable safe small controllers PNOZmulti 2 base unit, expandable, Ethernet interface with switch, USB 20 memory.
Specifications
General data
| Product ID (Pilz order number) | 772101 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Application range | Fail-safe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Versorgung des Systems |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 18.5 |
Test clock outputs
| Number of test pulse outputs | 4 |
Ethernet interface
| Ethernet IP address | 169.254.60.1 |
| Connector type ETHERNET int. | RJ45 |
| Ethernet transmission rate | 10 MBit/s, 100 MBit/s |
| Number of Ethernet interfaces | 2 |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Mechanical data
| Mounting position | waager. auf Hutschiene |
| DIN-rail dimensions | 35 x 7,5 EN/IEC 60715, 35 x 15 EN/IEC 60715 |
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material upper part | PC |
| Connection terminal | Schraubklemme, Käfigzugfederklemme |
| Terminal style | steckbar |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 101.4 mm |
| Width dimension | 45 mm |
| Depth dimension | 120.2 mm |
| Net weight | 209 g |
| Gross weight | 219 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 % |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242207 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC000236 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548069419 |
| Volume | 0.560 dm3 |
| Harmonized System Code | 85371091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
- 3rd-party license inf. PNOZ m B1
- Application Note Safety Gate PSENsgate 2
- Application Note PNOZm2 EtherCAT FSoE
- Application Note PASvisu with OPC UA
- Application Note Safety Gate Guard Lock
- Application Note Modbus Multi2 Simatic
- Application Note PNOZm2_PSENscan_AGV
- Application Note PNOZm2 FSoE KUKA KRC5
- Application Note PNOZm2_Muting
- Application Note PNOZm2_SafetyNET
- Application Notes: Application Note Content
- Application Note SecBridge SL1 PNOZm
- Application Note PNOZm2_ProfinetRecords
- Installation Manual PNOZmulti
- PNOZmulti Special Applications
- Operat.Man. PNOZmulti OPC Server
- PNOZmulti 2 Communication Interfaces
- Operating Manual: Operat.Manual PNOZ m B1
- Solution Description Cardboard Feed
- System description Key-in-Pocket
- System description PITmode flex visu
- PNOZmulti System Expansion
- System description PITmode flex
- Technical Catalogue PNOZmulti 2
CAD & dimension drawings
Certificates (13)
- Type examination certificate (TÜV) Z10-020132-0285-R03
- Type examination certificate (TÜV) M6A-020132-0193-R03
- Self Declaration (CQC) CCC_Declaration-of-exemption
- Certificate (AGA) 9044-02
- Attestation (TÜV) PO102154T
- Certificate (EAC) RU-C-DE-HB-B-03002-23
- Certificate (UL) E183931-20130824
- Type examination certificate (TÜV) M6R-020132-0315-R00
- Attestation (TÜV) PITmode-flex
- Type examination certificate (TÜV) EU-ESD-050-2
- Type examination certificate (KOSHA) 2017-661
- UK Declaration of Conformity (UKCA)
- EU/EC-Declaration of Conformity (Konformitätserklärung)
