Pilz 772034

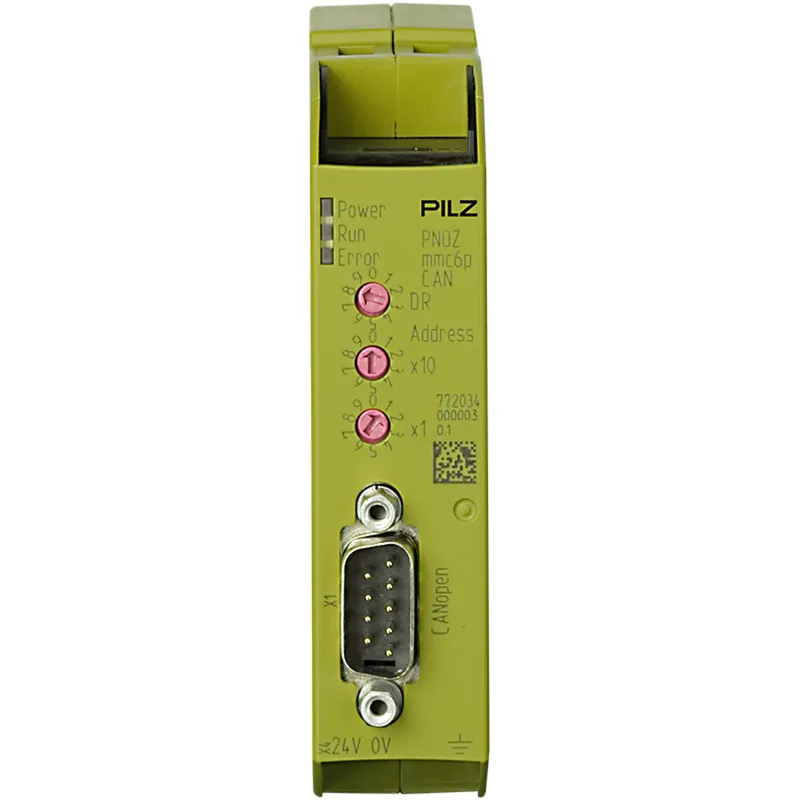

PNOZ mmc6p CAN

MPN
772034
EAN
4046548067590
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 772034 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 772034?

Configurable safe compact controllers PNOZmulti Mini, fieldbus module, CANopen.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)772034
ApprovalCE, UKCA, cULus Listed, EAC (Eurasian)
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Purpose of U1Module supply
Supply voltage (V)24
Type of supply voltage U1DC
Power consumption DC1.5

Fieldbus interface

Fieldbus interfaceCANopen
Fieldbus device typeSlave
Name of fieldbus protocolCiA 301 V4.2.0
Perm. fieldbus station address0 - 99d
Selectable transmission rates10 kBit/s, 500 kBit/s, 20 kBit/s, 250 kBit/s, 1 MBit/s, 50 kBit/s, 800 kBit/s, 125 kBit/s
Connection fieldbus9-pin D-Sub male connector
Galv. isolation fieldbusYes

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature0 … 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-30, EN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20

Potential separation

Potential isolation 1 betweenFieldbus and module
Type of potential isolation 1Functional insulation

Mechanical data

Mounting positionhorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminalSpring-loaded terminal, Screw terminal
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension100 mm
Width dimension22.5 mm
Depth dimension115 mm
Net weight95 g
Gross weight105 g

Environment

RoHS conformityyes
REACh complianceContains no SVHC substances
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242208
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001423
UNSPSC 2539122331
GTIN4046548067590
Volume0.345 dm3
Harmonized System Code85176200

772034: frequently asked questions

Can I still buy the 772034 now that it is discontinued?

Yes. Pilz has discontinued the 772034, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 772034 be shipped?

772034 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 772034 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 772034 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 772034, subject to availability and destination.
