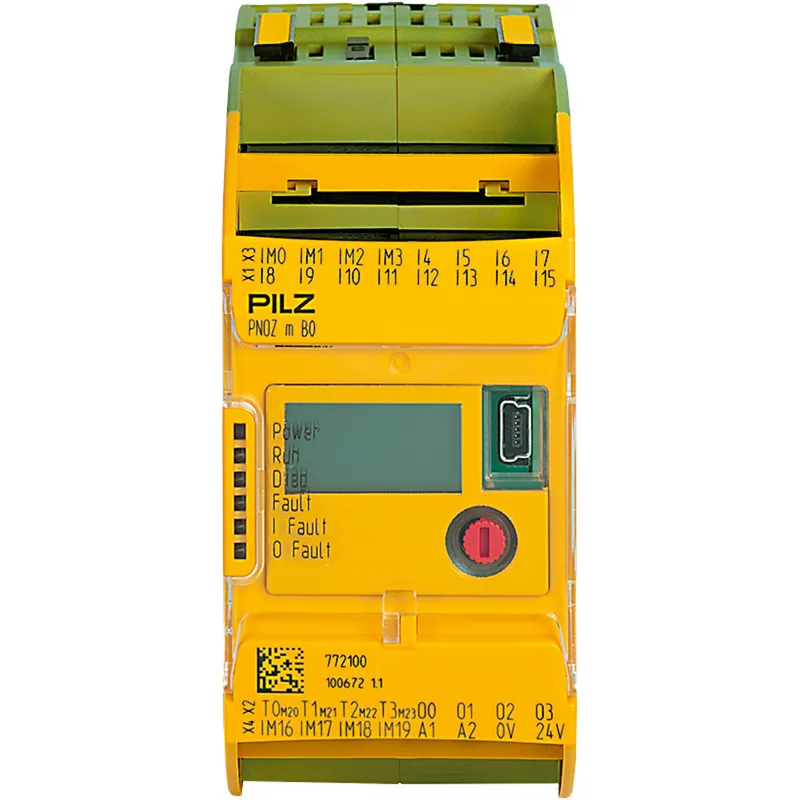

Pilz 772100

PNOZ m B0

MPN: 772100
EAN: 4046548059137
Category: PNOZmulti 2 - base units

€369.94excl. VAT & shipping

In stock — 5 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 772100?

Configurable safe small controllers PNOZmulti 2, base unit, expandable, 20 safe digital inputs, 4 safe semiconductor outputs.

Specifications

General data

Product ID (Pilz order number)	772100
Approval	CE, UKCA, cULus Listed, TÜV, EAC (Eurasian)
Application range	Fail-safe
Lifecycle	Active (current Pilz product)

Electrical data

Purpose of U1	Versorgung des Systems
Supply voltage (V)	24
Type of supply voltage U1	DC
Device circuit breaker U1	6 A, Automat, Char.B
Purpose of U2	Versorgung der HL-Ausgänge
Supply voltage U2	24
Type of supply voltage U2	DC
Tolerance of U2	-20 %/+25 %
Potential isolation U2	ja
Permitted loads	ohmsch, induktiv, kapazitiv

Configurable inputs/outputs

Number of configurable I/Os	8
Potential isolation of IO	nein
Short circ. prot. n/safe S/C O	Ja
Voltage at 1 n/safe S/C O	UB - 2 V bei 0,1 A

Inputs

Number of digital inputs	12
U input to EN 61131-2 Type 1	24 V DC
Potential isolation input	nein

Semiconductor outputs

Potential isolation of S/C O	ja
S/C output short circuit proof	ja

Test clock outputs

Number of test pulse outputs

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	0 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-30, EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	unzulässig
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61131-2
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, mounting	IP54
Protection type, housing	IP20
Terminal protection type	IP20

Potential separation

Potential isolation 1 between	HL-Ausgang und Systemspannung
Type of potential isolation 1	Basisisolierung

Mechanical data

Mounting position	waager. auf Hutschiene
DIN-rail dimensions	35 x 7,5 EN/IEC 60715, 35 x 15 EN/IEC 60715
Housing material lower section	PC
Housing material front plate	PC
Housing material upper part	PC
Connection terminal	Federkraftklemme, Schraubklemme
Terminal style	steckbar
Flex. cond. c/s AWG info	24 - 12 AWG
Height dimension	101.4 mm
Width dimension	45 mm
Depth dimension	120 mm
Net weight	235 g
Gross weight	250 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27242207
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC000236
UNSPSC 25	39122331
GTIN	4046548059137
Volume	0.648 dm3
Harmonized System Code	85371091
Quantity per packaging unit	1
