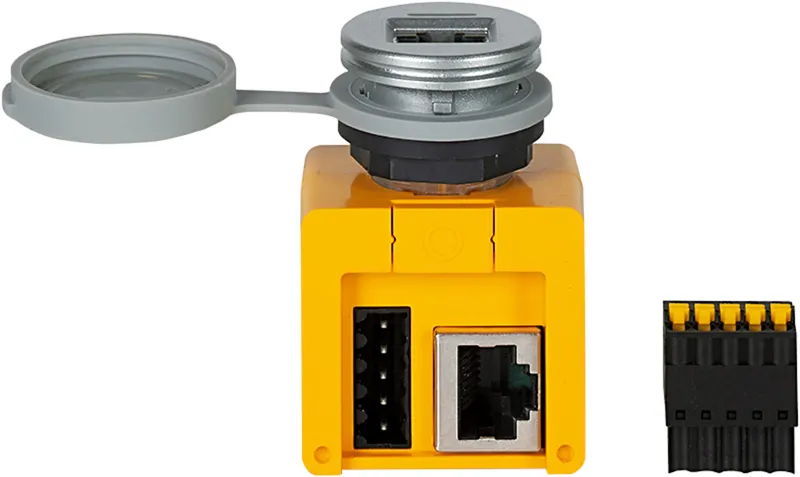

Pilz 402315

PIT oe ETH 5V

MPN: 402315
Category: Operation elements PIT oe

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 402315?

Activatable Ethernet interfaces (RJ45), supply and input voltage 5 V

Specifications

General data

Product ID (Pilz order number)	402315
Approval	CE, UKCA, UL Recognized Component
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	5
Type of supply voltage U1	DC
Power consumption DC	0.3

Inputs

Number of inputs	2
Galv. isolation input	No

Ethernet interface

Connector type ETHERNET int.	RJ45
Ethernet transmission rate	1 Gbit/s, 10/100 Mbit/s
Number of Ethernet interfaces	2

Environmental data

Climatic suitability to ...	EN 60068-2-2
Ambient temperature	-20 … 60 °C
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 61131-2 (Zone B)
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type, housing	IP20

Mechanical data

Mounting position	any
Max. cable length	30
Connection terminal	Spring-loaded terminal, plugin
Height dimension	40 mm
Width dimension	30 mm
Depth dimension	59.2 mm
Net weight	42 g
Gross weight	62 g

Environment

WEEE classification (08/2018)

6 small IT-/communic. device

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371292
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000017
ETIM Reference Feature	EC002024
