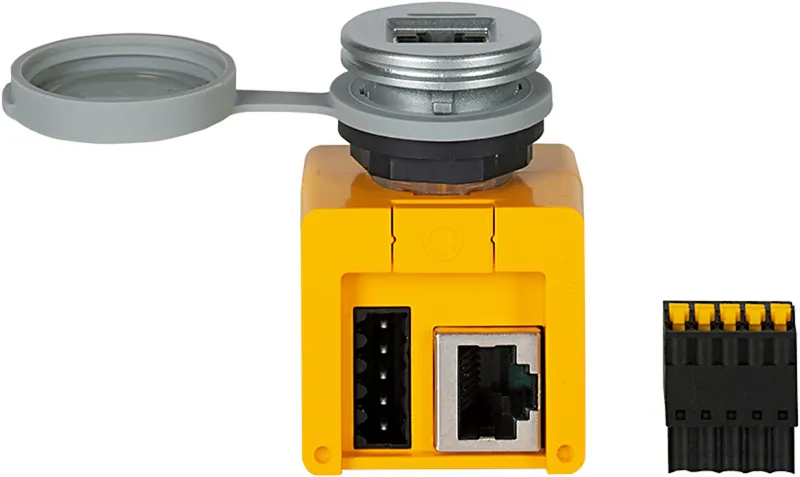

Pilz 402314

PIT oe ETH

MPN: 402314
EAN: 4046548107555
Category: Operation elements PIT oe

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 402314?

Activatable Ethernet interfaces (RJ45), supply and input voltage 24 V

Specifications

General data

Product ID (Pilz order number)	402314
Approval	CE, UKCA, UL Recognized Component
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24
Type of supply voltage U1	DC
Power consumption DC	0.48

Inputs

Number of inputs	2
DC voltage at input	24 V
Input type to EN 61131-2	3
Galv. isolation input	No

Ethernet interface

Connector type ETHERNET int.	RJ45
Ethernet transmission rate	1 Gbit/s, 10/100 Mbit/s
Number of Ethernet interfaces	2

Environmental data

Climatic suitability to ...	EN 60068-2-2, EN 60068-2-1
Ambient temperature standard	EN 60068-2-14
Ambient temperature	-20 °C
Climatic suitability standard	EN 60068-2-78
Humidity rating	P_FEUCHTE_WERT_93 % r. F. bei 40 °C
Condensation permitted?	unzulässig
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61131-2 (Zone B)
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, mounting	IP65
Protection type, housing	IP20

Mechanical data

Mounting position	beliebig
Max. cable length	30
Connection terminal	Federkraftklemme steckbar
Terminal style	plug-in
Height dimension	40 mm
Width dimension	30 mm
Depth dimension	59.2 mm
Net weight	41 g
Gross weight	59 g

Environment

WEEE classification (08/2018)

6 small IT-/communic. device

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371292
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000017
ETIM Reference Feature	EC002024
UNSPSC 25	39122205
GTIN	4046548107555
Volume	0.314 dm3
Harmonized System Code	85176200
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (3)

402314: frequently asked questions

When can 402314 be shipped?

402314 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 402314 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 402314 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 402314, subject to availability and destination.
