Pilz 402311

Q: When can 402311 be shipped?

402311 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 402311 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 402311 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 402311, subject to availability and destination.

PIT oe 4S

MPN: 402311
EAN: 4046548097962
Category: Operation elements PIT oe

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 402311?

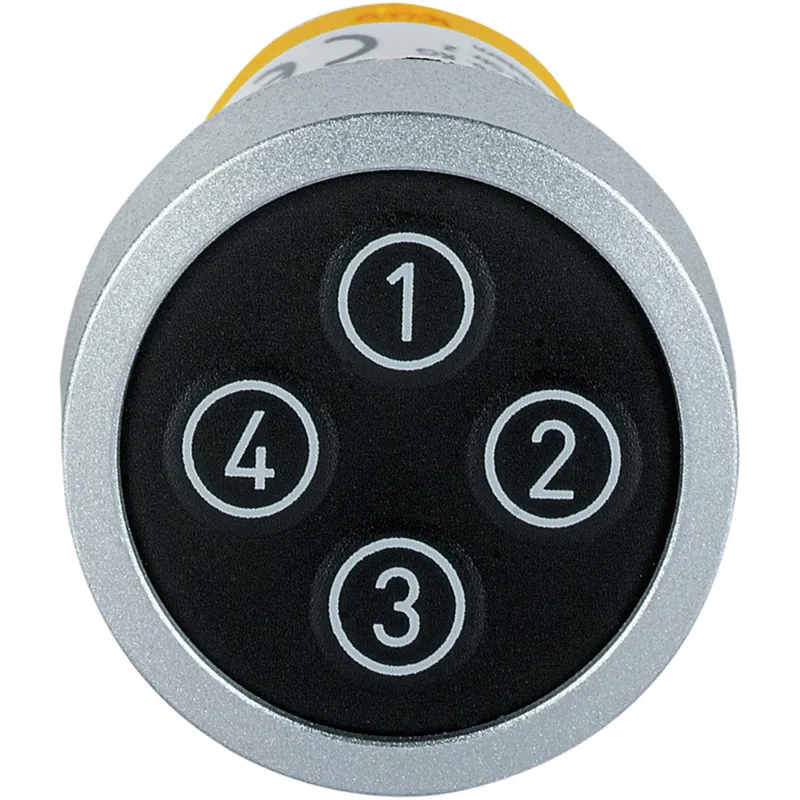

Pushbutton unit with 4 LED pushbuttons, including fixing nuts. Optional accessories for PIT m4 SEU [402250].

Specifications

General data

Product ID (Pilz order number)	402311
Approval	CE, UKCA, UL Recognized Component
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24
Type of supply voltage U1	DC
Power consumption DC	0.17

Inputs

Signal level at input at 0

< 5 V

Environmental data

Climatic suitability to ...	EN 60068-2-2, EN 60068-2-1, EN 60068-2-14
Ambient temperature standard	EN 60068-2-2, EN 60068-2-1
Ambient temperature	-20 … 60 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61131-2 (Zone B)
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	150 m/s²
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, housing	IP20

Mechanical data

Mounting position	any
Connection terminal	Spring-loaded terminal
Height dimension	32 mm
Width dimension	32 mm
Depth dimension	40 mm
Net weight	17 g
Gross weight	25 g

Environment

WEEE classification (08/2018)

5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371292
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000017
ETIM Reference Feature	EC002024
UNSPSC 25	39122205
GTIN	4046548097962
Volume	0 dm3
Harmonized System Code	85365011
Quantity per packaging unit	1
