Pepperl Fuchs VOS-LE-C-16MM-HC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 2-D Universal Vision Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VOS-LE-C-16MM-HC be shipped?
VOS-LE-C-16MM-HC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VOS-LE-C-16MM-HC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VOS-LE-C-16MM-HC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VOS-LE-C-16MM-HC, subject to availability and destination.

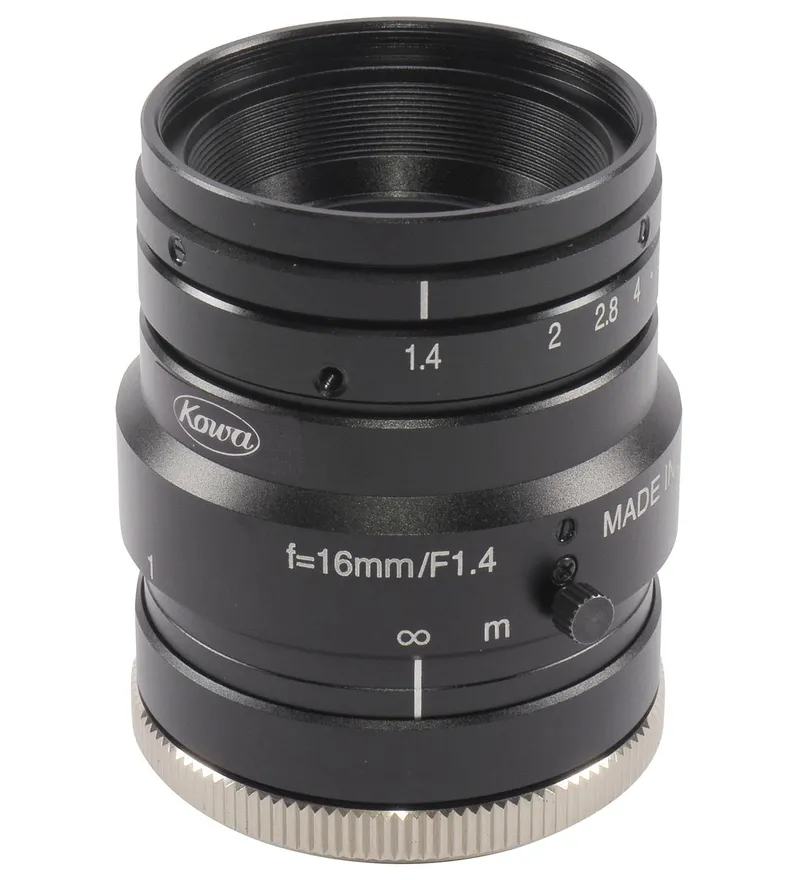

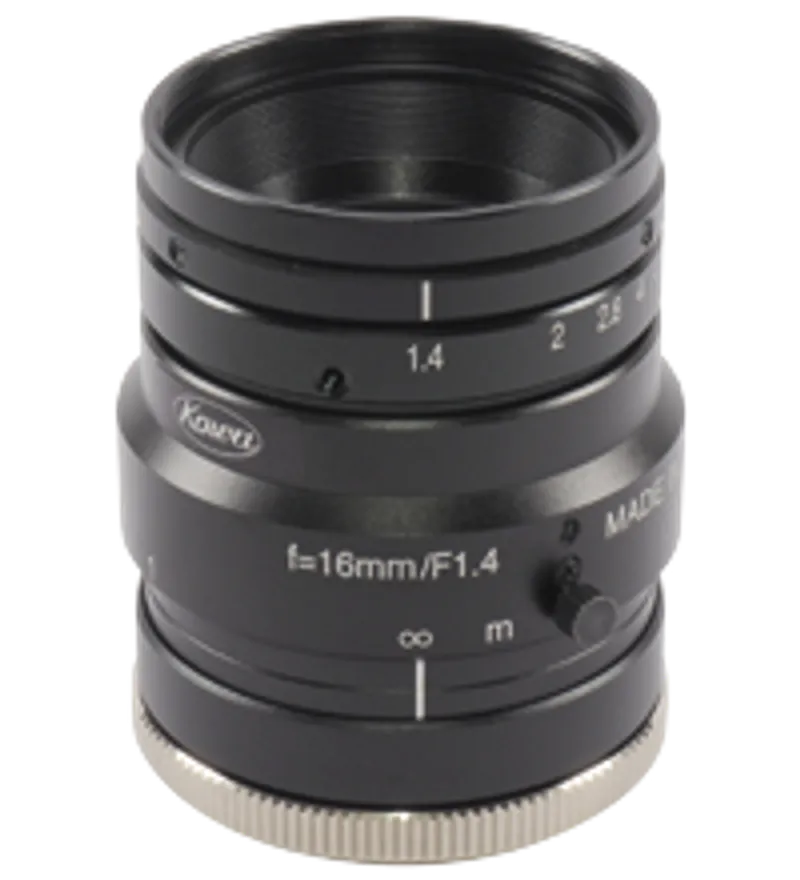

Accessory camera lens. Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C-mount cameras. Optical resolution: 7 MP. Focal length: 16 mm. Focal range: ≥ 12 mm ... < 25 mm. Format: 1". Aperture: F1,4-16. Aperture contro: manually. Horizontal angle of view: 44.3 °. Vertical angle of view: 33.6 °. Diagonal angle of view: 54.4 °. At image format: 12.8 x 9.6 mm. MOD (Minimum object distance): 300 mm. Operating temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Mass: 150 g. Objective connection: C-mount. Dimensions: . Length54.15 mmDiameter43 mm: . Length: 54.15 mm. Diameter: 43 mm. Filter thread: M 35.5 × 0.5
Specifications
General specifications
| Optical resolution | 7 MP |
| Focal length | 16 mm |
| Focal range | ≥ 12 mm ... < 25 mm |
| Format | 1" |
| Aperture | F1,4-16 |
| Aperture contro | manually |
| Horizontal angle of view | 44.3 ° |
| Vertical angle of view | 33.6 ° |
| Diagonal angle of view | 54.4 ° |
| At image format | 12.8 x 9.6 mm |
| MOD (Minimum object distance) | 300 mm |
Ambient conditions
| Operating temperature | -10 ... 50 °C (14 ... 122 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
Mechanical specifications
| Mass | 150 g |
| Objective connection | C-mount |

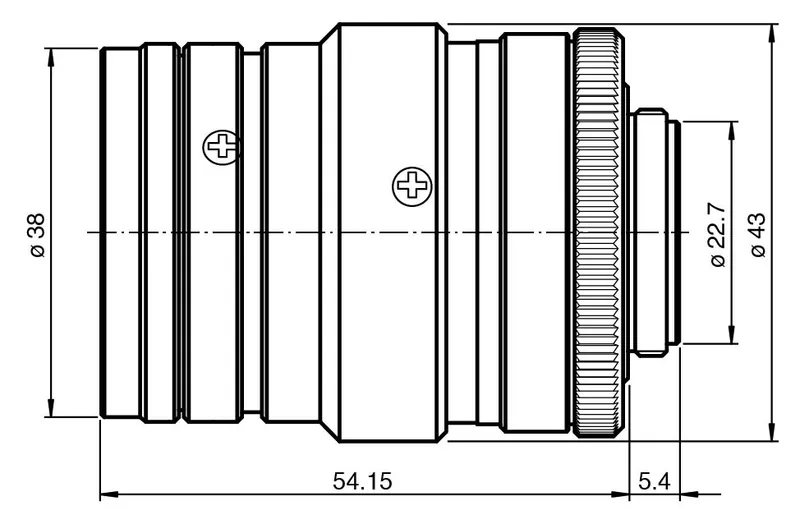

| Dimensions | |
| Length54.15 mmDiameter43 mm | Length |
| Length | 54.15 mm |
| Diameter | 43 mm |
| Filter thread | M 35.5 × 0.5 |
