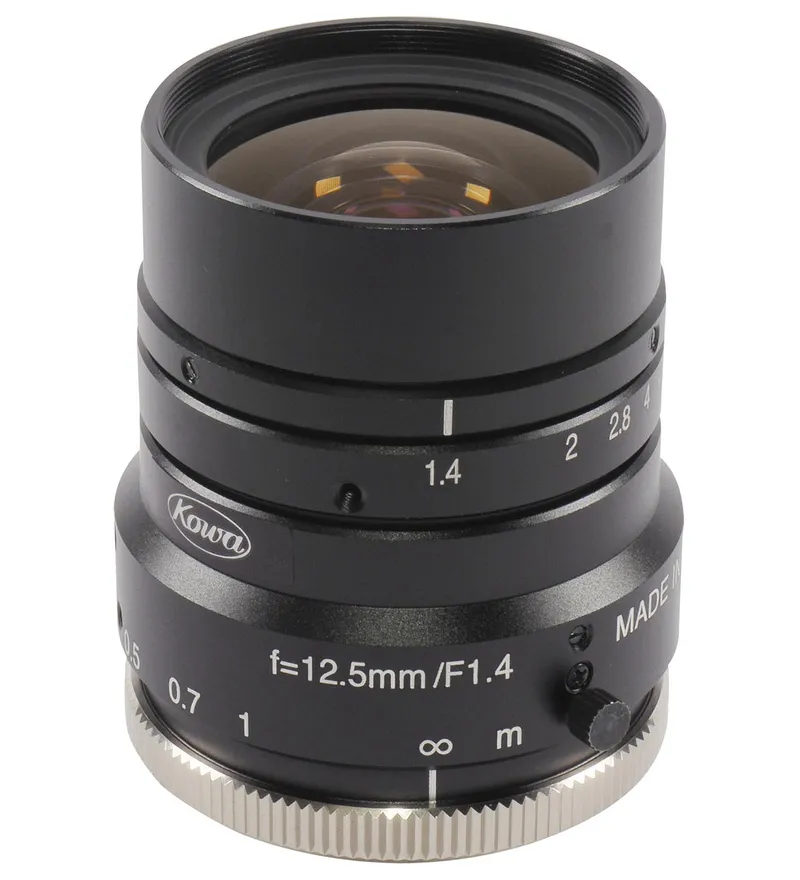

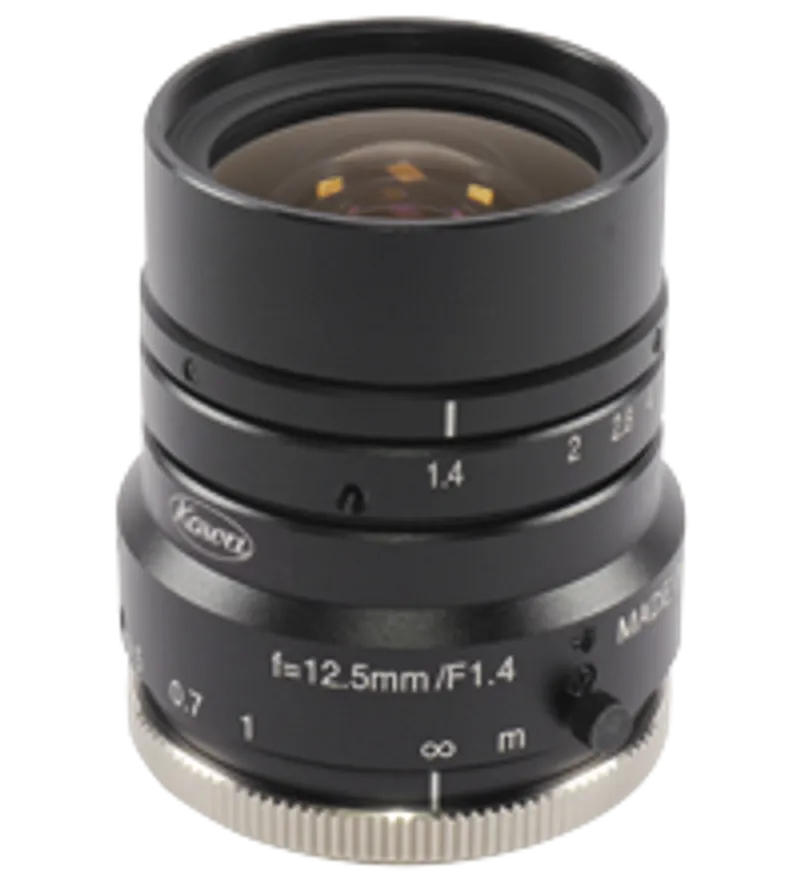

Pepperl Fuchs VOS-LE-C-12MM-HC
Accessory camera lens
- MPN
- VOS-LE-C-12MM-HC
- Category
- 2-D Universal Vision Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs VOS-LE-C-12MM-HC?
Exchangeable lens (C-Mount)
Focal length 12.5 mm
F 1.4-16
Format 1"
MOD 0.3 m
C-mount
Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C-mount cameras
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70114993 |
| Optical resolution | 7 MP |
| Focal length | 12.5 mm |
| Focal range | ≥ 12 mm ... < 25 mm |
| Format | 1" |
| Aperture | F1,4-16 |
| Aperture contro | manually |
| Horizontal angle of view | 55.6 ° |
| Vertical angle of view | 42.5 ° |
| Diagonal angle of view | 67.7 ° |
| At image format | 12.8 x 9.6 mm |
| MOD (Minimum object distance) | 300 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Operating temperature | -10 ... 50 °C (14 ... 122 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |

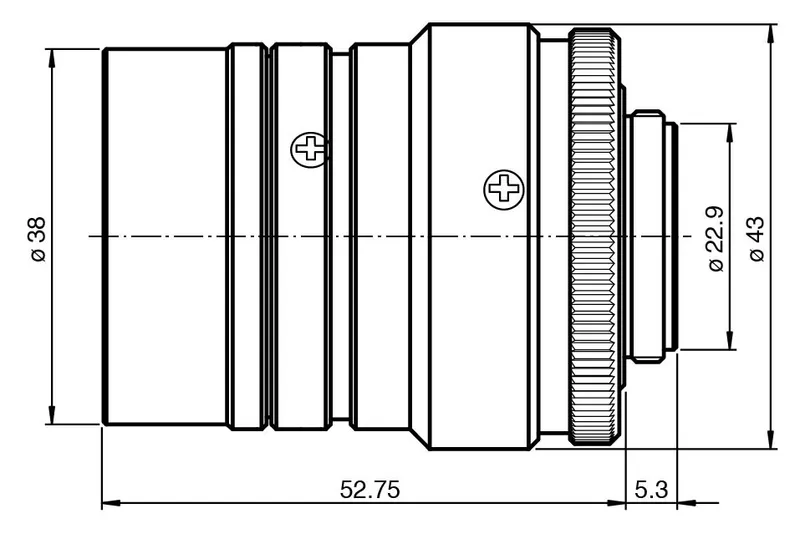

Mechanical specifications
| Mass | 160 g |
| Objective connection | C-mount |
| Dimensions: Length | 52.75 mm |
| Dimensions: Diameter | 43 mm |
| Filter thread | M 35.5 × 0.5 |
