Pepperl Fuchs VOS-LE-C-12MM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 2-D Universal Vision Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VOS-LE-C-12MM be shipped?
VOS-LE-C-12MM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VOS-LE-C-12MM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VOS-LE-C-12MM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VOS-LE-C-12MM, subject to availability and destination.

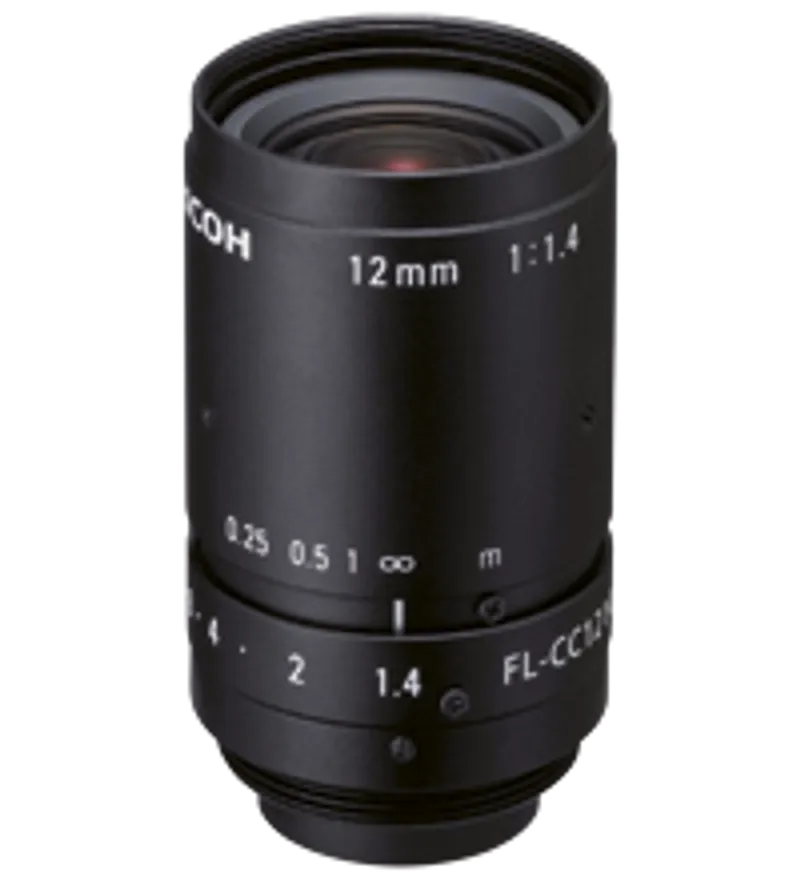

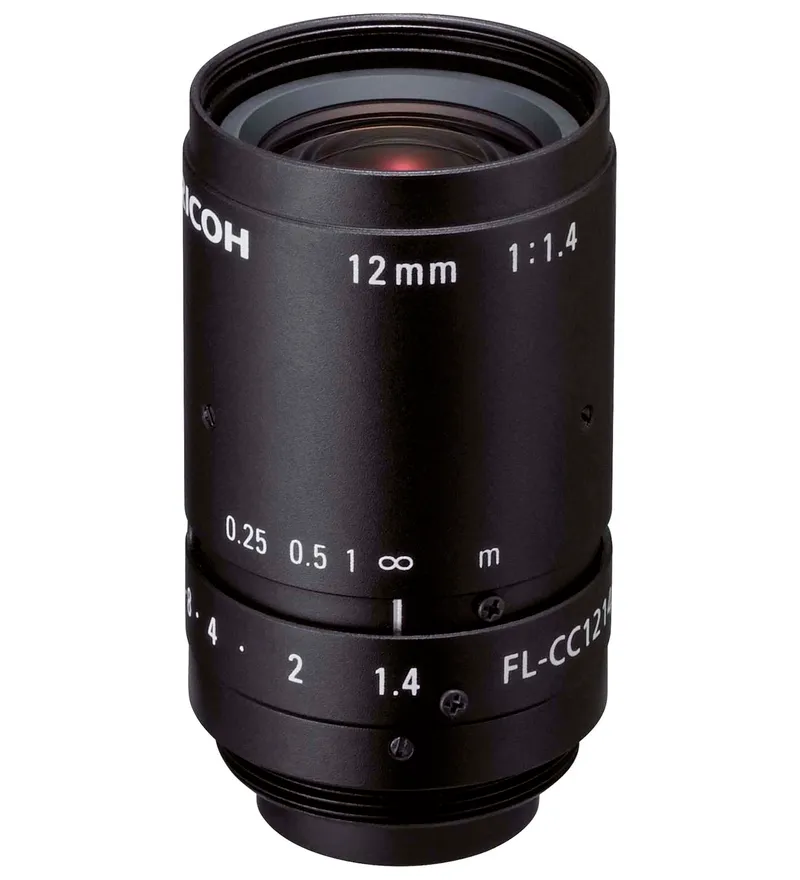

Accessory camera lens. Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C-mount cameras. Optical resolution: 2 MP. Focal length: 12 mm. Format: 2/3". Aperture: F1,4-16. Aperture contro: manually. Horizontal angle of view: 39.4 °. Vertical angle of view: 30.1 °. Diagonal angle of view: 47.9 °. At image format: 8.8 x 6.6 mm. MOD (Minimum object distance): 100 mm. Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Mass: 68 g. Objective connection: C-mount. Dimensions: . Length45.7 mmDiameter29.5 mm: . Length: 45.7 mm. Diameter: 29.5 mm. Filter thread: M 27 × 0.5
Specifications
General specifications
| Optical resolution | 2 MP |
| Focal length | 12 mm |
| Format | 2/3" |
| Aperture | F1,4-16 |
| Aperture contro | manually |
| Horizontal angle of view | 39.4 ° |
| Vertical angle of view | 30.1 ° |
| Diagonal angle of view | 47.9 ° |
| At image format | 8.8 x 6.6 mm |
| MOD (Minimum object distance) | 100 mm |
Ambient conditions
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
Mechanical specifications
| Mass | 68 g |
| Objective connection | C-mount |

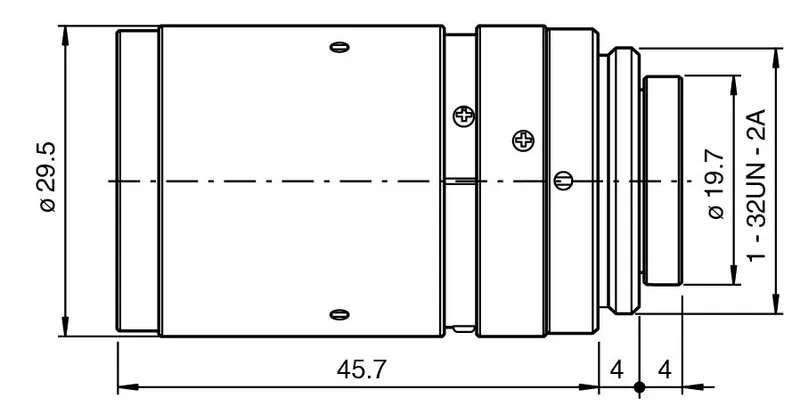

| Dimensions | |
| Length45.7 mmDiameter29.5 mm | Length |
| Length | 45.7 mm |
| Diameter | 29.5 mm |
| Filter thread | M 27 × 0.5 |
