Pepperl Fuchs V23-G-T-0,3M-PUR-TP-V19/V19-G – Y connection cable. Y connection cable M23 socket straight…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Splitters |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V23-G-T-0,3M-PUR-TP-V19/V19-G be shipped?
V23-G-T-0,3M-PUR-TP-V19/V19-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V23-G-T-0,3M-PUR-TP-V19/V19-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V23-G-T-0,3M-PUR-TP-V19/V19-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V23-G-T-0,3M-PUR-TP-V19/V19-G, subject to availability and destination.

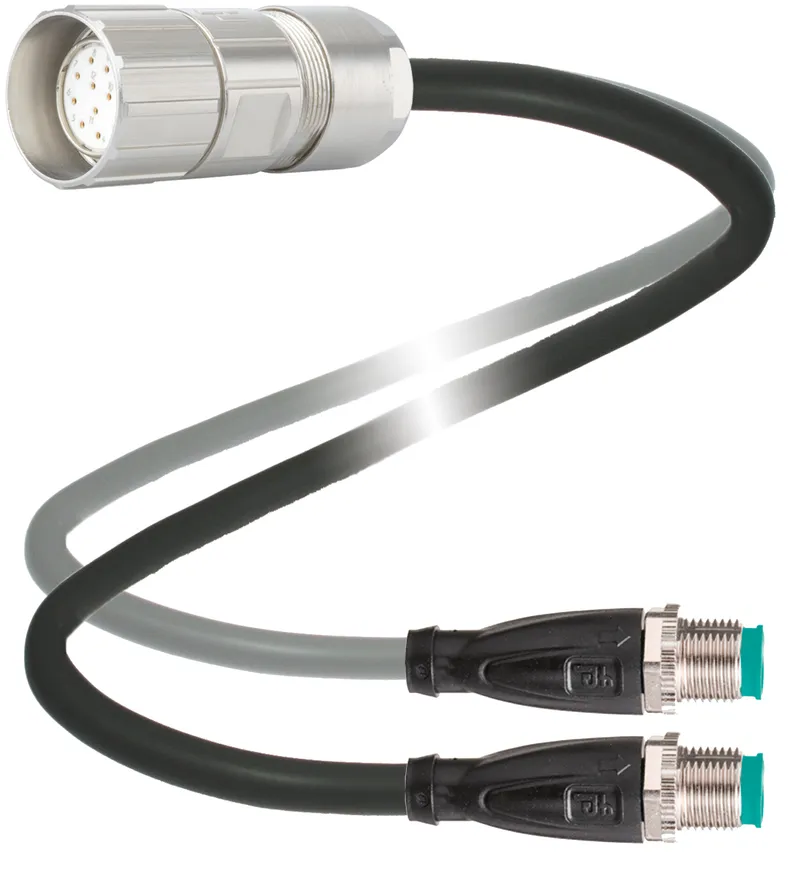

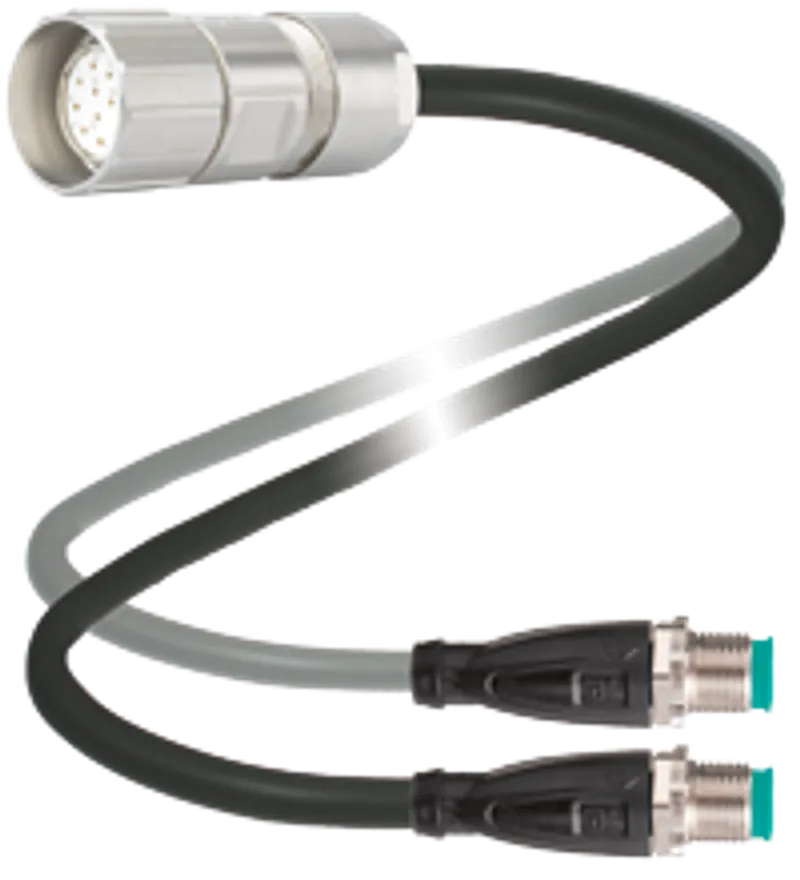

Y connection cable. Y connection cable M23 socket straight 12-pin to 2x M12 plug straight A-coded 8-pin, 1x PVC cable grey, twisted pairs, overall shield / 1x PUR cable black, shielded. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 3: . ConnectionsocketConstruction typeM23StylestraightLockingscrew connectionNumber of pins12: . Connection: socket. Construction type: M23. Style: straight. Locking: screw connection. Number of pins: 12. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 8 A / max. 2 A per pin. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2 ; IEC 60332-1-2. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 90 °C (-40 ... 194 °F)Connector 3-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-5 ... 70 °C (23 ... 158 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -40 ... 90 °C (-40 ... 194 °F). Connector 3: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -5 ... 70 °C (23 ... 158 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP68 / IP69. Connector 2: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP68 / IP69. Connector 3: . Tool installationstraight knurling and hexagon nut SW = 24 mmShieldingshield connected to screw connectionDegree of protectionIP67 / IP69K: . Tool installation: straight knurling and hexagon nut SW = 24 mm. Shielding: shield connected to screw connection. Degree of protection: IP67 / IP69K. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mm / 6.2 mmBending radius> 15 x cable diameter, movable installation > 6 x cable diameter, fixed installationSheath colorblack / greyNumber of cores8Core cross section0.25 mm2 / 0.14 mm2Cores colorCore 1-7: SSI BUCore 2-2: SSI BNCore 3-5: SSI GYCore 4-6: SSI PKCore 5-3: SSI GNCore 6-4: SSI YECore 7-2: HTL BNCore 8-6: HTL PKCore 9-7: HTL BUCore 10-4: HTL YECore 11-3: HTL GNCore 12-5: HTL GYCore construction32 x 0.1 mm ∅ / 4 x 2 x 0.14 mm2 twisted pairs , overall shieldShieldtinned copper braidingLengthL0.3 mCable codeLi 9Y C 11Y 8 x 0,25 / Li Y CY 4 x 2 x 0,14: . Sheath diameter: 6 mm / 6.2 mm. Bending radius: > 15 x cable diameter, movable installation > 6 x cable diameter, fixed installation. Sheath color: black / grey. Number of cores: 8. Core cross section: 0.25 mm2 / 0.14 mm2. Cores color: Core 1-7: SSI BUCore 2-2: SSI BNCore 3-5: SSI GYCore 4-6: SSI PKCore 5-3: SSI GNCore 6-4: SSI YECore 7-2: HTL BNCore 8-6: HTL PKCore 9-7: HTL BUCore 10-4: HTL YECore 11-3: HTL GNCore 12-5: HTL GY. Core construction: 32 x 0.1 mm ∅ / 4 x 2 x 0.14 mm2 twisted pairs , overall shield. Shield: tinned copper braiding. Length: 0.3 m. Cable code: Li 9Y C 11Y 8 x 0,25 / Li Y CY 4 x 2 x 0,14. Mass: 149.11 g. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 3: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedSealNBRContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated. Seal: NBR. Contact surface: gold plated (Au). Cable: . SheathingPUR / PVCCore insulationPP / PVCFlammabilityflame retardant: . Sheathing: PUR / PVC. Core insulation: PP / PVC. Flammability: flame retardant
Specifications
General specifications
| Connector 1 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 8 |
| Coding | A-coded |
| Connector 2 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 8 |
| Coding | A-coded |
| Connector 3 | |
| ConnectionsocketConstruction typeM23StylestraightLockingscrew connectionNumber of pins12 | Connection |
| Connection | socket |
| Construction type | M23 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 12 |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 8 A / max. 2 A per pin IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 1581; DIN EN 60332-2-2 ; IEC 60332-1-2 |
Ambient conditions
| Ambient temperature | |
| Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 90 °C (-40 ... 194 °F)Connector 3-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-5 ... 70 °C (23 ... 158 °F) | Connector 1 |
| Connector 1 | -40 ... 90 °C (-40 ... 194 °F) |
| Connector 2 | -40 ... 90 °C (-40 ... 194 °F) |
| Connector 3 | -40 ... 125 °C (-40 ... 257 °F) |
| Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Cable, flexing | -5 ... 70 °C (23 ... 158 °F) |
| Pollution degree | 3 |

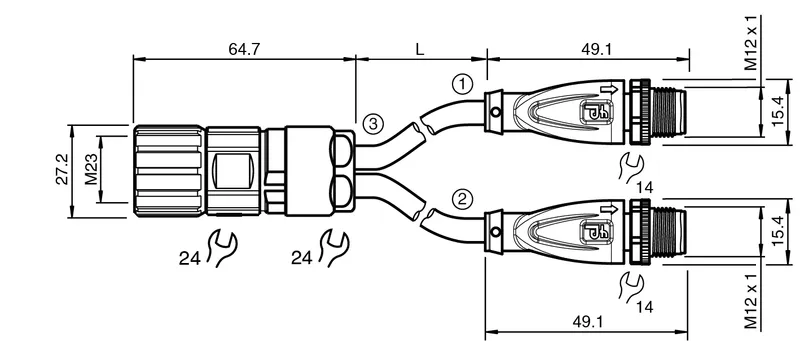

Mechanical specifications
| Connector 1 | |
| Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP68 / IP69 | Tightening torque |
| Tightening torque | 0.6 Nm |
| Loosening protection | available |
| Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Mating cycles | min. 100 |
| Shielding | shield connected to screw connection |
| Degree of protection | IP68 / IP69 |
| Connector 2 | |
| Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP68 / IP69 | Tightening torque |
| Tightening torque | 0.6 Nm |
| Loosening protection | available |
| Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Mating cycles | min. 100 |
| Shielding | shield connected to screw connection |
| Degree of protection | IP68 / IP69 |
| Connector 3 | |
| Tool installationstraight knurling and hexagon nut SW = 24 mmShieldingshield connected to screw connectionDegree of protectionIP67 / IP69K | Tool installation |
| Tool installation | straight knurling and hexagon nut SW = 24 mm |
| Shielding | shield connected to screw connection |
| Degree of protection | IP67 / IP69K |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter6 mm / 6.2 mmBending radius> 15 x cable diameter, movable installation > 6 x cable diameter, fixed installationSheath colorblack / greyNumber of cores8Core cross section0.25 mm2 / 0.14 mm2Cores colorCore 1-7: SSI BUCore 2-2: SSI BNCore 3-5: SSI GYCore 4-6: SSI PKCore 5-3: SSI GNCore 6-4: SSI YECore 7-2: HTL BNCore 8-6: HTL PKCore 9-7: HTL BUCore 10-4: HTL YECore 11-3: HTL GNCore 12-5: HTL GYCore construction32 x 0.1 mm ∅ / 4 x 2 x 0.14 mm2 twisted pairs , overall shieldShieldtinned copper braidingLengthL0.3 mCable codeLi 9Y C 11Y 8 x 0,25 / Li Y CY 4 x 2 x 0,14 | Sheath diameter |
| Sheath diameter | 6 mm / 6.2 mm |
| Bending radius | > 15 x cable diameter, movable installation > 6 x cable diameter, fixed installation |
| Sheath color | black / grey |
| Number of cores | 8 |
| Core cross section | 0.25 mm2 / 0.14 mm2 |

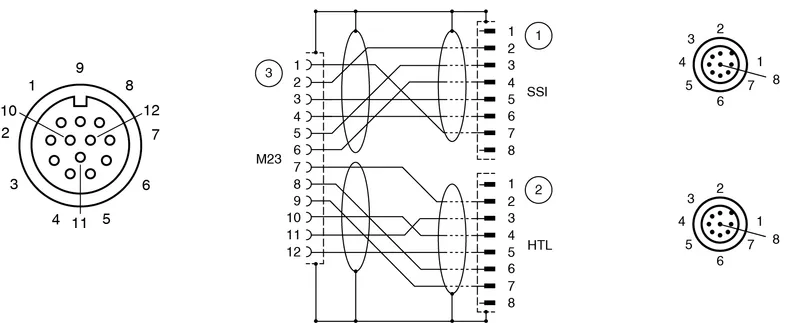

| Cores color | Core 1-7: SSI BUCore 2-2: SSI BNCore 3-5: SSI GYCore 4-6: SSI PKCore 5-3: SSI GNCore 6-4: SSI YECore 7-2: HTL BNCore 8-6: HTL PKCore 9-7: HTL BUCore 10-4: HTL YECore 11-3: HTL GNCore 12-5: HTL GY |
| Core construction | 32 x 0.1 mm ∅ / 4 x 2 x 0.14 mm2 twisted pairs , overall shield |
| Shield | tinned copper braiding |
| Length | 0.3 m L |
| Cable code | Li 9Y C 11Y 8 x 0,25 / Li Y CY 4 x 2 x 0,14 |
| Mass | 149.11 g |
Material
| Connector 1 | |
| Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2 | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | TPU, black |
| Contact surface | gold plated (Au) |
| Flammability | V-2 |
| Connector 2 | |
| Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2 | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | TPU, black |
| Contact surface | gold plated (Au) |
| Flammability | V-2 |
| Connector 3 | |
| Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedSealNBRContact surfacegold plated (Au) | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | Zinc diecast, nickel-plated |
| Seal | NBR |
| Contact surface | gold plated (Au) |
| Cable | |
| SheathingPUR / PVCCore insulationPP / PVCFlammabilityflame retardant | Sheathing |
| Sheathing | PUR / PVC |
| Core insulation | PP / PVC |
| Flammability | flame retardant |
