Pepperl Fuchs V19SY-Y-V1D/V1S
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Splitters |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V19SY-Y-V1D/V1S be shipped?
V19SY-Y-V1D/V1S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V19SY-Y-V1D/V1S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V19SY-Y-V1D/V1S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V19SY-Y-V1D/V1S, subject to availability and destination.

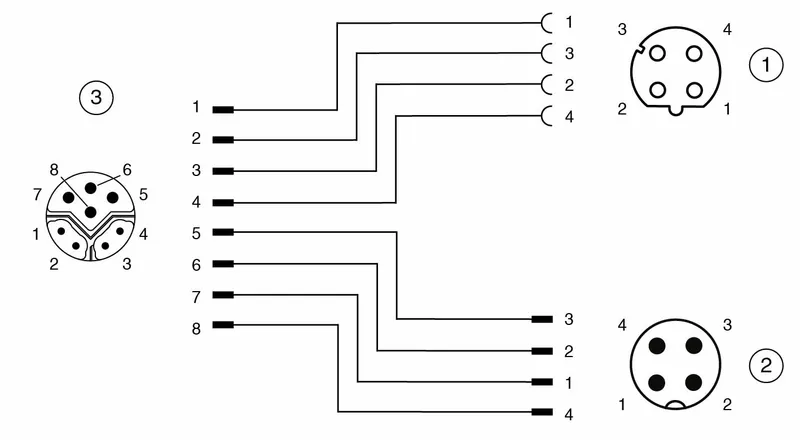

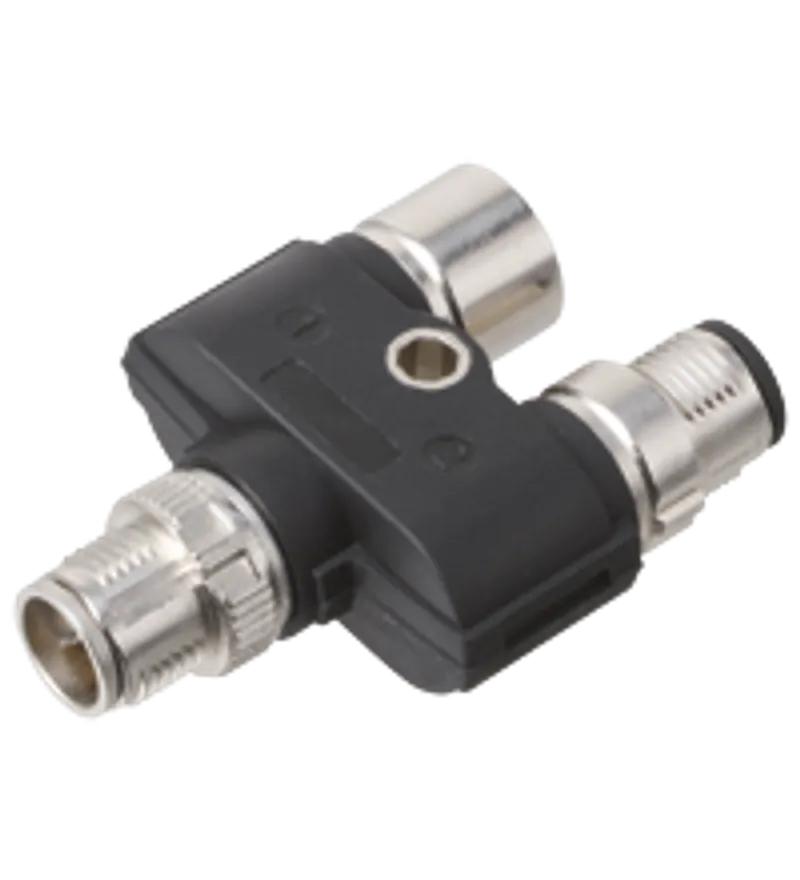

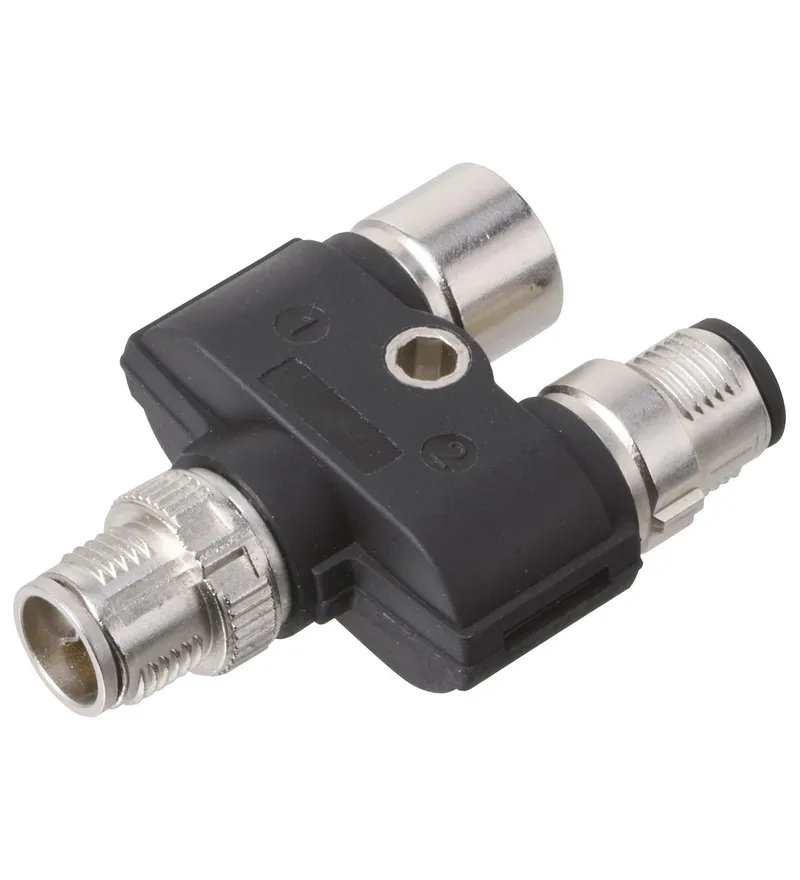

Y-Splitter. Y-Splitter M12 plug 8-pin Y-coded to M12 socket 4-pin D-coded / M12 plug 4-pin A-coded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: D-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingY-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: Y-coded. Operating voltage: max. 30 V AC/DC. Operating current: 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801:2002). Flammability: UL 94. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP67. Mass: 45 g. Dimensions: . Width39 mmLength54.5 mm: . Width: 39 mm. Length: 54.5 mm. Mounting: Mounting hole for M4 screw. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPUSealNBRContact surfaceNi/Au: . Screw connection: Zinc diecast, nickel-plated. Body: TPU. Seal: NBR. Contact surface: Ni/Au
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | D-coded |
| Connector 2 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
| Connector 3 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingY-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 8 |
| Coding | Y-coded |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Component category | CAT5 (IEC 11801:2002) |
| Flammability | UL 94 |
Ambient conditions
| Ambient temperature | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100 | Tightening torque |
| Tightening torque | 0.6 Nm |
| Loosening protection | available |
| Tool installation | straight knurling |
| Mating cycles | min. 100 |
| Degree of protection | IP67 |
| Mass | 45 g |

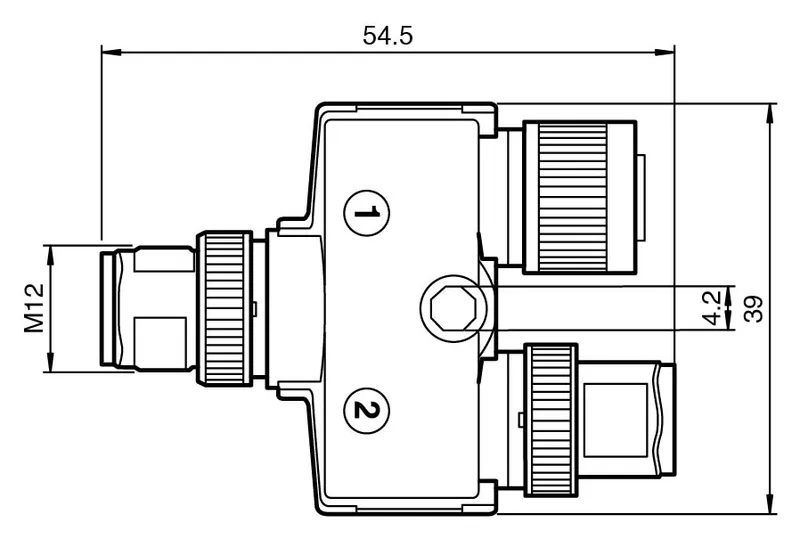

| Dimensions | |
| Width39 mmLength54.5 mm | Width |
| Width | 39 mm |
| Length | 54.5 mm |
| Mounting | Mounting hole for M4 screw |
Material
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedBodyTPUSealNBRContact surfaceNi/Au | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | TPU |
| Seal | NBR |
| Contact surface | Ni/Au |
