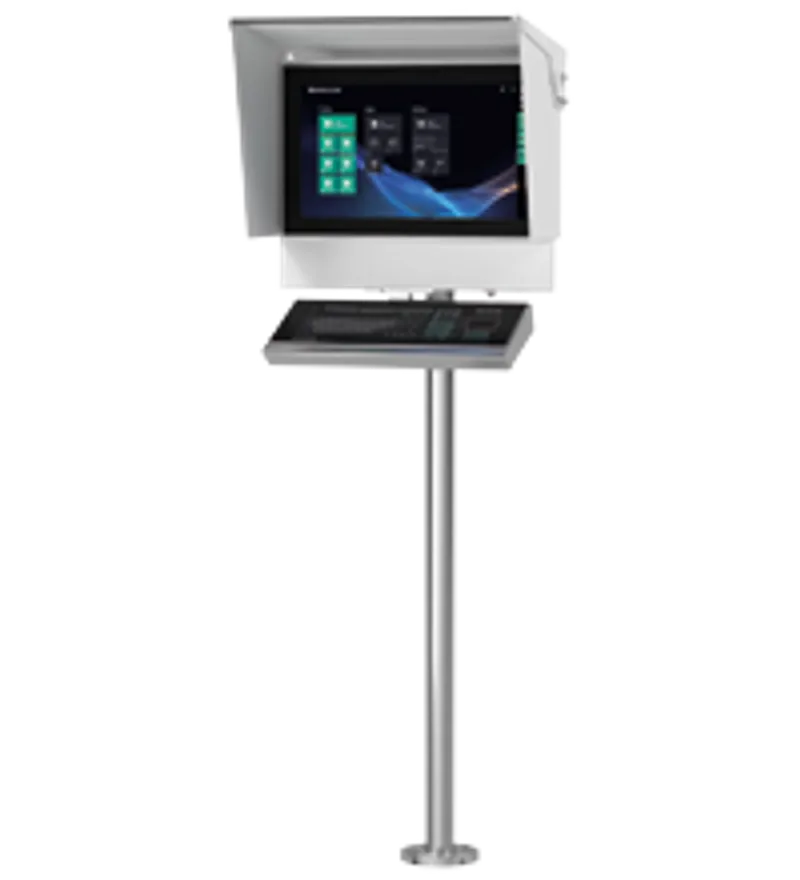

Pepperl Fuchs PC-320S-*B-*
Personal Computer - System with Enclosure
- MPN
- PC-320S-*B-*
- Category
- Industrial Monitors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs PC-320S-*B-*?
Designed for use in the extended temperature range of -20 °C ... 50 °C with rugged aluminum housing

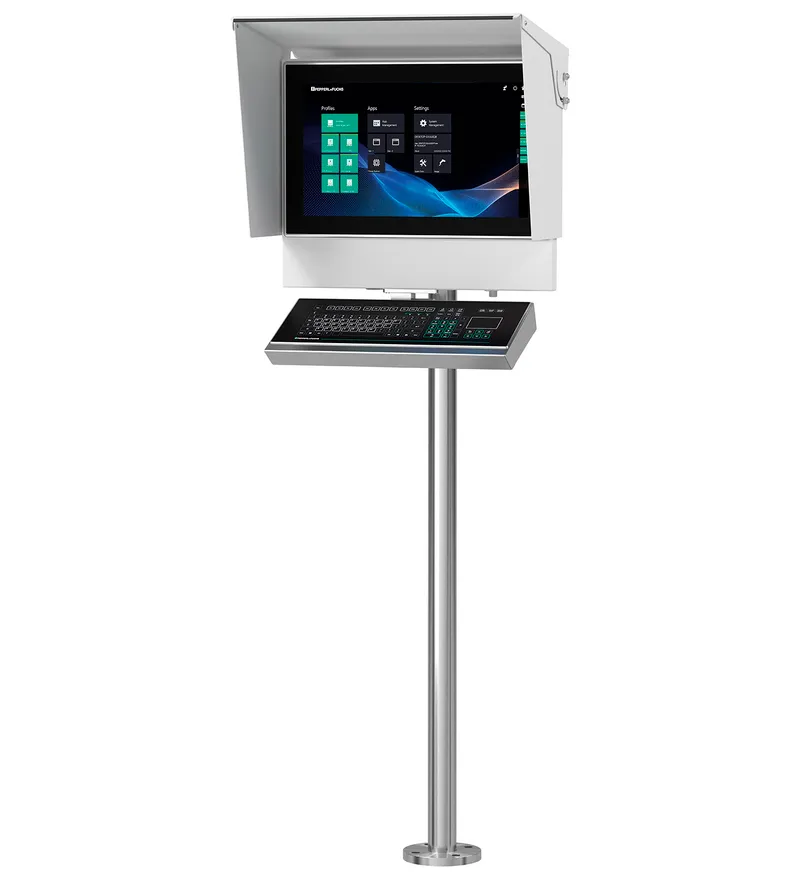

Suitable for outdoor use with various sunshield options
Fully modular design allowing easy migration of individual components
High application flexibility due to identical basic components that can be can be configured as required
7th generation Intel Celeron and i5 embedded processor generation
Optional preinstalled RFID20-* reader
Personal Computer - System with Enclosure, Designed for use in the extended temperature range of -20 °C ... 50 °C with rugged aluminum housing, Suitable for outdoor use with various sunshield options, Fully modular design allowing easy migration of individual components, High application flexibility due to identical basic components that can be can be configured as required, 7th generation Intel Celeron and i5 embedded processor generation, Optional preinstalled RFID20-* reader
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T215345 |
| Type | Personal Computer |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Hardware
| Processor | 1N: Intel® Celeron 2N: Intel® Core™ i5-7300U |
| RAM | 2x SO-DIMM slots, supports up to 32 GB DDR4-2133 (one SO-DIMM slot) Configurable RAM options: Wide temperature grade (temperature option B): L: 1x 8GB DDR4-2133 M: 1x 16GB DDR4-2133 P: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5] |
| Mass storage | Storage interface: 1x M.2 2242/2280 M Key, PCIe + SATA 3 Configurable storage options: Wide temperature grade (temperature option B): P: 256 GB M.2 NVMe 1.3 (PCIe 4x) Q: 512 GB M.2 NVMe 1.3 (PCIe 4x) |
Supply
| Power consumption: AC | max. load: 64 W Further information can be found in the VisuNet FLX manual for the extended temperature range. |
| Power consumption: DC | max. load: 55 W Further information can be found in the VisuNet FLX manual for the extended temperature range. |
Indicators/operating means
| Display: Type | Liquid Crystal Display (LCD) with LED backlight |
| Display: Screen size | 54.61 cm (21,5 '') |
| Display: Resolution | 1920 x 1080 pixels (Full HD) Aspect ratio 16:9 |
| Display: Color depth | 24 bit (16.7 M) color |
| Display: Contrast ratio | 22FC: 5000:1 |
| Display: Brightness | 22FC: 300 cd/m2 |
| Display: Viewing angle | 22FC: 170 ° horizontal, 160 ° vertical |
| Display: Life span | 22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) |
| Input devices: Touch screen | 10-finger multi-touch, glove-friendly Configurable display options: 22FC: Capacitive touch, optical bonding |
| Input devices: Keyboard | Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet) |
| Input devices: RFID reader | Optional: Integrated in the VisuNet FLX housing, 2 configuration options available: TWN4 MultiTech 3 M LF HF TWN4 MultiTech 3 LEGIC M LF HF (see RFID20-* technical data) |
Interface
| Interface type | 1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard 2 x USB 3.1 Gen1 (5 Gbps) ports 1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45) |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | Non-RFID products only EN 61000-6-4:2007 EN 61000-6-4:2007/A1:2011 EN 61326-1:2013 |
| Explosion protection: Directive 2014/34/EU | EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018 EN 60079-11:2012 EN IEC 60079-31:2024 |
| Radio and telecommunication terminal equipment: Directive 2014/53/EU | RFID products only EN 301489-1 V2.2.3:2019 EN 301489-3 V2.3.2:2023 EN 300 330 V2.1.1:2017 EN 61326-1:2013 EN 61000-6-4:2007 EN 61000-6-4:2007/A1:2011 EN 61010-1:2010 EN 62479 :2010 EN 62311:2008 |
| RoHS: Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
Software
| Operating system | Windows® 10 IoT Enterprise LTSC 2021 x64 |
Ambient conditions
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | max. relative humidity 93% at 50°C (non-condensing) according to EN60068-2-78 |
| Climatic conditions | Passive cooling, no rotating parts. |
| Altitude | Operating altitude max. 2000 m |
| Shock resistance | 18 shocks 15 g, 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6 |
Mechanical specifications
| Degree of protection | IP66 Type 4X: with RFID option for indoor use only |
| Material | Housing: Powder-coated marine-grade aluminum alloy (EN AW-5754) |
| Installation | System with enclosure |

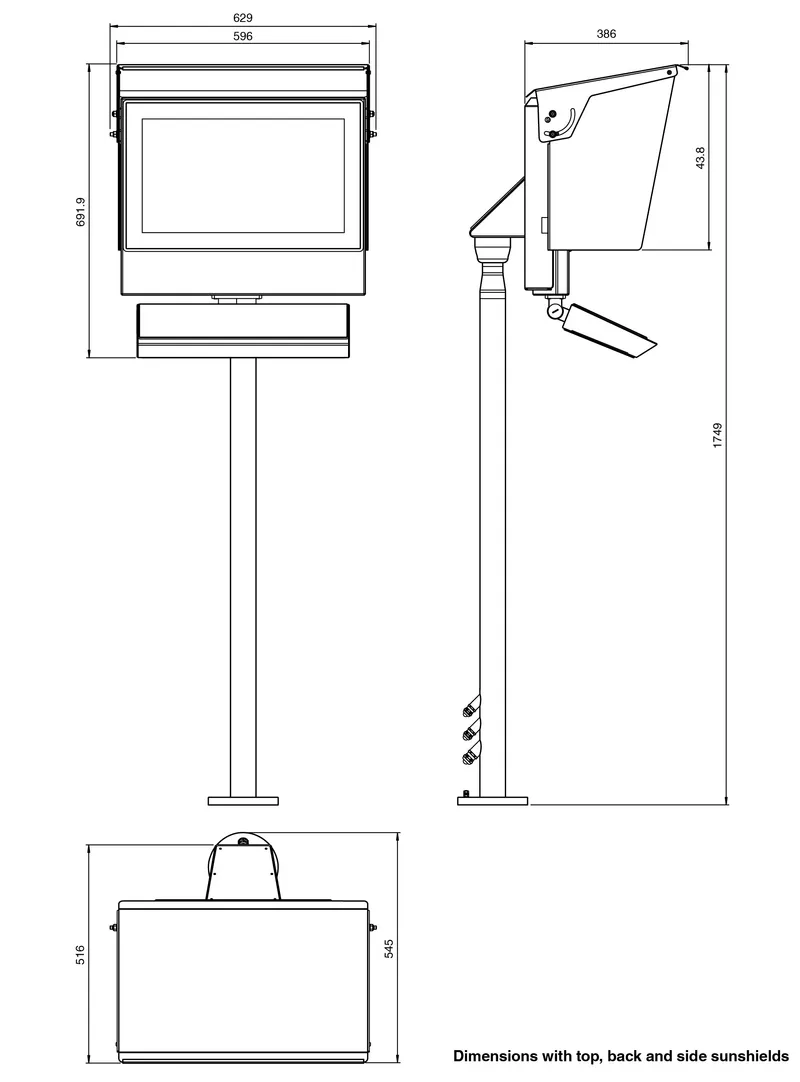

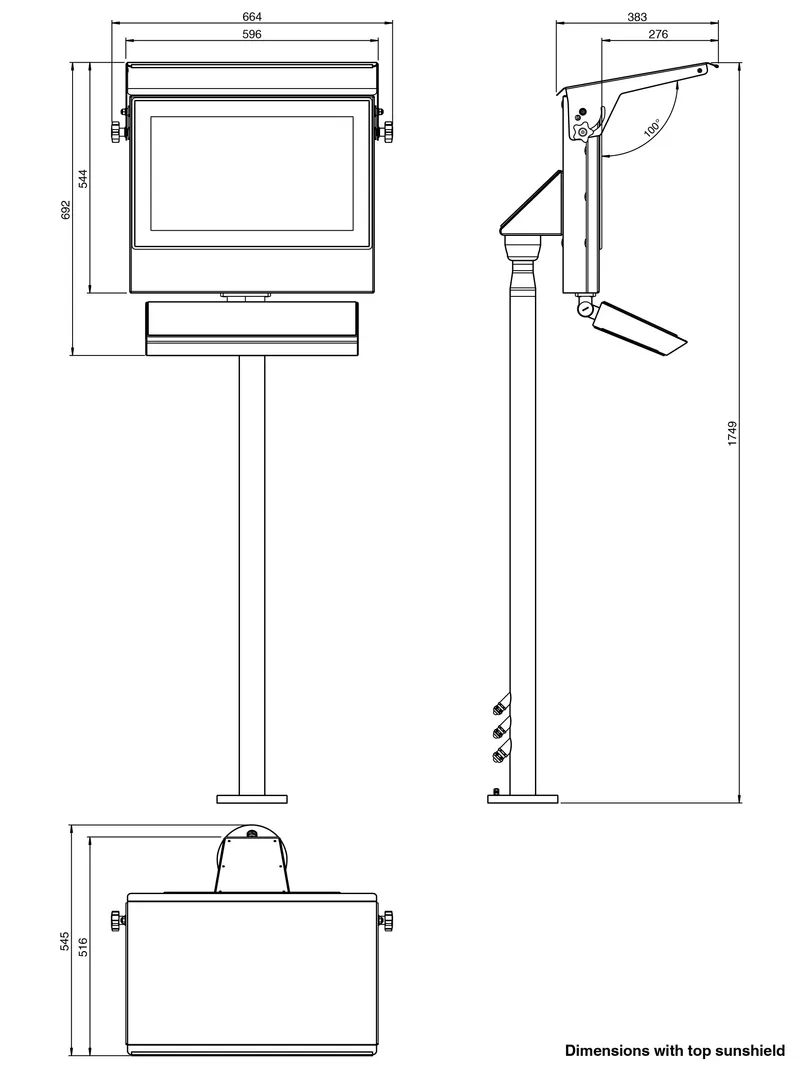

| Mass | Approx. 11.4 kg Approx. 13.4 kg with AC power supply with top sunshield: + Approx. 1.6 kg with top and side sunshield: + Approx. 3 kg |

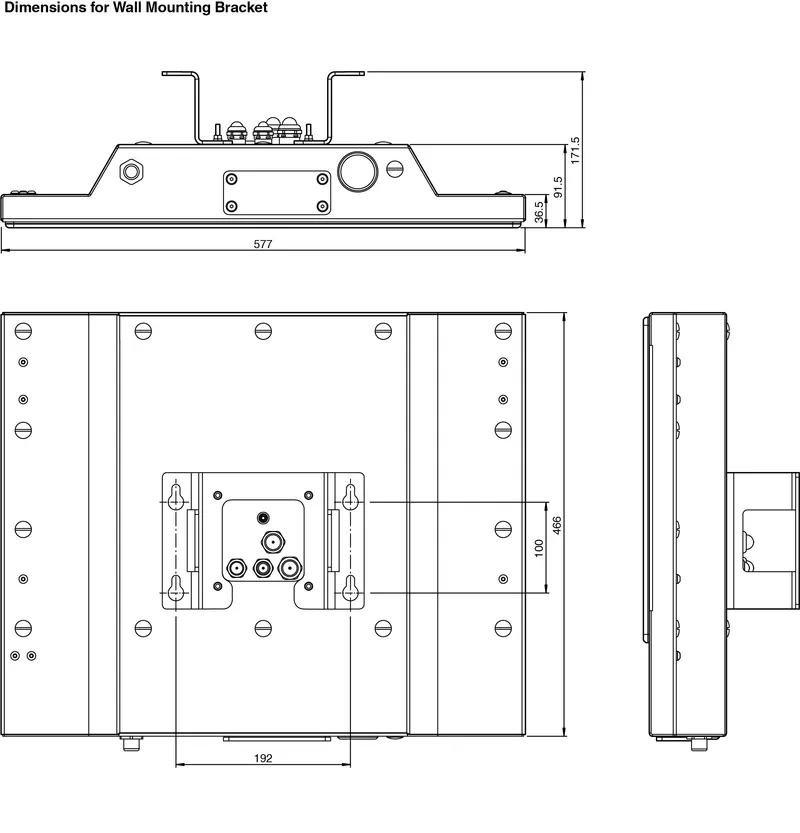

| Dimensions | 577 mm x 466 mm x 233 mm |
International approvals
| UL approval: Approved for | UL OrdLoc UL approval E223772 UL61010-1 Ed.3 UL 61010-2-201 Ed2 CAN/CSA C22.2 No 61010-1-12 CAN/CSA C22.2 No 61010-2-201 UL HazLocUL approval E492874 Non-Incendive circuits for CL I, DIV 2, GP A-D CL II, DIV 2, GP F, G CL III Non-Incendive circuits for CL I, ZN 2, IIC CL II, ZN 22, IIIB CL III, ZN 22, IIIA Install per drawing 116-0478 Mounting in CL I, DIV 2, GP A-D, T4 CL II, DIV 2, GP F, G, T4 CL III Mounting in CL I, ZN 2, IIC, T4 CL II, ZN 22, IIIB, T85°C CL III, ZN 22, IIIA, T85°C |
| ATEX approval: ATEX certificate | UL 22 ATEX 2481X |
| ATEX approval: ATEX marking | II 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc |
| IECEx approval: IECEx certificate | IECEx ULD 22.0019X |
| IECEx approval: IECEx marking | Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc |
| IECEx approval: IECEx standard | IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3 |
| CCC approval: CCC certificate | 2024322309005748 |
| CCC approval: CCC marking | Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc |
| CCC approval: CCC standard | GB 3836.1-2021 GB/T 3836.3-2021 GB/T 3836.4-2021 GB/T 3836.31-2021 |
