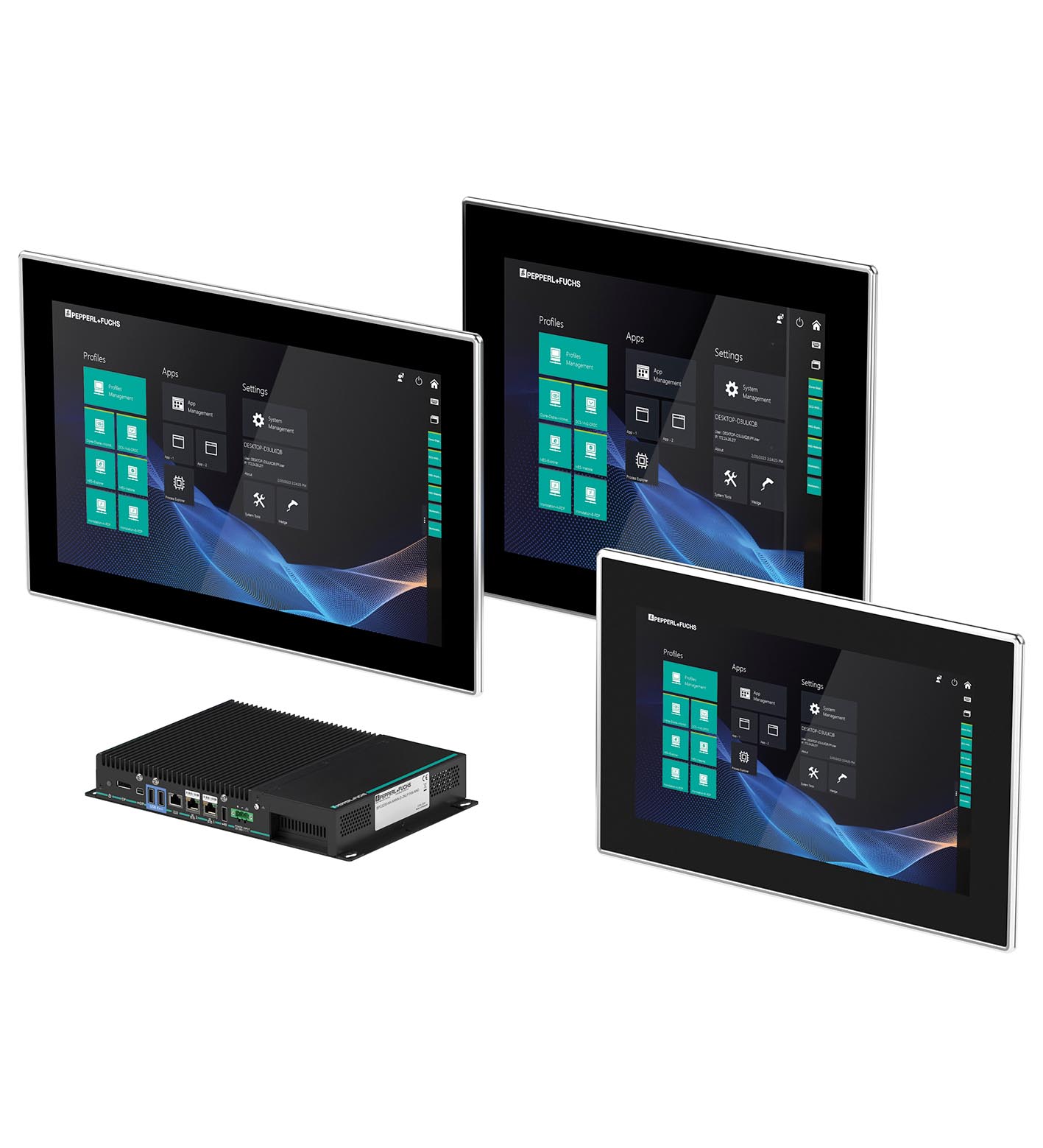

Pepperl Fuchs PC-320P-*

Personal Computer - Panel Mount. Personal Computer - Panel Mount, Large application flexibility due to identical basic components that can be configured as required, Industrial Panel PC: IP66 rating in front panel and IP20 rating in back, Easy installation with available Mounting Kit, Global certifications. Type: Personal Computer. Processor: Intel® Core™ i5-7300U Intel® Celeron™ 3965U. RAM: 2x SO-DIMM slots,supports up to 32 GB DDR4-2133 (one SO-DIMM slot) Configurable RAM options:Industrial temperature grade (temperature option A):B: 1x 8GB DDR4-2133C: 1x 16GB DDR4-2133D: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5] Wide temperature grade (temperature option B):L: 1x 8GB DDR4-2133M: 1x 16GB DDR4-2133P: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5]. Mass storage: Storage interface:1x M.2 2242/2280 M Key, PCIe + SATA 31x M.2 2242/2280 M Key, 2242/2280, SATA 3, supports Raid 0/1 [i5] Configurable storage options:Industrial temperature grade (temperature option A):D: 256 GB M.2 NVMe 1.3 (PCIe 4x)E: 512 GB M.2 NVMe 1.3 (PCIe 4x) Wide temperature grade (temperature option B):P: 256 GB M.2 NVMe 1.3 (PCIe 4x)Q: 512 GB M.2 NVMe 1.3 (PCIe 4x). Input current: max. 3 A, max. 60 W. Power consumption: . DC20 ... 28 V d.c. / 4.0 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.: . DC: 20 ... 28 V d.c. / 4.0 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.. Display: . TypeLiquid Crystal Display (LCD) with LED backlightScreen sizeConfigurable display options:22KT, 22GT: 54.61 cm (21.5") [temperature class A]22FC: 54.61 cm (21.5'')(Display might react sluggishly below 0 °C)19SC: 48.26 cm (19")15FC: 39,62 cm (15,6")Resolution22KT, 22GT, 22FC, 15FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1280 x 1024 pixels (SXGA) Aspect Ratio (5:4)Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:119SC: 1000:115FC: 800:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m219SC: 450 cd/m215FC: 450 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC, 19SC: horizontal: 170 °, vertical: 160 °15FC: 170 ° in all directionsLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F) 22KT, 22FC, 19SC, 15FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F): . Type: Liquid Crystal Display (LCD) with LED backlight. Screen size: Configurable display options:22KT, 22GT: 54.61 cm (21.5") [temperature class A]22FC: 54.61 cm (21.5'')(Display might react sluggishly below 0 °C)19SC: 48.26 cm (19")15FC: 39,62 cm (15,6"). Resolution: 22KT, 22GT, 22FC, 15FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1280 x 1024 pixels (SXGA) Aspect Ratio (5:4). Color depth: 24 bit (16.7 M) color. Contrast ratio: Typically22KT, 22GT: 1000:122FC: 5000:119SC: 1000:115FC: 800:1. Brightness: Configurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m219SC: 450 cd/m215FC: 450 cd/m2. Viewing angle: 22KT, 22GT: 178 ° in all directions22FC, 19SC: horizontal: 170 °, vertical: 160 °15FC: 170 ° in all directions. Life span: 22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F) 22KT, 22FC, 19SC, 15FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F). Input devices: . Touch screenConfigurable Display Options:10-finger multi-touch, glove-friendly22KT, 22GT: Capacitive touch, no optical bonding22FC, 19SC, 15FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet): . Touch screen: Configurable Display Options:10-finger multi-touch, glove-friendly22KT, 22GT: Capacitive touch, no optical bonding22FC, 19SC, 15FC: Capacitive touch, optical bonding. Keyboard: Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet). Interface type: 1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45). Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017: . Directive 2014/30/EU: EN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017. Explosion protection: . Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2014: . Directive 2014/34/EU: EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2014. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating system: Windows® 10 IoT Enterprise LTSC 2021 x64. Operating temperature: Temperature classes:A: 0 … 45 °C (32 … 113 °F)B: -20 … 55 °C (-4 … 131 °F) [with wide temperature grade RAM/storage and optically bonded display unit]. Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78. Climatic conditions: Passive cooling, no rotating parts.. Altitude: Operating altitude max. 2000 m. Shock resistance: 18 shocks 15 g, 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6. Degree of protection: Front side: IP66/Type 4X Back side: IP20. Material: Front bezel: Stainless steel AISI304 (glass, silicone gasket)Backside: Painted aluminum sheet metal. Installation: Panel mount (additional mounting kits available). Mass: 22KT, 22GT, 22FC and 19SC: approx. 8 kg15FC: 5.4 kg. Dimensions: 22 inch: 567 mm x 358 mm x 68 mm19 inch: 485.7 mm x 410.5 mm x 68 mm15 inch: 434 mm x 283.4 mm x 67 mmFor cut out dimensions refer to the VisuNet FLX Panel mount manual.. UL approval: . Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA: . Approved for: UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA. ATEX approval: . ATEX certificateUL 22 ATEX 2479XATEX markingII 3 G Ex ec [ic Gc] IIC T4 GcATEX certificateUL 22 ATEX 2480UATEX markingII 3D Ex tc [ic Dc] IIIC Dc: . ATEX certificate: UL 22 ATEX 2479X. ATEX marking: II 3 G Ex ec [ic Gc] IIC T4 Gc. ATEX certificate: UL 22 ATEX 2480U. ATEX marking: II 3D Ex tc [ic Dc] IIIC Dc. IECEx approval: . IECEx certificateIECEx ULD 22.0017XIECEx markingEx ec [ic Gc] IIC T4 GcIECEx certificateIECEx ULD 22.0018UIECEx markingEx tc [ic Dc] IIIC DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 2: . IECEx certificate: IECEx ULD 22.0017X. IECEx marking: Ex ec [ic Gc] IIC T4 Gc. IECEx certificate: IECEx ULD 22.0018U. IECEx marking: Ex tc [ic Dc] IIIC Dc. IECEx standard: IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 2. CCC approval: . CCC certificate2023322309005728CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021: . CCC certificate: 2023322309005728. CCC marking: Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc. CCC standard: GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021

Specifications
