Pepperl Fuchs PC-320S-A-

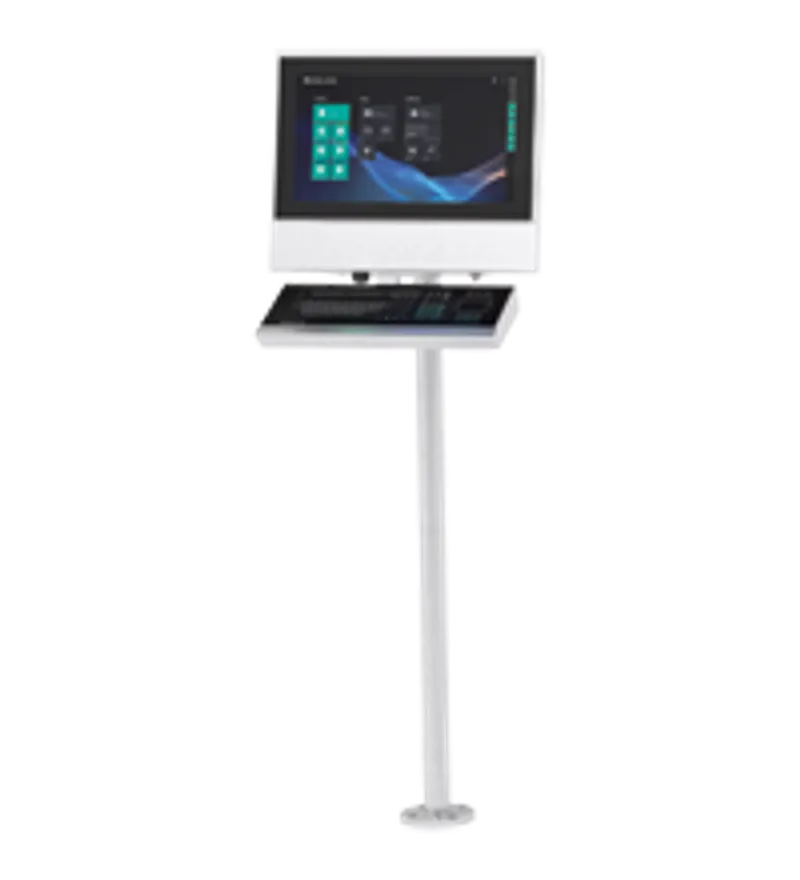

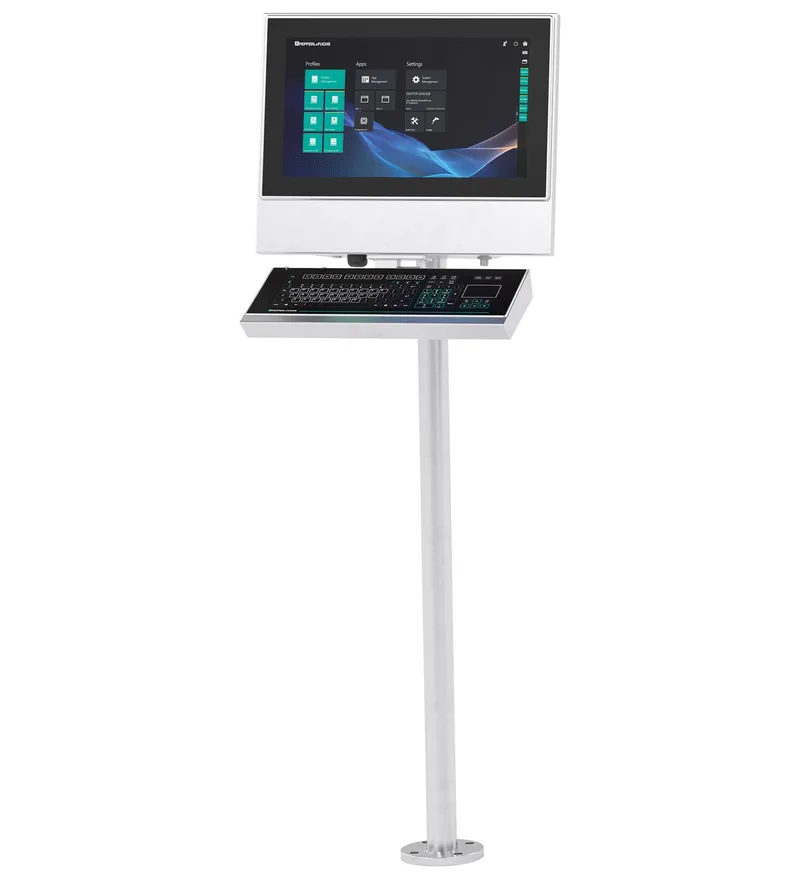

Personal Computer - System with Enclosure

MPN: PC-320S-*A-*
Category: Industrial Monitors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs PC-320S-A-?

Fully modular design which enables easy migration of individual components

Large application flexibility due to identical basic components that can be configured as required

7th generation Intel Celeron

Global certifications

Optional preinstalled RFID20-* reader

Personal Computer - System with Enclosure, Fully modular design which enables easy migration of individual components, Large application flexibility due to identical basic components that can be configured as required, 7th generation Intel Celeron, Global certifications, Optional preinstalled RFID20-* reader

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T193552
Type	Personal Computer
Lifecycle	Active (current Pepperl+Fuchs product)

Hardware

Processor	Intel® Celeron™ 3965U
RAM	2x SO-DIMM slots, supports up to 32 GB DDR4-2133 (one SO-DIMM slot) Configurable RAM options: Industrial temperature grade (temperature option A): A: 1x 4GB DDR4-2133 [Celeron] B: 1x 8GB DDR4-2133 C: 1x 16GB DDR4-2133 D: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5]
Mass storage	Storage interface: 1x M.2 2242/2280 M Key, PCIe + SATA 3 Configurable storage options: Industrial temperature grade (temperature option A): A: 32 GB M.2 SATA 3 [Celeron] D: 256 GB M.2 NVMe 1.3 (PCIe 4x) E: 512 GB M.2 NVMe 1.3 (PCIe 4x)

Supply

Power consumption: AC	A: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.7 A, max. 70 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.
Power consumption: DC	D: 20 ... 28 V d.c. / 2.8 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.

Indicators/operating means

Display: Type	Liquid Crystal Display (LCD) with LED backlight
Display: Screen size	54.61 cm (21,5 '')
Display: Resolution	1920 x 1080 pixels (Full HD) Aspect ratio 16:9
Display: Color depth	24 bit (16.7 M) color
Display: Contrast ratio	Typically 22KT, 22GT: 1000:1 22FC: 5000:1
Display: Brightness	Configurable display options: 22KT, 22GT: 250 cd/m2 22FC: 300 cd/m2
Display: Viewing angle	22KT, 22GT: 178 ° in all directions 22FC: 170 ° horizontal, 160 ° vertical
Display: Life span	22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F) 22KT, 22FC: back lamp life: 50.000 hr
Input devices: Touch screen	10-finger multi-touch, glove-friendly Configurable display options: 22KT, 22GT: Capacitive touch, no optical bonding 22FC: Capacitive touch, optical bonding
Input devices: Keyboard	Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)
Input devices: RFID reader	Optional: Integrated in the VisuNet FLX housing, 2 configuration options available: TWN4 MultiTech 3 M LF HF TWN4 MultiTech 3 LEGIC M LF HF (see RFID20-* technical data)

Interface

Interface type

1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard 2 x USB 3.1 Gen1 (5 Gbps) ports 1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45)

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU	Non-RFID products only EN 61000-6-4:2007 EN 61000-6-4:2007/A1:2011 EN 61326-1:2013
Explosion protection: Directive 2014/34/EU	EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018 EN 60079-11:2012 EN IEC 60079-31:2024
Radio and telecommunication terminal equipment: Directive 2014/53/EU	RFID products only EN 301489-1 V2.2.3:2019 EN 301489-3 V2.3.2:2023 EN 300 330 V2.1.1:2017 EN 61326-1:2013 EN 61000-6-4:2007 EN 61000-6-4:2007/A1:2011 EN 61010-1:2010 EN 62479 :2010 EN 62311:2008
RoHS: Directive 2011/65/EU (RoHS)	EN IEC 63000:2018

Software

Operating system

Windows® 10 IoT Enterprise LTSC 2021 x64

Ambient conditions

Operating temperature	0 ... 40 °C (32 ... 104 °F)
Storage temperature	-20 ... 65 °C (-4 ... 149 °F)
Relative humidity	max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78
Climatic conditions	Passive cooling, no rotating parts.
Altitude	Operating altitude max. 2000 m
Shock resistance	18 shocks 15 g, 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6

Mechanical specifications

Degree of protection	IP66 Type 4X: with RFID option for indoor use only
Material	Housing: Stainless steel AISI304 (1.4301) Surface finish: Bead blasted, typical surface roughness 0.8 µm
Installation	System with enclosure
Mass	approx. 16 kg approx. 18 kg with AC Power Supply

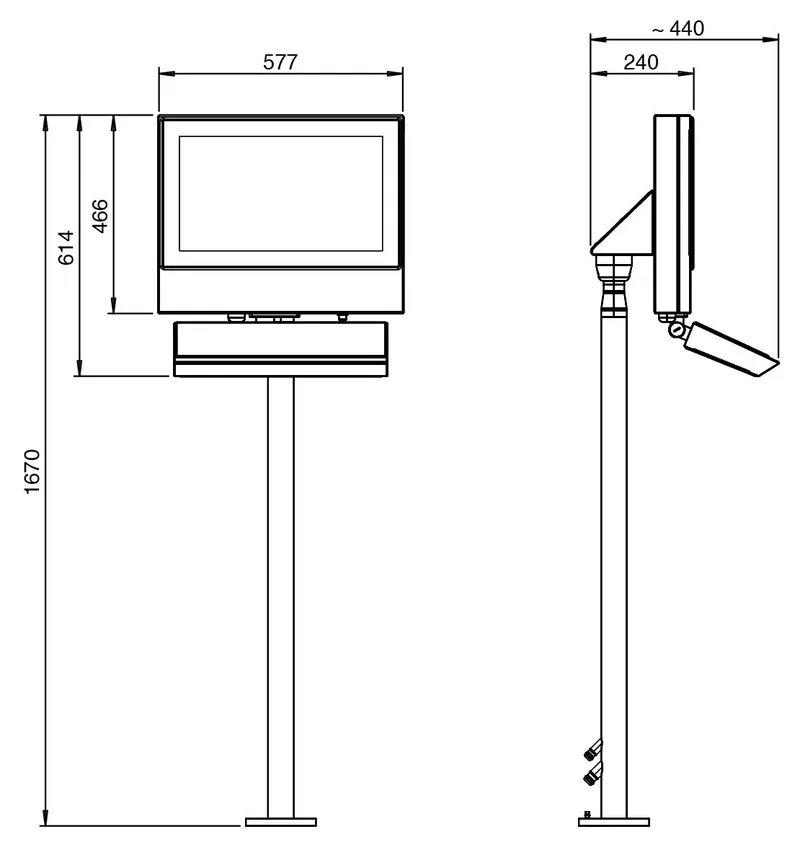

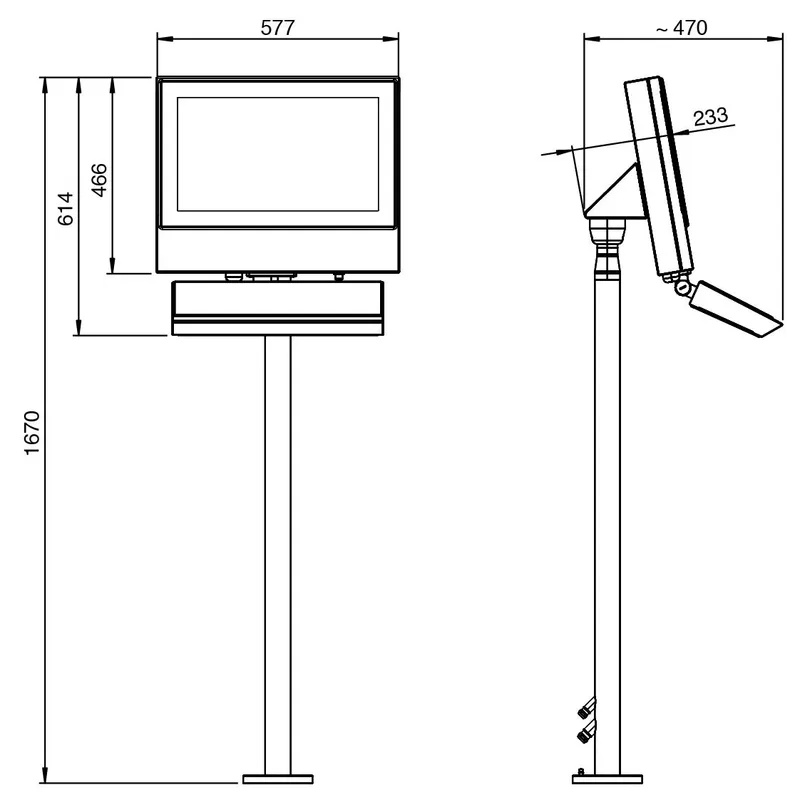

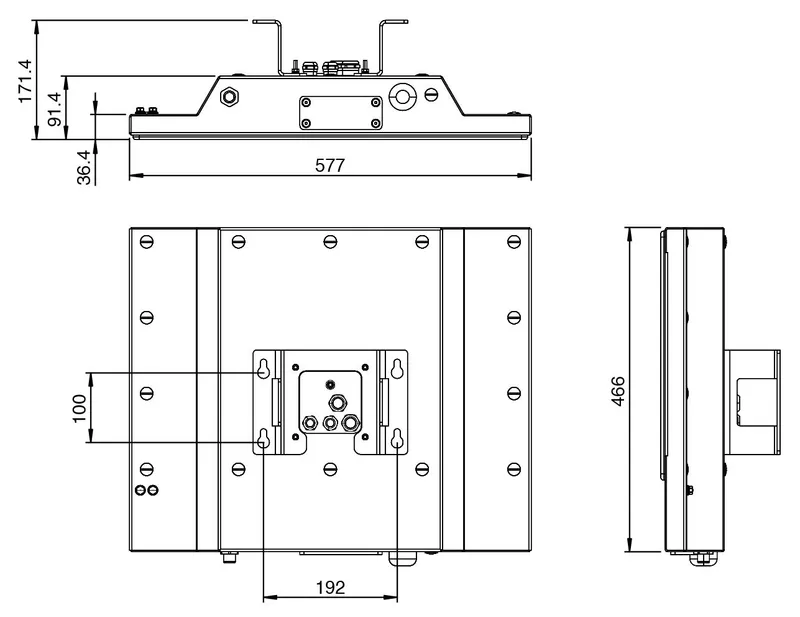

Dimensions	577 mm x 466 mm x 233 mm

International approvals

UL approval: Approved for	UL OrdLoc UL approval E223772 UL61010-1 Ed.3 UL 61010-2-201 Ed2 CAN/CSA C22.2 No 61010-1-12 CAN/CSA C22.2 No 61010-2-201 UL approval E492874 Non-Incendive circuits for CL I, DIV 2, GP A-D CL II, DIV 2, GP F, G CL III Non-Incendive circuits for CL I, ZN 2, IIC CL II, ZN 22, IIIB CL III, ZN 22, IIIA Install per drawing 116-0478 Mounting in CL I, DIV 2, GP A-D, T4 CL II, DIV 2, GP F, G, T4 CL III Mounting in CL I, ZN 2, IIC, T4 CL II, ZN 22, IIIB, T85°C CL III, ZN 22, IIIA, T85°C
ATEX approval: ATEX certificate	UL 22 ATEX 2481X
ATEX approval: ATEX marking	II 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc
IECEx approval: IECEx certificate	IECEx ULD 22.0019X
IECEx approval: IECEx marking	Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc
IECEx approval: IECEx standard	IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3
CCC approval: CCC certificate	2024322309005748
CCC approval: CCC marking	Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc
CCC approval: CCC standard	GB 3836.1-2021 GB/T 3836.3-2021 GB/T 3836.4-2021 GB/T 3836.31-2021
