Pepperl Fuchs MB-15/32GM25-E0-1.27M-4MOL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MB-15/32GM25-E0-1.27M-4MOL be shipped?
MB-15/32GM25-E0-1.27M-4MOL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MB-15/32GM25-E0-1.27M-4MOL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MB-15/32GM25-E0-1.27M-4MOL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MB-15/32GM25-E0-1.27M-4MOL, subject to availability and destination.
Magnetic field sensor. Switching function: Normally open (NO), Output type: NPN, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Operating voltage: 4.5 ... 24 V DC, Connection type: fixed cable with plug, Housing material: Aluminum, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NPN. Output polarity: DC. Output type: 3-wire. Operating voltage: 4.5 ... 24 V DC. Operating current: 20 mA max. No-load supply current: 10 mA max. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Connection type: fixed cable with plug. Housing material: Aluminum. Sensing face: Aluminum. Degree of protection: IP67. Connector: . Number of pins3Connection assemblyMolex connector 39-00-2040 Molex contact 39-00-0139: . Number of pins: 3. Connection assembly: Molex connector 39-00-2040 Molex contact 39-00-0139. Cable: . MaterialPVCColorGrayNumber of cores3Core cross section0.34 mm2LengthL1.27 m: . Material: PVC. Color: Gray. Number of cores: 3. Core cross section: 0.34 mm2. Length: 1.27 m. Dimensions: . Length23.9 mmDiameter11.9 mmThread size15/32" - 32: . Length: 23.9 mm. Diameter: 11.9 mm. Thread size: 15/32" - 32
Specifications
General specifications

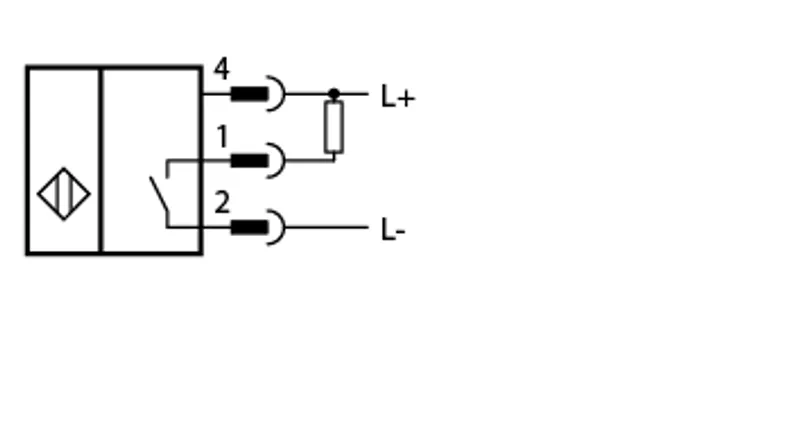

| Switching function | Normally open (NO) |
| Output type | NPN |
| Output polarity | DC |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 4.5 ... 24 V DC UB |
| Operating current | 20 mA max IL |
| No-load supply current | 10 mA max I0 |
Ambient conditions
| Ambient temperature | -40 ... 105 °C (-40 ... 221 °F) |
Mechanical specifications
| Connection type | fixed cable with plug |
| Housing material | Aluminum |
| Sensing face | Aluminum |
| Degree of protection | IP67 |
| Connector | |
| Number of pins3Connection assemblyMolex connector 39-00-2040 Molex contact 39-00-0139 | Number of pins |
| Number of pins | 3 |
| Connection assembly | Molex connector 39-00-2040 Molex contact 39-00-0139 |
| Cable | |
| MaterialPVCColorGrayNumber of cores3Core cross section0.34 mm2LengthL1.27 m | Material |
| Material | PVC |
| Color | Gray |
| Number of cores | 3 |
| Core cross section | 0.34 mm2 |
| Length | 1.27 m L |

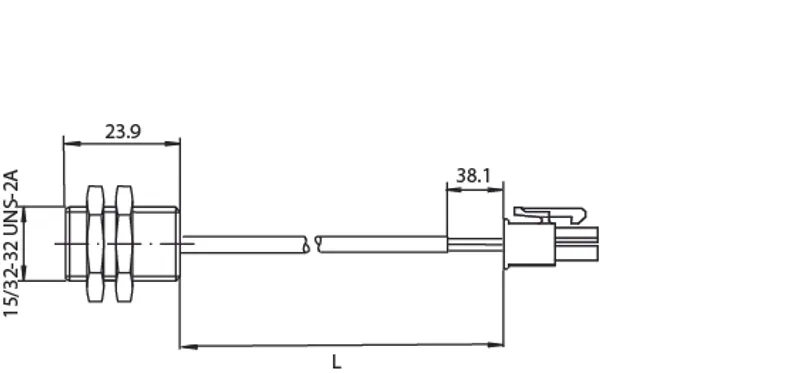

| Dimensions | |
| Length23.9 mmDiameter11.9 mmThread size15/32" - 32 | Length |
| Length | 23.9 mm |
| Diameter | 11.9 mm |
| Thread size | 15/32" - 32 |
More Pepperl Fuchs parts
Available on requestPepperl Fuchs Magnet-Ex 12

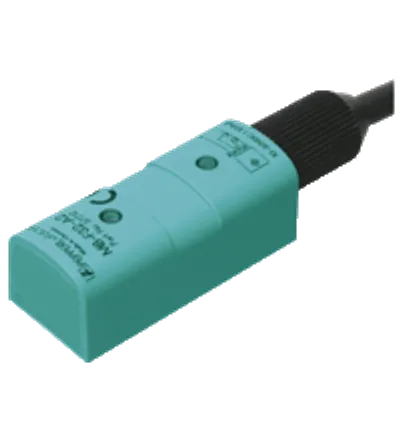

Available on requestPepperl Fuchs MB-F32-A2
