Pepperl Fuchs Magnet-Ex 12
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Measurement and Other Tools |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can Magnet-Ex 12 be shipped?
Magnet-Ex 12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Magnet-Ex 12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Magnet-Ex 12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Magnet-Ex 12, subject to availability and destination.

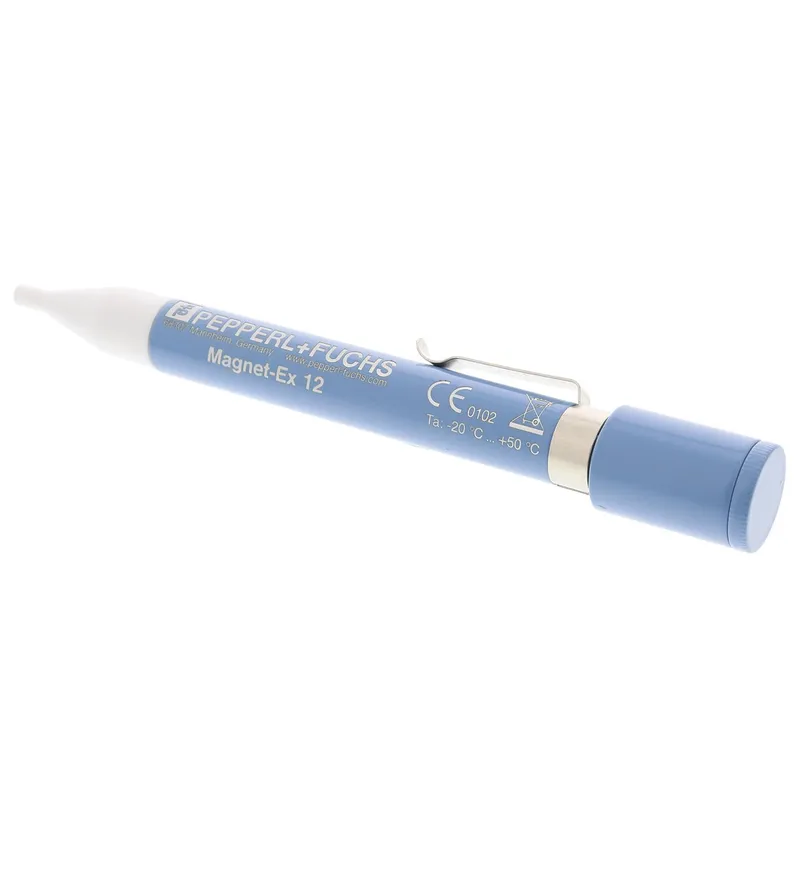

Explosion-protected Magnet Probe. Explosion-protected Magnet Probe Magnet-Ex 12 for Zone 1. Function: Alternating, direct and permanent fields. Power supply: 2x LR03 according to IEC (type approved). Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -40 ... 60 °C (-40 ... 140 °F). Degree of protection: IP54. Mass: approx. 60 g with Batteries. Dimensions: 150 mm x 18 mm. ATEX approval: . ATEX certificatePTB 01 ATEX 2018ATEX marking II 2G Ex ia IIC T4 Gb: . ATEX certificate: PTB 01 ATEX 2018. ATEX marking: II 2G Ex ia IIC T4 Gb. Scope of delivery: Magnet-Ex 12 Batteries Documentation
Specifications
General specifications
| Function | Alternating, direct and permanent fields |
Electrical specifications
| Power supply | 2x LR03 according to IEC (type approved) |
Ambient conditions
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -40 ... 60 °C (-40 ... 140 °F) |
Mechanical specifications
| Degree of protection | IP54 |
| Mass | approx. 60 g with Batteries |
| Dimensions | 150 mm x 18 mm |
Data for application in connection with hazardous areas
| ATEX approval | |
| ATEX certificatePTB 01 ATEX 2018ATEX marking II 2G Ex ia IIC T4 Gb | ATEX certificate |
| ATEX certificate | PTB 01 ATEX 2018 |
| ATEX marking | II 2G Ex ia IIC T4 Gb |
General information
| Scope of delivery | Magnet-Ex 12 Batteries Documentation |
