Pepperl Fuchs LB9568-T8*-*-***-**-*-Y*
Field Unit, Stainless Steel
- MPN
- LB9568-T8*-*-***-**-*-Y*
- Category
- LB (Zone 2, Class I/Div. 2)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs LB9568-T8*-*-***-**-*-Y*?
Preconfigured enclosures for engineered LB systems
Max. 68 slots for I/O modules
Installation in Zone 2 or safe area
Impact resistance enclosure, IP66
For PROFIBUS DP, PROFIBUS DP V1, PROFINET, and MODBUS RTU

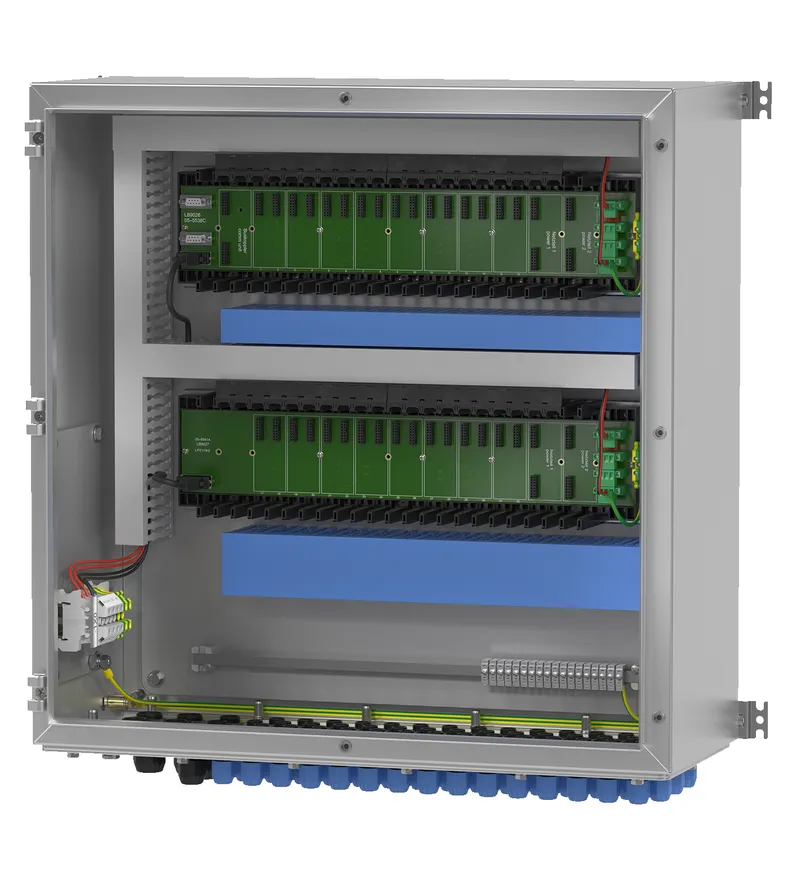

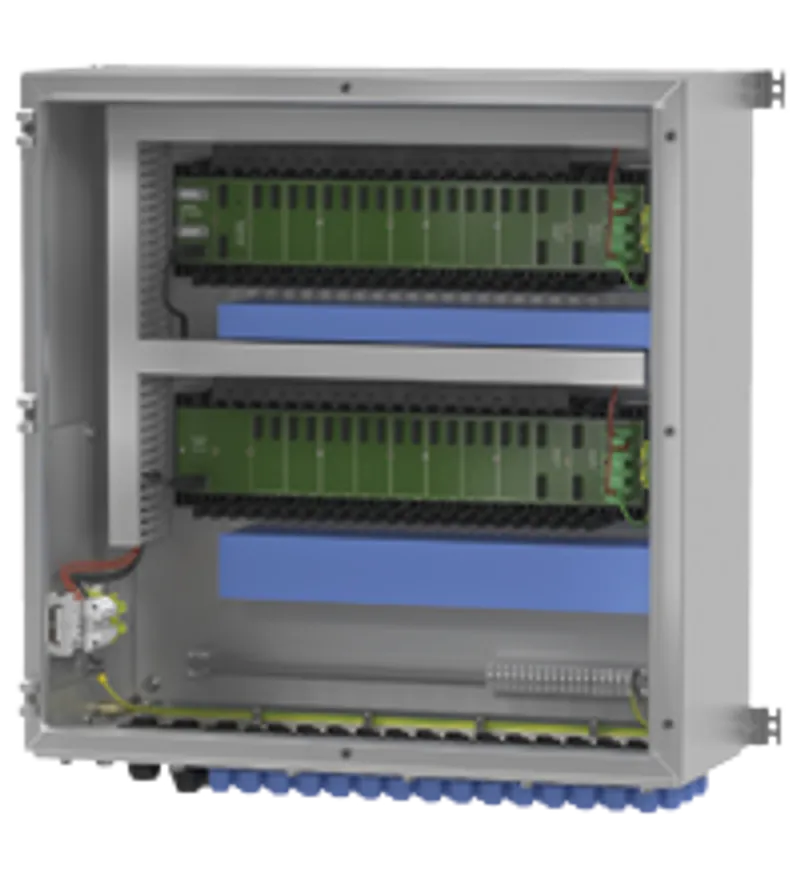

Image is generic for this device type and may deviate from the specific variant
Preconfigured enclosures for engineered LB systems, Max. 68 slots for I/O modules, Installation in Zone 2 or safe area, Impact resistance enclosure, IP66, Number of modules: 32, Material: Stainless steel, Fieldbus type: PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T197139 |
| Installed components | backplane LB9022A , backplane LB9024A |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Slots
| Bus coupler | 2 |
| Supply | 6 |
| I/O modules (single width) | max. 68 |
| I/O modules (dual width) | max. 34 |
Supply
| Connection | screw terminals, max. 10 mm2 |
| Rated voltage | 24 V DC Ur |
| Redundancy | no |
Fieldbus connection
| Fieldbus type | PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler |
| Connection | 9-pin Sub-D connector (not included with delivery) |
| Redundancy | no |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61439-1:2012 (J.9.2.2 b) , EN 61439-2:2012 |
Conformity
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
Ambient conditions
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) further on request |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | < 75 % (annual mean) < 95 % (30 d/year), no moisture condensation |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Impact resistance | 7J |
Mechanical specifications
| Enclosure cover | hinged door with quarter-turn key locks |
| Cover seal | foamed silicone |
| Degree of protection | IP66 |
| Cable entry face B: M16 quantity | 192 |
| Cable entry face B: M16 series | Cable Glands, Plastic |
| Cable entry face B: M16 type | CG.PIDS1.M16.* |
| Cable entry face B: M16 clamping range | 4 ... 8 mm |
| Cable entry face B: M16 info | field signals |
| Cable entry face B: M20 quantity | 4 |
| Cable entry face B: M20 series | Cable Glands, Plastic |
| Cable entry face B: M20 type | CG.PEDS1.M20.* |
| Cable entry face B: M20 clamping range | 6 ... 12 mm |
| Cable entry face B: M20 info | Fieldbus |
| Cable entry face B: M25 quantity | 2 |
| Cable entry face B: M25 series | Cable Glands, Plastic |
| Cable entry face B: M25 type | CG.PEDS1.M25.* |
| Cable entry face B: M25 clamping range | 10 ... 18 mm |
| Cable entry face B: M25 info | Power Supply |
| Terminal assembly: Number of vertical rails | 4 |
| Terminal assembly: Usable length per horizontal rail | 240 mm |
| Terminal assembly: Terminal type | max. 44 spring terminal or screw terminal |
| Material: Cable gland | Polyamide (PA) |
| Material: Seal | housing: foamed silicone cable gland: chloroprene |
| Mass | approx. 25 kg , without modules |

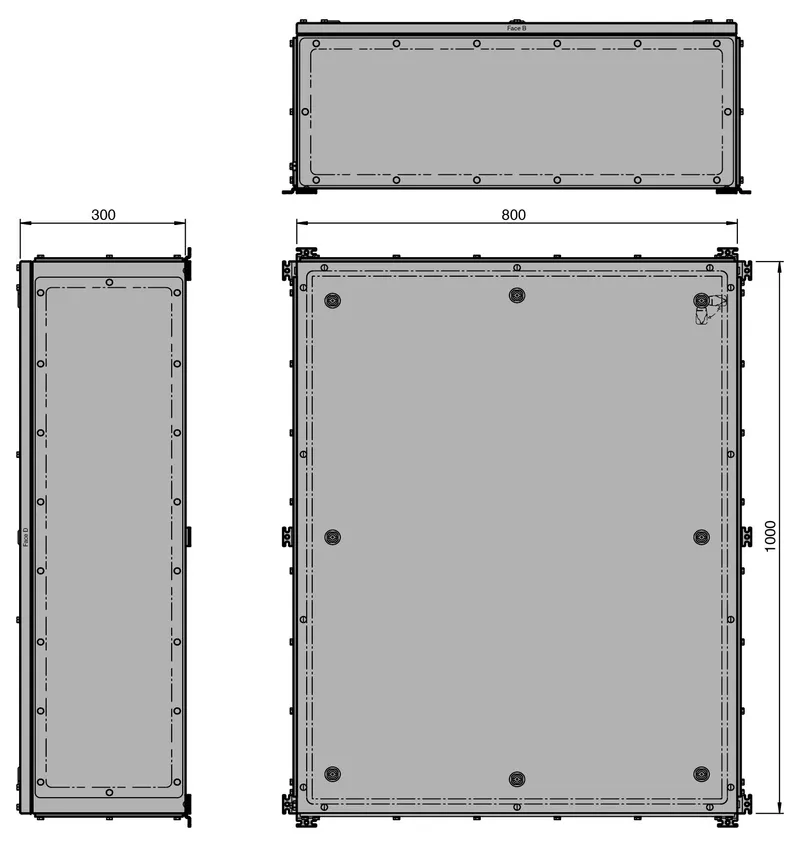

| Dimensions: External dimension (A) | 1000 mm |
| Dimensions: External dimension (B) | 800 mm |
| Dimensions: External dimension (C) | 260 mm |
| Mounting | 4 Mounting bracket for wall mounting included in the scope of delivery |
| Grounding | M8 internal/external brass nickel-plated grounding bolt |
Data for application in connection with hazardous areas
| EU-type examination certificate: Marking | II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc |
| Certificate | PF 16 CERT 1267 X |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
