Home / Industrial Communication and Interfaces / Remote I/O Systems / LB (Zone 2, Class I/Div. 2)

LB (Zone 2, Class I/Div. 2) Parts

Pepperl Fuchs

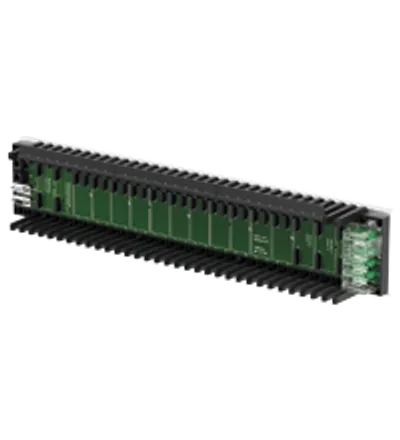

LB9022BP22320.2.E

Redundancy Base Backplane

Pepperl Fuchs

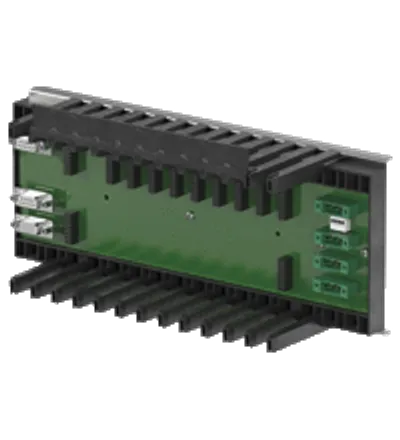

LB9023BP08110.2

Base Backplane

Pepperl Fuchs

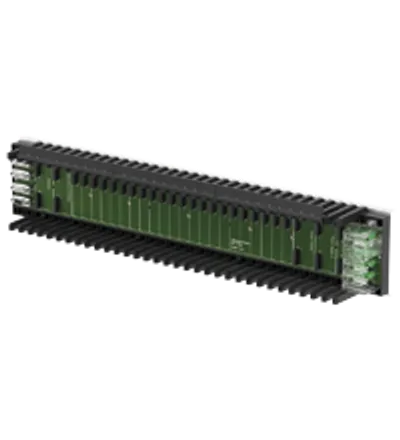

LB9022BP22320.2

Redundancy Base Backplane

Pepperl Fuchs

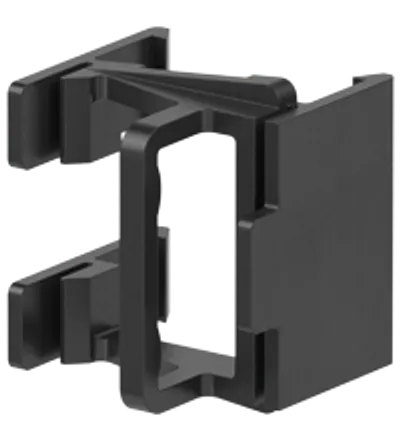

LB9230B

Retaining clips

Pepperl Fuchs

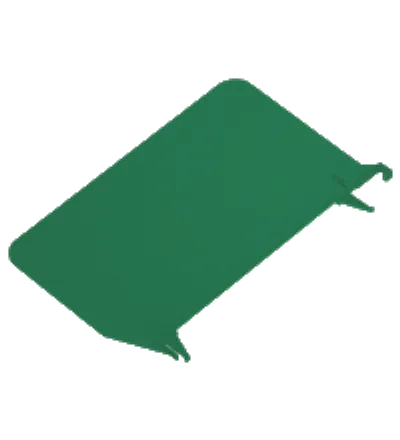

LB9182A

Separation Wall

Pepperl Fuchs

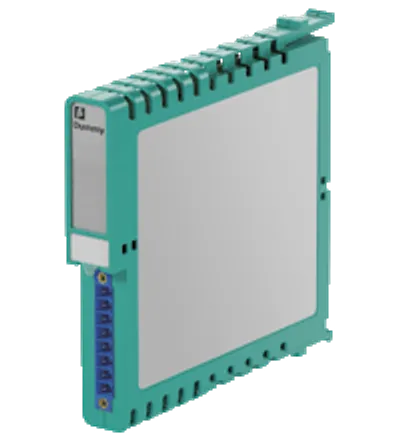

LB9199

Place Holder Module

Pepperl Fuchs

LB9099

Place Holder Module

Pepperl Fuchs

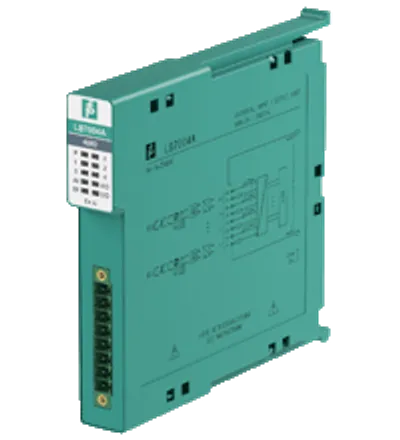

LB7004E

Universal Input/Output

Pepperl Fuchs

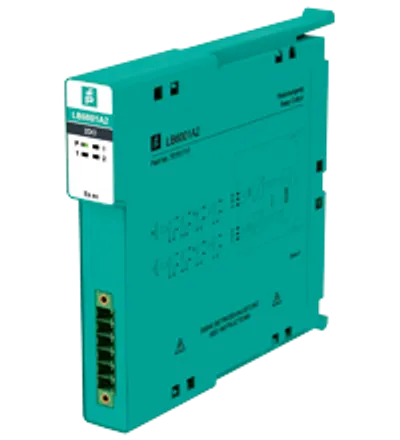

LB6001A2

Relay output

Pepperl Fuchs

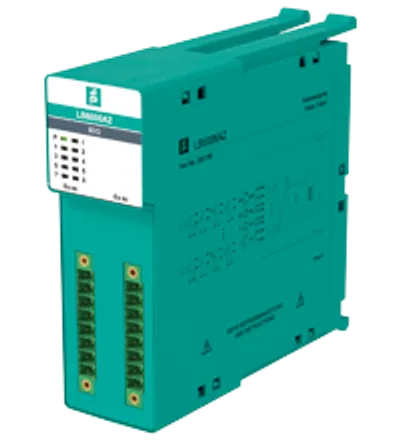

LB6006A2

Relay output

Pepperl Fuchs

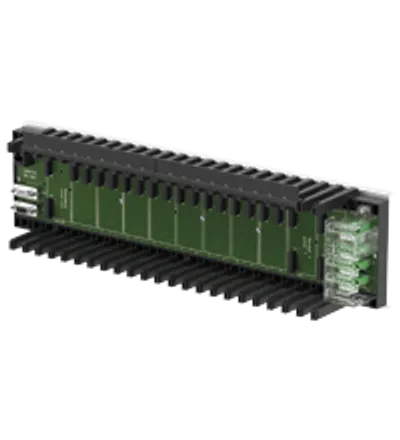

LB9026BP16210.0.E

Base Backplane

Pepperl Fuchs

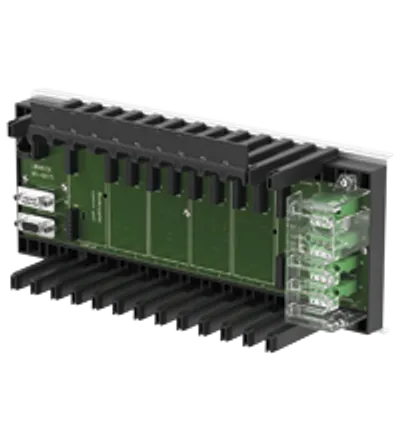

LB9023BP08110.0.E

Base Backplane

Pepperl Fuchs

LB9022BP22320.0.E

Redundancy Base Backplane

Pepperl Fuchs

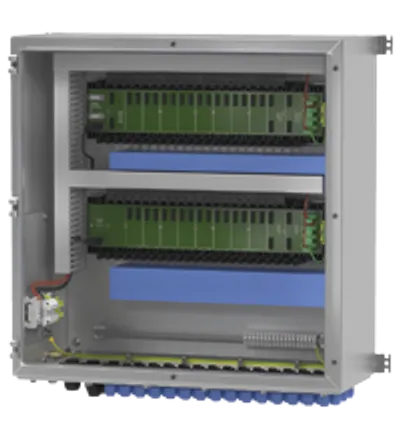

LB9568-T8*-*-***-**-*-Y*

Field Unit, Stainless Steel

Pepperl Fuchs

LB9532-T60-B-0A0-00-0

Field Unit, Stainless Steel

Pepperl Fuchs

LB9516-T6*-B-M**-**-*-Y*

Field Unit, Stainless Steel

Pepperl Fuchs

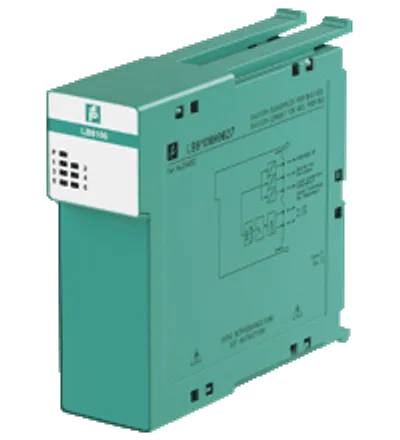

LB8106H0630

EasyCom Com Unit for PROFIBUS DP/DP-V1

Pepperl Fuchs

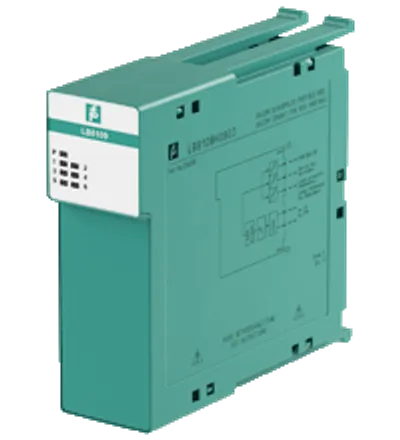

LB8109H0908

Unicom Com Unit for PROFIBUS DP/DP-V1

Pepperl Fuchs

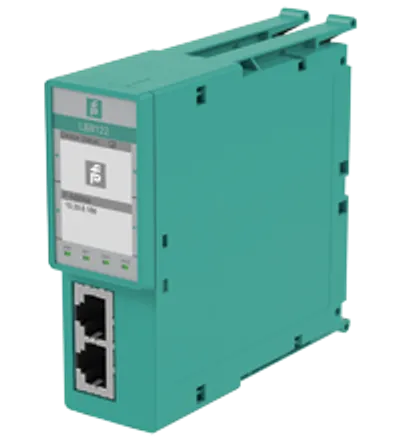

LB8122A.1.EL

Gateway for PROFINET

Pepperl Fuchs

LB8111A2-0756

Com Unit for MODBUS TCP

Pepperl Fuchs

LB8107H0706

Com Unit for MODBUS RTU

Pepperl Fuchs

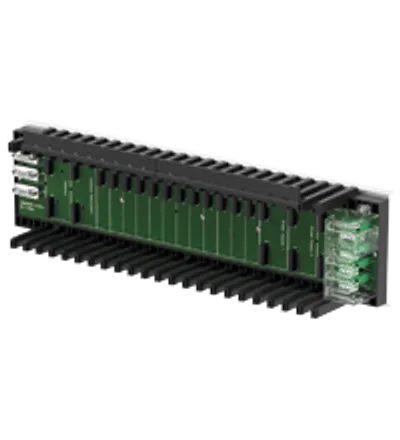

LB9029BP12320.1

Redundancy Base Backplane

Pepperl Fuchs

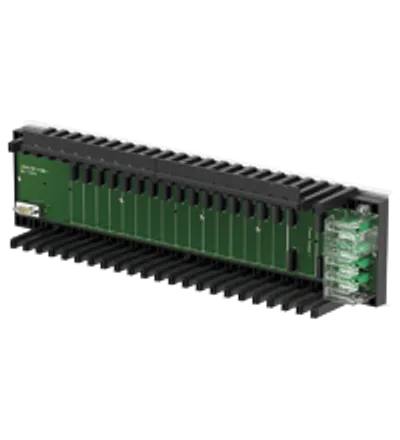

LB9027BP16200.1

Extension Backplane

Pepperl Fuchs

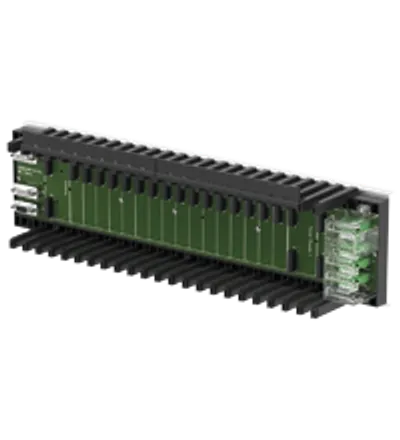

LB9026BP16210.1

Base Backplane

Compare LB (Zone 2, Class I/Div. 2)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Order code (Pepperl+Fuchs part number)	Degree of protection	Mass	Certificate	Marking
LB9022BP22320.2.E	70175189	EN 60529	approx. 2170 g	BVS 16 ATEX E 089 X	II 3G Ex ec IIC T4 Gc
LB9023BP08110.2	70175194	EN 60529	approx. 1010 g	BVS 16 ATEX E 089 X	II 3G Ex ec IIC T4 Gc
LB9022BP22320.2	70175192	EN 60529	approx. 2170 g	BVS 16 ATEX E 089 X	II 3G Ex ec IIC T4 Gc
LB9230B	70145545	—	—	—	—
LB9182A	250188	—	approx. 92 g	—	—
LB9199	281975	IP20 when mounted on backplane	approx. 65 g	—	—
LB9099	294351	IP20 when mounted on backplane	approx. 65 g	—	—
LB7004E	70176489	IEC 60529:2000	approx. 100 g	BVS 12 ATEX E 115 X	II 3 G Ex nA [ic] IIC T4 Gc
LB6001A2	70151717	IEC 60529	approx. 90 g	—	II 3G Ex ec nC IIC T4 Gc
LB6006A2	283188	IEC 60529	approx. 160 g	—	II 3G Ex ec nC IIC T4 Gc
LB9026BP16210.0.E	300989	EN 60529	approx. 1370 g	BVS 16 ATEX E 089 X	II 3 G Ex nA IIC T4 Gc
LB9023BP08110.0.E	300986	EN 60529	approx. 1010 g	BVS 16 ATEX E 089 X	II 3 G Ex nA IIC T4 Gc
LB9022BP22320.0.E	300983	EN 60529	approx. 2170 g	BVS 16 ATEX E 089 X	II 3 G Ex nA IIC T4 Gc
LB9568-T8--*---Y	T197139	EN 60529	approx. 25 kg , without modules	PF 16 CERT 1267 X	—
LB9532-T60-B-0A0-00-0	T197138	EN 60529	approx. 25 kg , without modules	PF 16 CERT 1267 X	—
LB9516-T6-B-M---Y*	T197137	EN 60529	approx. 25 kg , without modules	PF 16 CERT 1267 X	—
LB8106H0630	70106283	IEC 60529	approx. 120 g	PF 08 CERT 1234 X	II 3 G Ex nA IIC T4 Gc
LB8109H0908	70106282	IEC 60529	approx. 120 g	PF 08 CERT 1234 X	II 3 G Ex nA IIC T4 Gc
LB8122A.1.EL	70120382	IEC 60529	approx. 150 g	DEMKO 16 ATEX 1780 X	II 3 G Ex ec IIC T4 Gc
LB8111A2-0756	287583	IEC 60529	approx. 150 g	PF 08 CERT 1234 X	II 3 G Ex nA IIC T4 Gc
LB8107H0706	287581	IEC 60529	approx. 120 g	PF 08 CERT 1234 X	II 3 G Ex nA IIC T4 Gc
LB9029BP12320.1	282735	EN 60529	approx. 1380 g	BVS 16 ATEX E 089 X	II 3 G Ex nA IIC T4 Gc
LB9027BP16200.1	282734	EN 60529	approx. 1340 g	BVS 16 ATEX E 089 X	II 3 G Ex nA IIC T4 Gc
LB9026BP16210.1	282733	EN 60529	approx. 1370 g	BVS 16 ATEX E 089 X	II 3 G Ex nA IIC T4 Gc

Common to all listed parts

Lifecycle

Active (current Pepperl+Fuchs product)
