Pepperl Fuchs LB9516-T6*-B-M**-**-*-Y*
Field Unit, Stainless Steel
- MPN
- LB9516-T6*-B-M**-**-*-Y*
- Category
- LB (Zone 2, Class I/Div. 2)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs LB9516-T6*-B-M**-**-*-Y*?
Preconfigured enclosures for engineered LB systems
Max. 16 slots for I/O modules
Installation in Zone 2 or safe area
Impact resistance enclosure, IP66
For MODBUS TCP/IP
Image is generic for this device type and may deviate from the specific variant
Preconfigured enclosures for engineered LB systems, Max. 16 slots for I/O modules, Installation in Zone 2 or safe area, Impact resistance enclosure, IP66, Number of modules: 16, Material: Stainless steel, Fieldbus type: MODBUS TCP
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T197137 |
| Installed components | backplane LB9023E , backplane LB9025A |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Slots
| Bus coupler | 1 |
| Supply | 2 |
| I/O modules (single width) | max. 16 |
| I/O modules (dual width) | max. 8 |
Supply
| Connection | screw terminals, max. 10 mm2 |
| Rated voltage | 24 V DC Ur |
| Redundancy | no |
Fieldbus connection
| Fieldbus type | MODBUS TCP |
| Connection | RJ-45 connector (not included with delivery) |
| Redundancy | no |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61439-1:2012 (J.9.2.2 b) , EN 61439-2:2012 |
Conformity
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
Ambient conditions
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) further on request |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | < 75 % (annual mean) < 95 % (30 d/year), no moisture condensation |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Impact resistance | 7J |
Mechanical specifications
| Enclosure cover | hinged door with quarter-turn key locks |
| Cover seal | foamed silicone |
| Degree of protection | IP66 |
| Cable entry face B: M16 quantity | 64 |
| Cable entry face B: M16 series | Cable Glands, Plastic |
| Cable entry face B: M16 type | CG.PIDS1.M16.* |
| Cable entry face B: M16 clamping range | 4 ... 8 mm |
| Cable entry face B: M16 info | field signals |
| Cable entry face B: M20 quantity | 4 |
| Cable entry face B: M20 series | Cable Glands, Plastic |
| Cable entry face B: M20 type | CG.PEDS1.M20.* |
| Cable entry face B: M20 clamping range | 6 ... 12 mm |
| Cable entry face B: M20 info | Fieldbus |
| Cable entry face B: M25 quantity | 2 |
| Cable entry face B: M25 series | Cable Glands, Plastic |
| Cable entry face B: M25 type | CG.PEDS1.M25.* |
| Cable entry face B: M25 clamping range | 10 ... 18 mm |
| Cable entry face B: M25 info | Power Supply |
| Terminal assembly: Number of vertical rails | 1 |
| Terminal assembly: Usable length per horizontal rail | 450 mm |
| Terminal assembly: Terminal type | max. 84 spring terminal or screw terminal |
| Material: Cable gland | Polyamide (PA) |
| Material: Seal | housing: foamed silicone cable gland: chloroprene |
| Mass | approx. 25 kg , without modules |

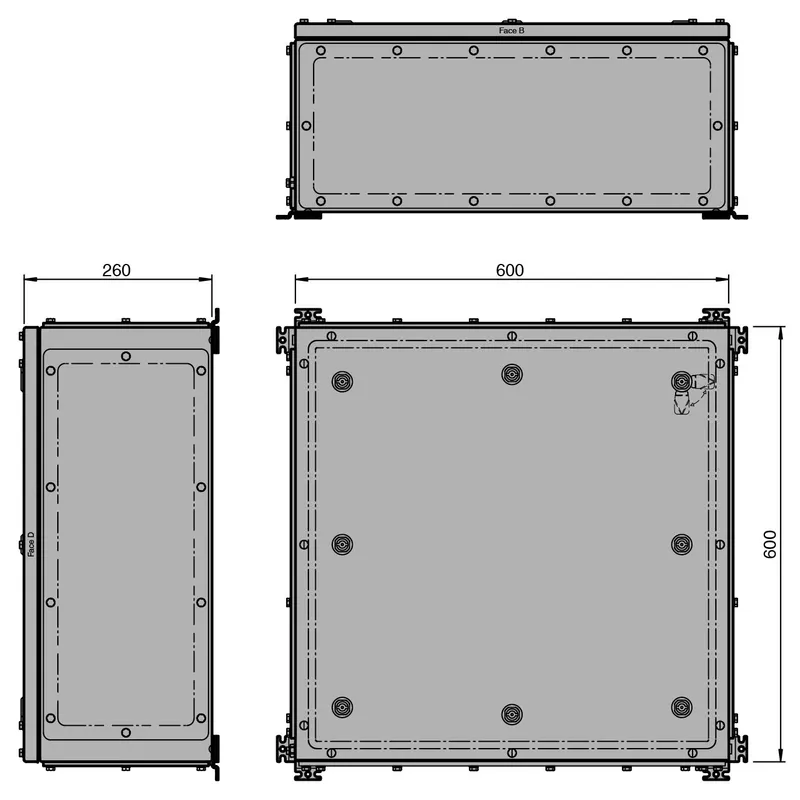

| Dimensions: External dimension (A) | 600 mm |
| Dimensions: External dimension (B) | 600 mm |
| Dimensions: External dimension (C) | 260 mm |
| Mounting | 4 Mounting bracket for wall mounting included in the scope of delivery |
| Grounding | M8 internal/external brass nickel-plated grounding bolt |
Data for application in connection with hazardous areas
| EU-type examination certificate: Marking | II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc |
| Certificate | PF 16 CERT 1267 X |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
