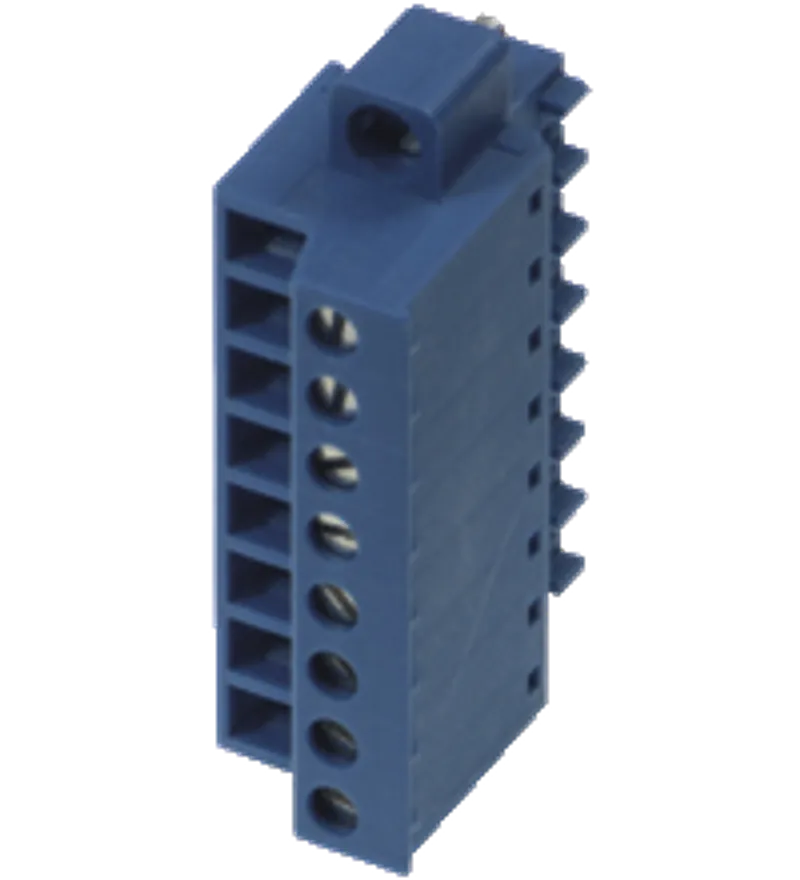

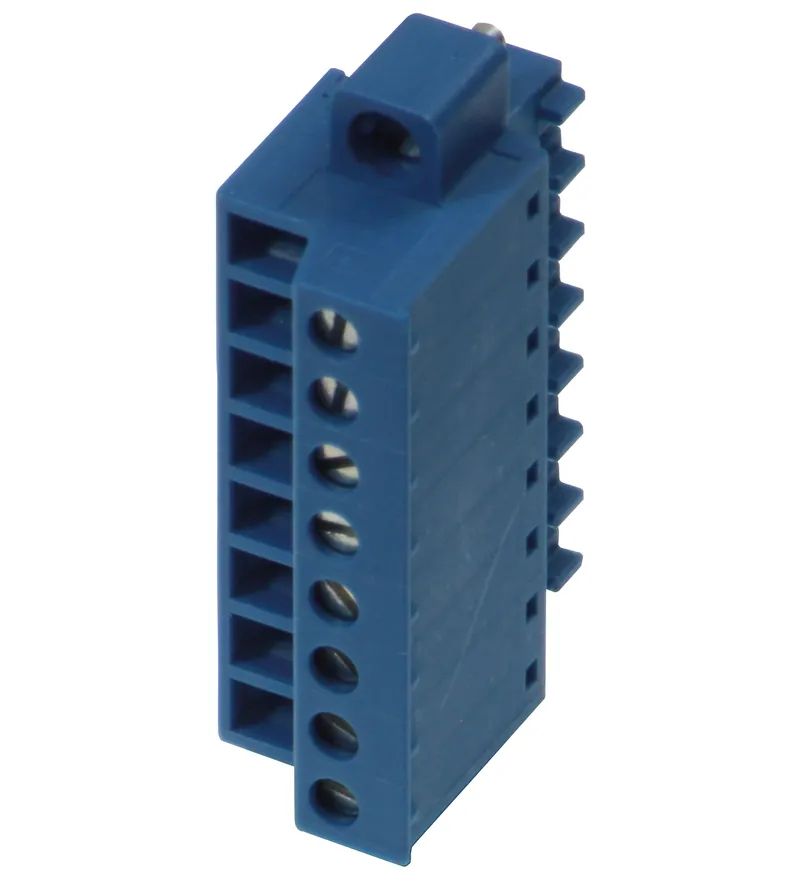

Pepperl Fuchs LB9118A
Terminal Block
- MPN
- LB9118A
- Category
- FB (Zone 1)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs LB9118A?
Front screw terminal
For LB and FB modules
8-pole
Labeled 1 ... 8
Color blue
For Ex ia or Ex ib applications
Front screw terminal, For LB and FB modules, 8-pole, Labeled 1 ... 8, Color blue, For Ex ia or Ex ib applications, Construction type: front screw terminal
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 542056 |
| Number of pins | 8 |
| Labeling | 1 ... 8 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated voltage | 160 V Ur |
| Rated current | 8 A Ir |
Mechanical specifications
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | blue |
| Mass | approx. 5 g |
| Dimensions: H | 12.3 mm |
| Dimensions: W | 21.7 mm |
| Dimensions: L | 40.9 mm |
| Dimensions: Height | 12.3 mm |
| Dimensions: Width | 21.7 mm |
| Dimensions: Length | 40.9 mm |
| Construction type | front screw terminal |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
LB9118A: frequently asked questions
When can LB9118A be shipped?
LB9118A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9118A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9118A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9118A, subject to availability and destination.
