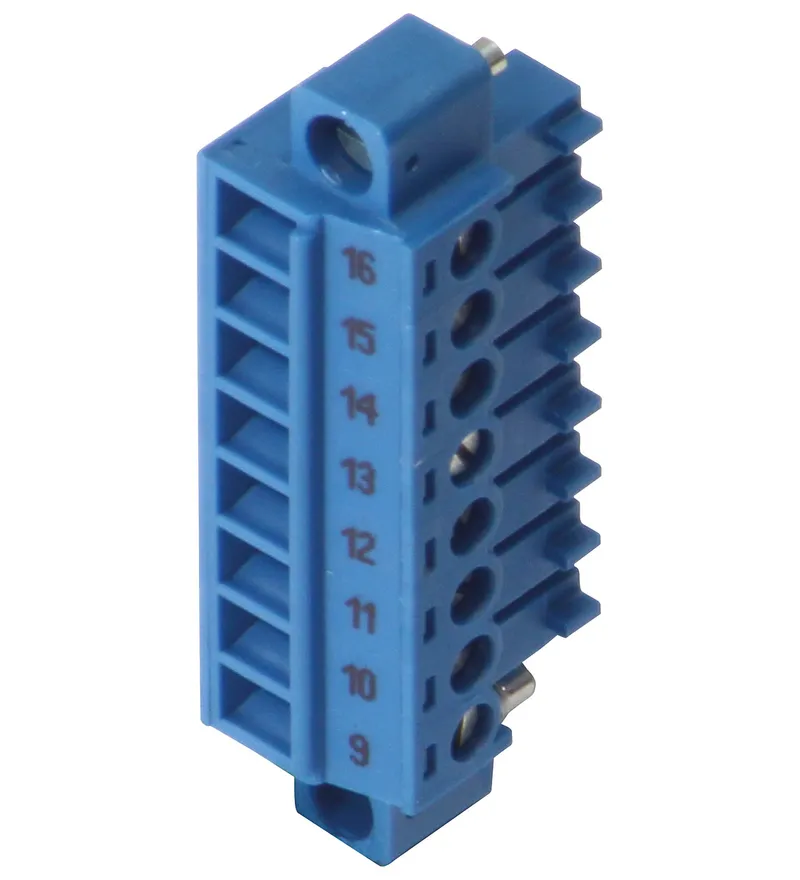

Pepperl Fuchs LB9125A
Terminal Block
- MPN
- LB9125A
- Category
- FB (Zone 1)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs LB9125A?
Screw terminal
For LB and FB modules
8-pole
Labeled 9 ... 16
Color blue
For Ex ia or Ex ib applications
Screw terminal, For LB and FB modules, 8-pole, Labeled 9 ... 16, Color blue, For Ex ia or Ex ib applications, Construction type: screw terminal
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 198650 |
| Number of pins | 8 |
| Labeling | 9 ... 16 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated voltage | 160 V Ur |
| Rated current | 8 A Ir |
Mechanical specifications
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | blue |
| Mass | approx. 5 g |
| Dimensions: H | 11.1 mm |
| Dimensions: W | 15.3 mm |
| Dimensions: L | 40.9 mm |
| Dimensions: Height | 11.1 mm |
| Dimensions: Width | 15.3 mm |
| Dimensions: Length | 40.9 mm |
| Construction type | screw terminal |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
LB9125A: frequently asked questions
When can LB9125A be shipped?
LB9125A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9125A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9125A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9125A, subject to availability and destination.
