Pepperl Fuchs EJBX*

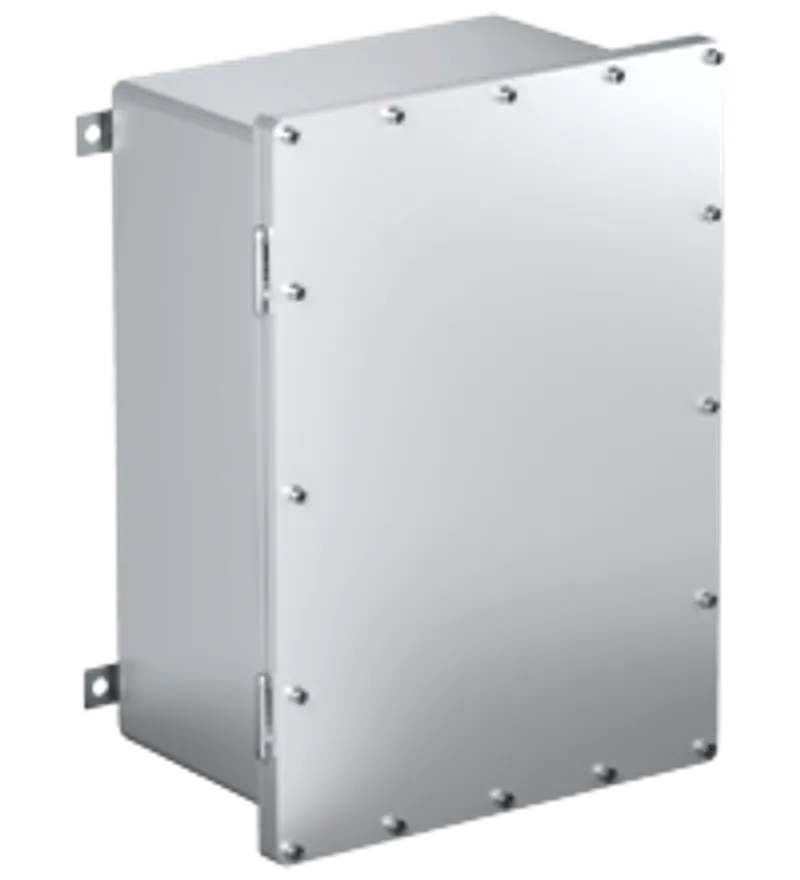

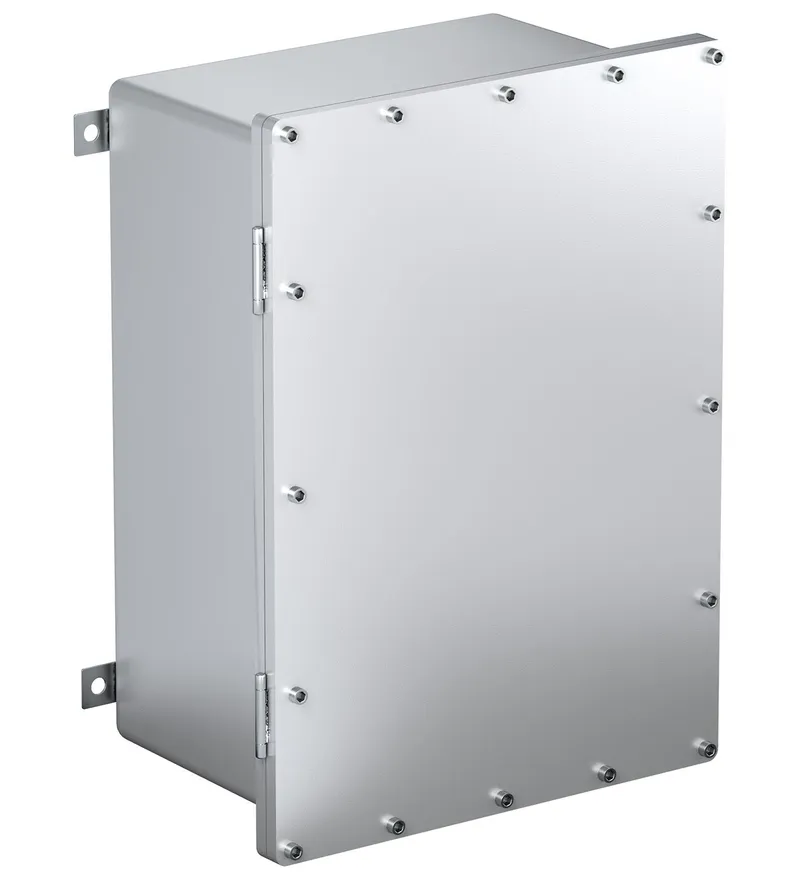

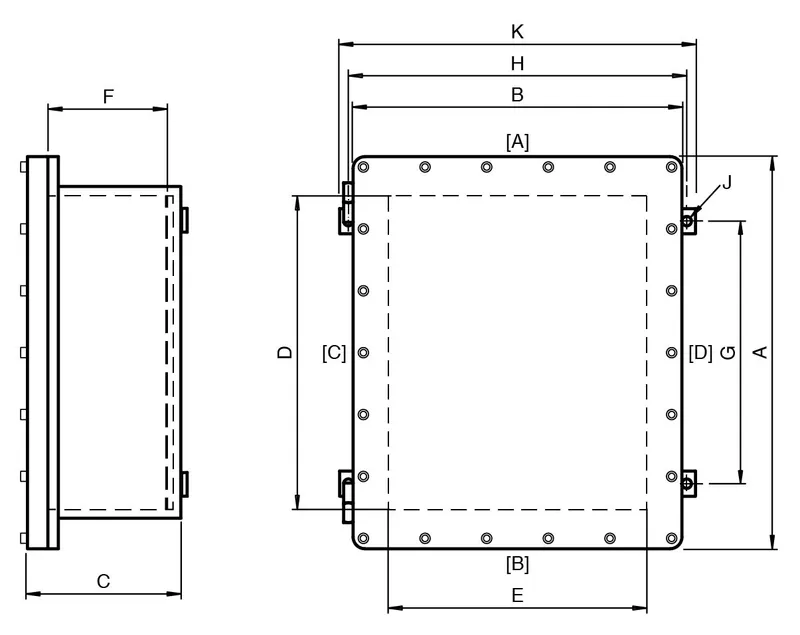

Solutions Ex d IIB or CID1 / CIID1 based on Stainless Steel Enclosures. Stainless Steel enclosure, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Suitable for operation in Class I, II Division 1, Ex d and Ex tb certified, Gas group IIB+H<SUB>2</SUB>, Degree of protection IP66 or IP66 / IP67, NEMA Type 4X, Various enclosure size and design variants, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Integration of electrical components and operating elements as per customer specification. Operating voltage: 1500 V DC / 1000 V AC max. for ATEX / IECEx 600 V AC / DC max. for North American approvals. Operating current: 1600 A max.. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: detachable , optional hinges. Cover fixing: stainless steel socket cap head screws. Screwssee data tableMaterial of screwsstainless steelYield stressmin. 450 N/mm2 for ATEX / IECEx , 100,000 PSI for North American approvals: . Screws: see data table. Material of screws: stainless steel. Yield stress: min. 450 N/mm2 for ATEX / IECEx , 100,000 PSI for North American approvals. Cover seal: none, O-ring for IP66/67. Flamepath grease: Greasil MS4 or NEVER SEEZ Marine Grade. Degree of protection: IP66 (IP66/IP67 with O-ring) , NEMA Type 4, 4X, 7, 9. Cable entry: see data table. Material: . EnclosureAISI 316L stainless steelGlassthermo-resistant tempered glassFinishshot peenedO-Ringsilicone: . Enclosure: AISI 316L stainless steel. Glass: thermo-resistant tempered glass. Finish: shot peened. O-Ring: silicone. Mass: see data table valid for empty enclosure, will increase according to integrated components. Dimensions: see data table values might differ slightly due to manufacturing tolerances dimensions are valid for standard enclosures and IP66 variants only. Mounting: see data table. Grounding: M6 external grounding points. Ambient temperature: -60 ... 60 °C (-76 ... 140 °F) depending on integrated components. EU-type examination certificate: INERIS 14 ATEX 0022X INERIS 14 ATEX 9010U. Marking II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window: . Marking: II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss. Maximum power dissipation: see data table maximum power dissipation at T4/+40 °C enclosure without window. UL approval: . Approved forClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9cULusEmpty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30cETLusControl panels E5003368Ambient temperature-25 ... 60 °C (-13 ... 140 °F): . Approved for: Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9. cULus: Empty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30. cETLus: Control panels E5003368. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). IECEx approval: IECEx INE 14.0029X IECEx INE 14.0028U. UKCA approval: CML 21 UKEX 1424X CML 21 UKEX 1425U. ECAS approval: 23-10-87483/E23-09-089610. CCC approval: 2020322303002546. Further approvals: available on request. Degree of protection: EN60529 and UL 50 / UL 50E. CE marking: 0080 or 0102, see type label. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Specifications
