Pepperl Fuchs ECA10TL - SSI
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable-Pull Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECA10TL - SSI be shipped?
ECA10TL - SSI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECA10TL - SSI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECA10TL - SSI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECA10TL - SSI, subject to availability and destination.

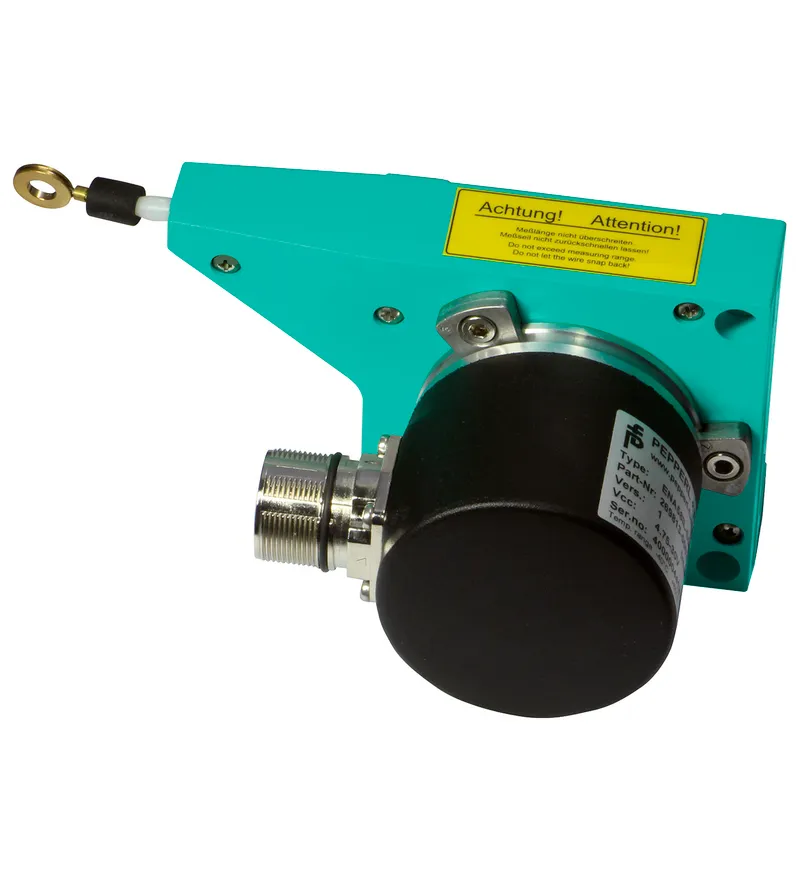

Cable pull rotary encoder. Cable pull rotary encoder with SSI interface, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Wide range of mounting options, Rust and acid-resistant measuring cable, Interface: SSI, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm, Interface type: SSI, Input type: Selection of counting direction (cw/ccw). Detection type: magnetic sampling. Device type: Target line with SSI interface. Measuring length: 3000 ... 10000 mm. Construction type: 80 mm, 130 mm, 190 mm. Resolution: Cable pull:design 80 mm: with 13 Bit 0,028 mm; with 12 Bit 0,056 mmdesign 130 mm: with 13 Bit 0,047 mm; with 12 Bit 0,094 mmdesign 190 mm: with 13 Bit 0,068 mm; with 12 Bit 0,0135 mm Encoder: standard 25 Bit (13 Bit/revolution) or as an option 24 Bit (12 Bit/revolution). Operating voltage: 4.75 ... 30 V DC. No-load supply current: typ. 50 mA. Power consumption: approx. 1.5 W. Output code: Gray code, binary code. Code course (counting direction): adjustable. Interface type: SSI. Transfer rate: 0.1 ... 2 MBit/s. Cycle time: < 100 µs. Standard conformity: RS 422. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.75 V ... UB (cw descending)Low0 ... 2 V or unconnected (cw ascending): . High: 4.75 V ... UB (cw descending). Low: 0 ... 2 V or unconnected (cw ascending). Input current: < 6 mA. Input type: zero-set (PRESET 1) with falling edge. Signal voltage: . High4.75 V ... UB: . High: 4.75 V ... UB. Signal duration: min. 1.1 s. Connector: M12 connector, 8-pin or M23 connector, 12-pin. Cable: ∅7 mm, 6 x 2 x 0.14 mm2. Degree of protection: acc. DIN EN 60529. Connection sidecable models: IP65 connector models: IP65 Cable pull: IP50: . Connection side: cable models: IP65 connector models: IP65 Cable pull: IP50. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 0.55 mm. Material: . Housingnickel-plated steelCable pulldesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17FlangeAluminumRopeStainless steel 1.4401/316: . Housing: nickel-plated steel. Cable pull: design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17. Flange: Aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles
Specifications
General specifications
| Detection type | magnetic sampling |
| Device type | Target line with SSI interface |
| Measuring length | 3000 ... 10000 mm |

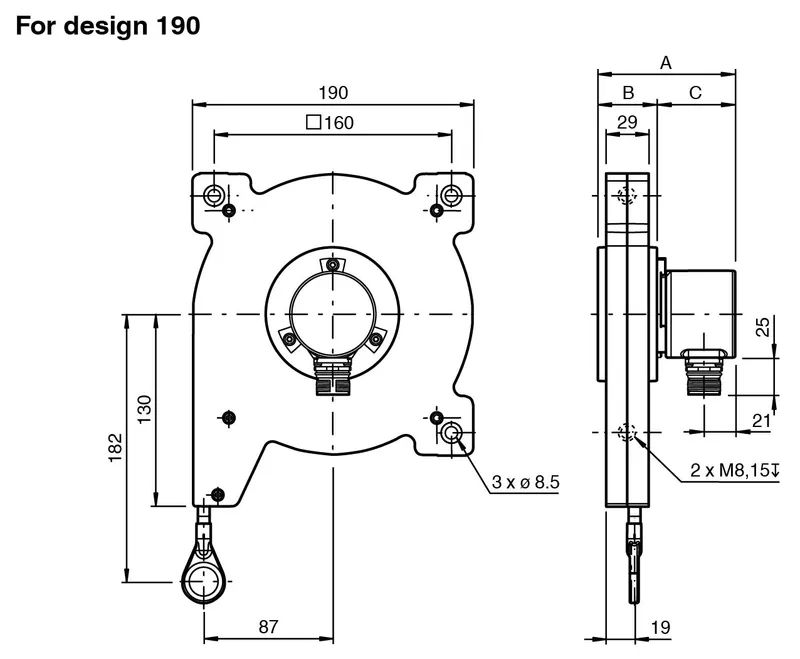

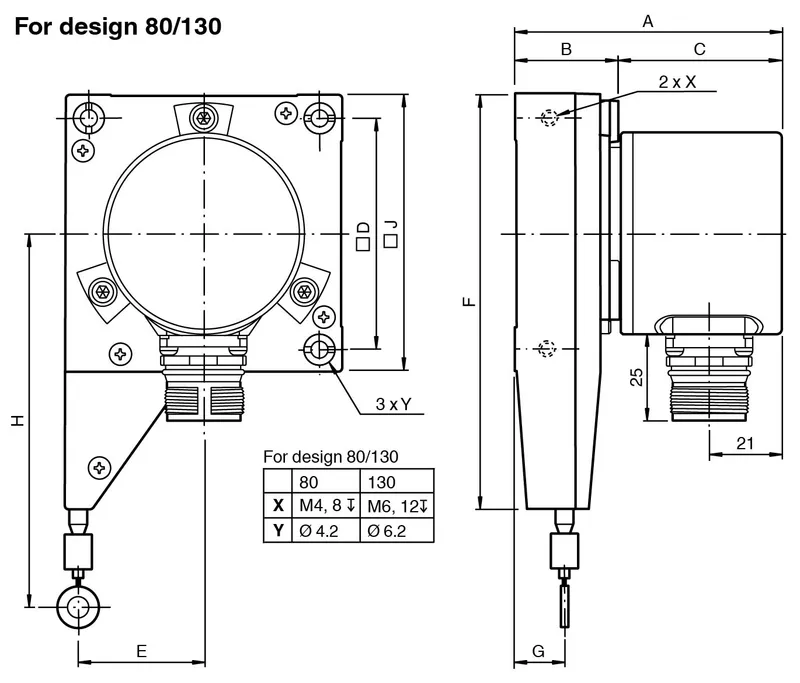

| Construction type | 80 mm, 130 mm, 190 mm |
| Resolution | Cable pull:design 80 mm: with 13 Bit 0,028 mm; with 12 Bit 0,056 mmdesign 130 mm: with 13 Bit 0,047 mm; with 12 Bit 0,094 mmdesign 190 mm: with 13 Bit 0,068 mm; with 12 Bit 0,0135 mm Encoder: standard 25 Bit (13 Bit/revolution) or as an option 24 Bit (12 Bit/revolution) |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC UB |
| No-load supply current | typ. 50 mA I0 |
| Power consumption | approx. 1.5 W P0 |
| Output code | Gray code, binary code |
| Code course (counting direction) | adjustable |
Interface
| Interface type | SSI |
| Transfer rate | 0.1 ... 2 MBit/s |
| Cycle time | < 100 µs |
| Standard conformity | RS 422 |
Input 1
| Input type | Selection of counting direction (cw/ccw) |
| Signal voltage | |
| High4.75 V ... UB (cw descending)Low0 ... 2 V or unconnected (cw ascending) | High |
| High | 4.75 V ... UB (cw descending) |
| Low | 0 ... 2 V or unconnected (cw ascending) |
| Input current | < 6 mA |
Input 2
| Input type | zero-set (PRESET 1) with falling edge |
| Signal voltage | |
| High4.75 V ... UB | High |
| High | 4.75 V ... UB |
| Signal duration | min. 1.1 s |

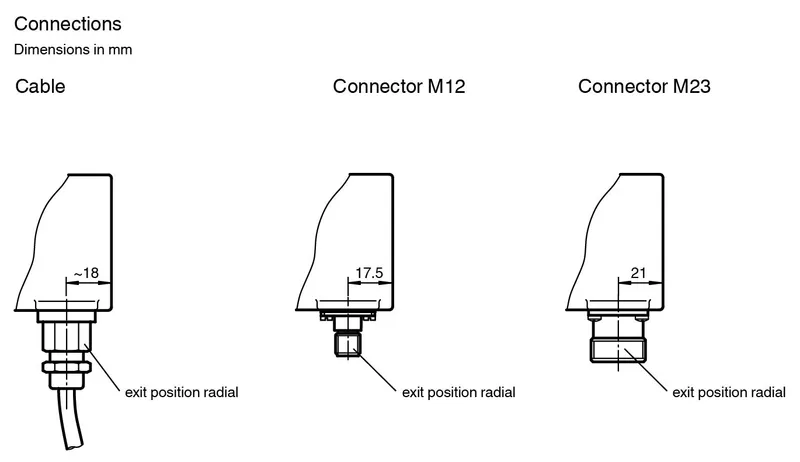

Connection
| Connector | M12 connector, 8-pin or M23 connector, 12-pin |
| Cable | ∅7 mm, 6 x 2 x 0.14 mm2 |
Standard conformity
| Degree of protection | acc. DIN EN 60529 |
| Connection sidecable models: IP65 connector models: IP65 Cable pull: IP50 | Connection side |
| Connection side | cable models: IP65 connector models: IP65 Cable pull: IP50 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Operating temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | 98 % , no moisture condensation |
Mechanical specifications
| Rope diameter | 0.55 mm |
| Material | |
| Housingnickel-plated steelCable pulldesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17FlangeAluminumRopeStainless steel 1.4401/316 | Housing |
| Housing | nickel-plated steel |
| Cable pull | design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17 |
| Flange | Aluminum |
| Rope | Stainless steel 1.4401/316 |
| Life span | up to 106 Cycles |
