Pepperl Fuchs E501001
Quick facts
| Availability | Confirmed on request |
| Category | Signaling Devices (Ex d, Ex i) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can E501001 be shipped?
E501001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up E501001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for E501001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for E501001, subject to availability and destination.

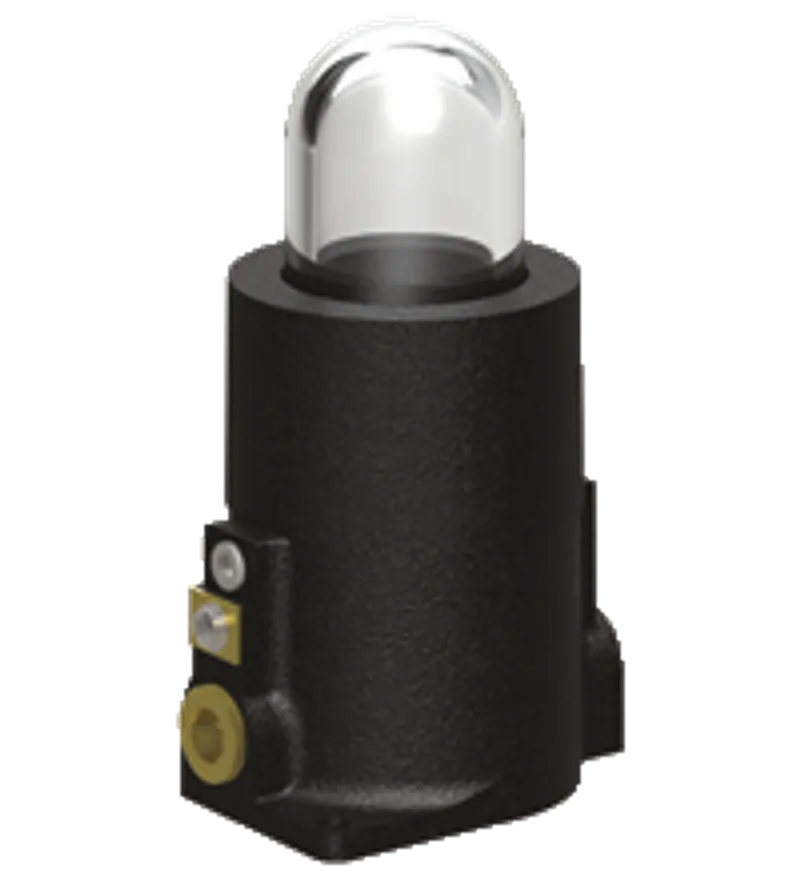

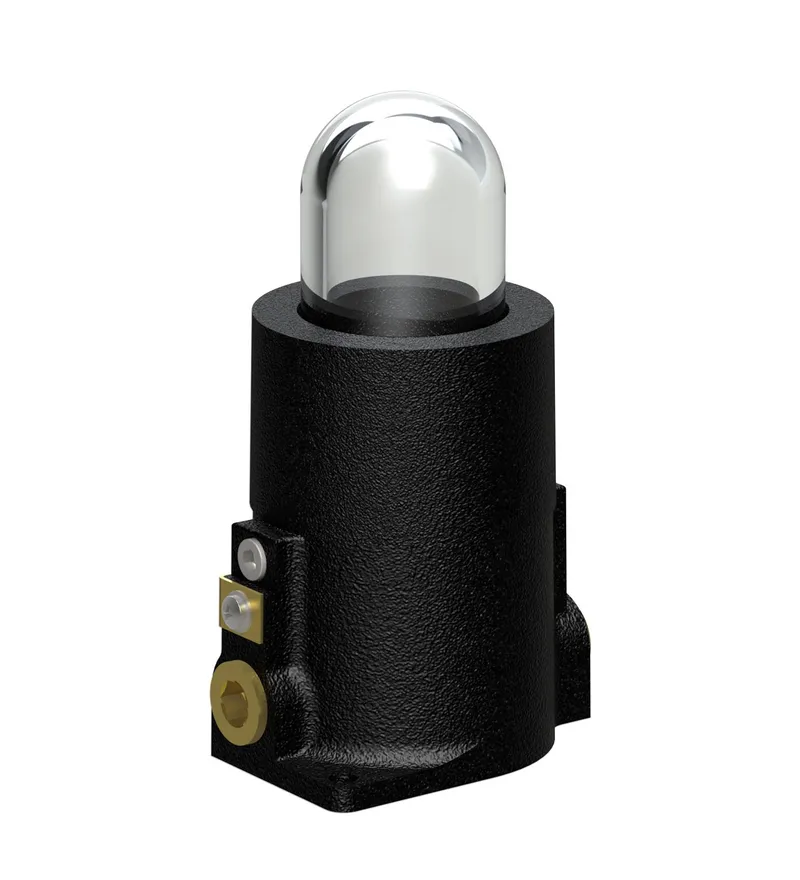

Ex d Cast Iron Single Status/Indicator Lamp. Glass color: white, 158 mm x 90 mm x 73 mm, Cast Iron, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Threaded cable entries, Ex d certified. Operating voltage: 220 ... 254 V 50/60 Hz. Operating current: 0.15 A max.. Terminal capacity: 2.5 mm2. Lamps: incandescent. Power15 WLampholderBC type: . Power: 15 W. Lampholder: BC type. Function: Signal beacon. Cover fixing: threaded joint. Degree of protection: IP65. Cable entry face A: . M20 quantity1M20 typemetric ISO pitch 1.5 mmM20 infoStopping Plug: . M20 quantity: 1. M20 type: metric ISO pitch 1.5 mm. M20 info: Stopping Plug. Cable entry face B: . M20 quantity1M20 typemetric ISO pitch 1.5 mm: . M20 quantity: 1. M20 type: metric ISO pitch 1.5 mm. Material: . Enclosurecast ironGlasstoughened glassGlass colorwhiteFinishcast iron: painted blackSealnitrile O-ring: . Enclosure: cast iron. Glass: toughened glass. Glass color: white. Finish: cast iron: painted black. Seal: nitrile O-ring. Mass: approx. 2 kg. Dimensions: . External dimension (A)159 mmExternal dimension (B)89.8 mmExternal dimension (C)78.2 mmMounting holes distance (G)64 mmMounting holes distance (H)78 mmMounting holes diameter (J)6.9 mm: . External dimension (A): 159 mm. External dimension (B): 89.8 mm. External dimension (C): 78.2 mm. Mounting holes distance (G): 64 mm. Mounting holes distance (H): 78 mm. Mounting holes diameter (J): 6.9 mm. Grounding: internal & external brass grounding terminals on base. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F). EU-type examination certificate: CML 21 ATEX 1699. Marking II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta ... +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta ... +55°C ): . Marking: II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta ... +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta ... +55°C ). IECEx approval: IECEx CML 21.0081. UKCA approval: CML 21 UKEX 1819. Degree of protection: EN 60529. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Specifications
Electrical specifications
| Operating voltage | 220 ... 254 V 50/60 Hz |
| Operating current | 0.15 A max. |
| Terminal capacity | 2.5 mm2 |
| Lamps | incandescent |
| Power15 WLampholderBC type | |
| Power | 15 W |
| Lampholder | BC type |
| Function | Signal beacon |
Mechanical specifications
| Cover fixing | threaded joint |
| Degree of protection | IP65 |
| Cable entry face A | |
| M20 quantity1M20 typemetric ISO pitch 1.5 mmM20 infoStopping Plug | |
| M20 quantity | 1 |
| M20 type | metric ISO pitch 1.5 mm |
| M20 info | Stopping Plug |
| Cable entry face B | |
| M20 quantity1M20 typemetric ISO pitch 1.5 mm | |
| M20 quantity | 1 |
| M20 type | metric ISO pitch 1.5 mm |
| Material | |
| Enclosurecast ironGlasstoughened glassGlass colorwhiteFinishcast iron: painted blackSealnitrile O-ring | |
| Enclosure | cast iron |
| Glass | toughened glass |
| Glass color | white |
| Finish | cast iron: painted black |
| Seal | nitrile O-ring |
| Mass | approx. 2 kg |

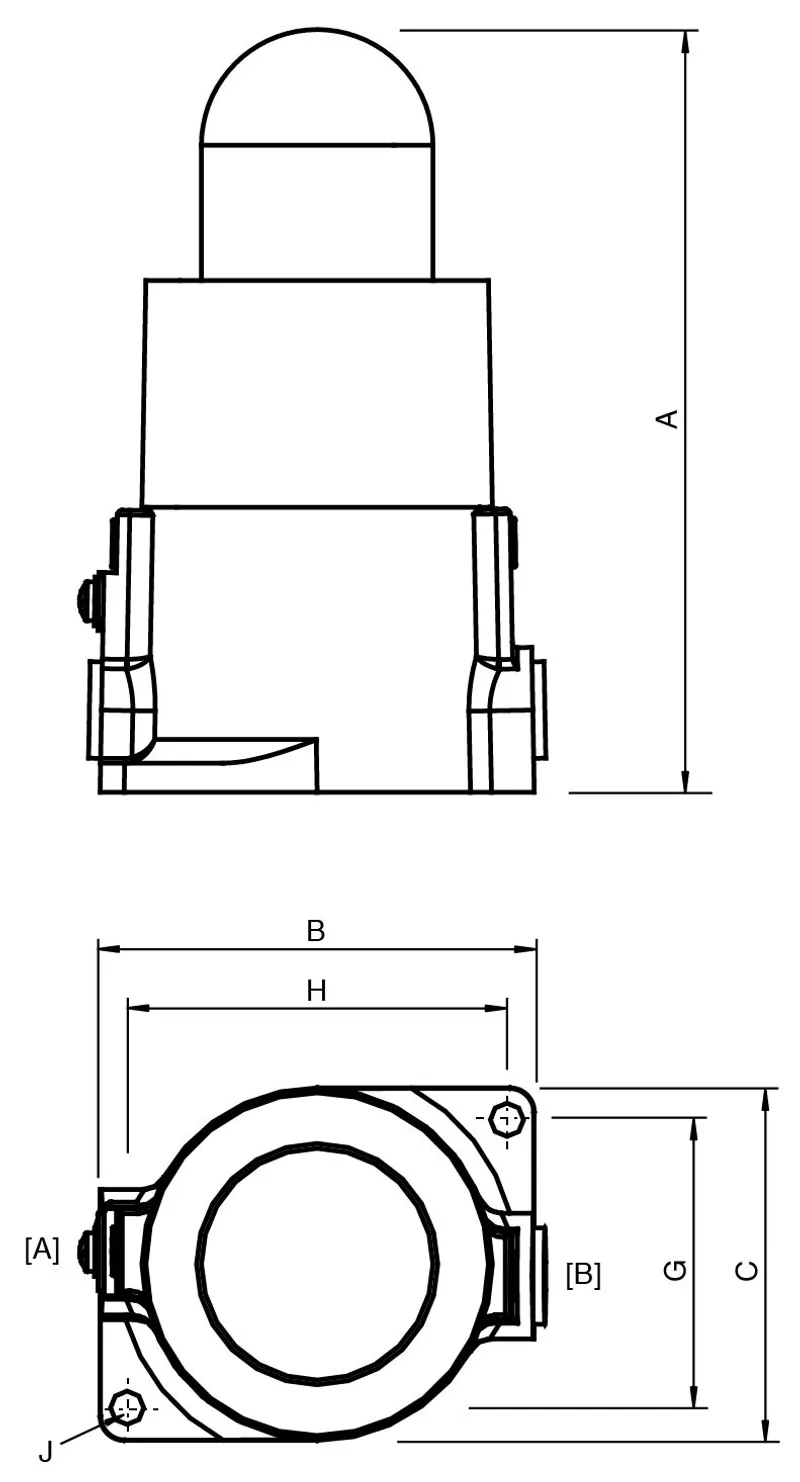

| Dimensions | |
| External dimension (A)159 mmExternal dimension (B)89.8 mmExternal dimension (C)78.2 mmMounting holes distance (G)64 mmMounting holes distance (H)78 mmMounting holes diameter (J)6.9 mm | |
| External dimension (A) | 159 mm |
| External dimension (B) | 89.8 mm |
| External dimension (C) | 78.2 mm |
| Mounting holes distance (G) | 64 mm |
| Mounting holes distance (H) | 78 mm |
| Mounting holes diameter (J) | 6.9 mm |
| Grounding | internal & external brass grounding terminals on base |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 21 ATEX 1699 |
| Marking II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta ... +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta ... +55°C ) | |
| Marking | II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta ... +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta ... +55°C ) |
International approvals
| IECEx approval | IECEx CML 21.0081 |
| UKCA approval | CML 21 UKEX 1819 |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
