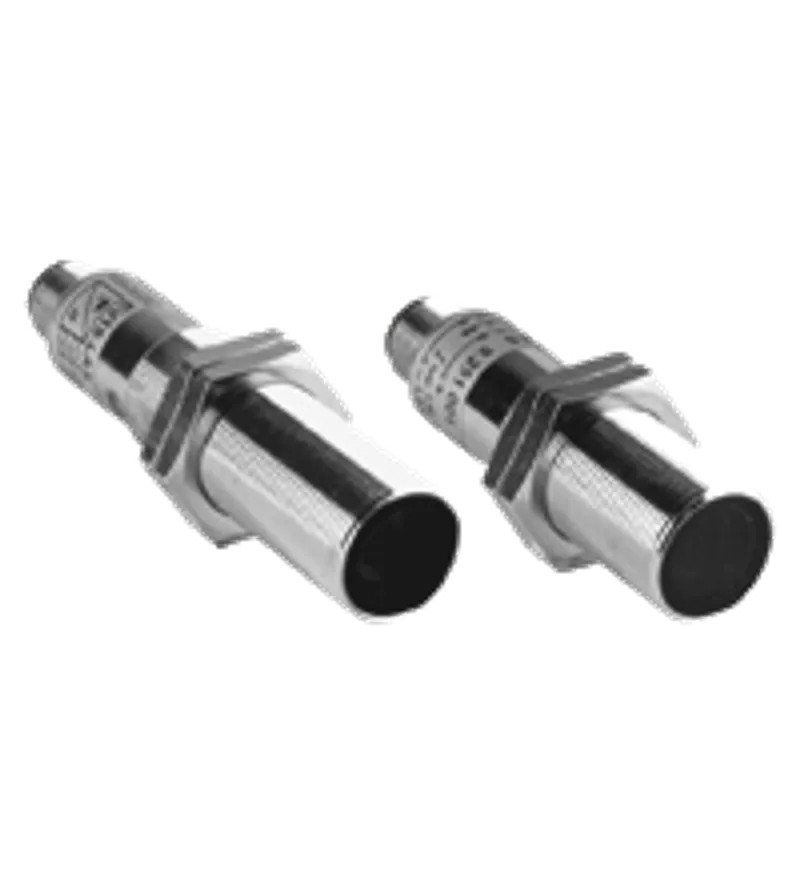

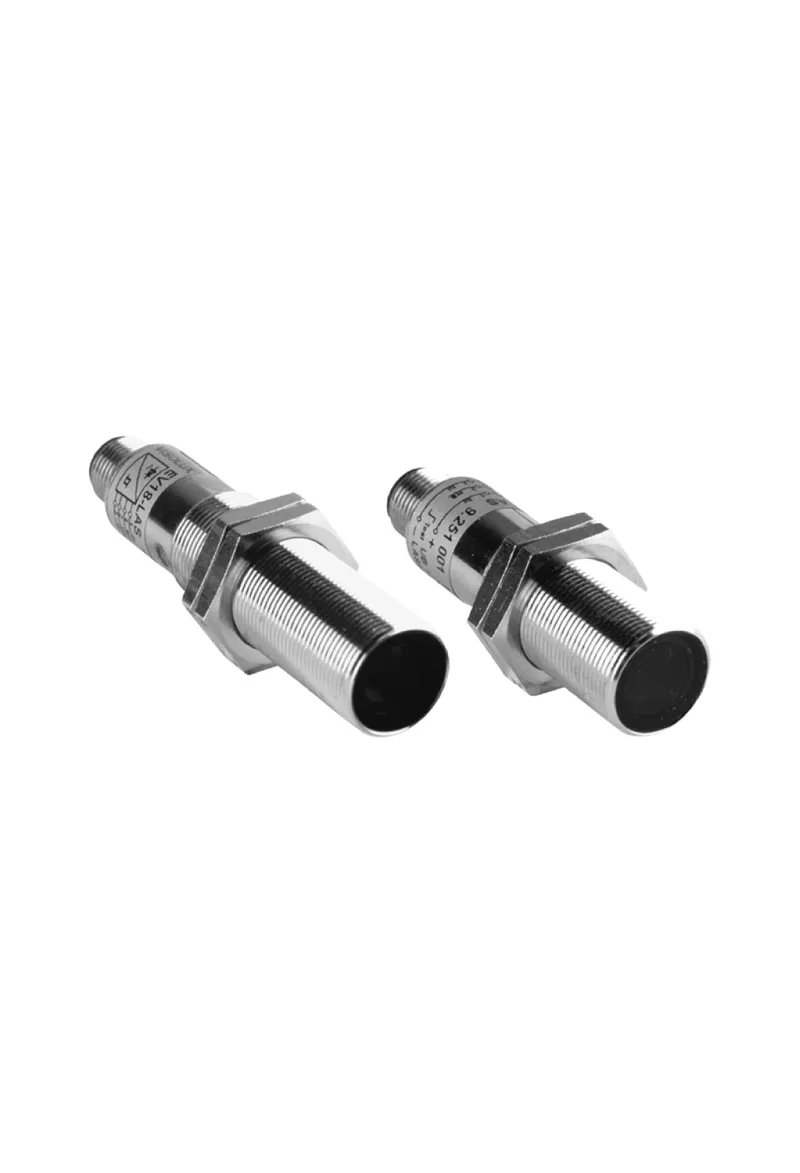

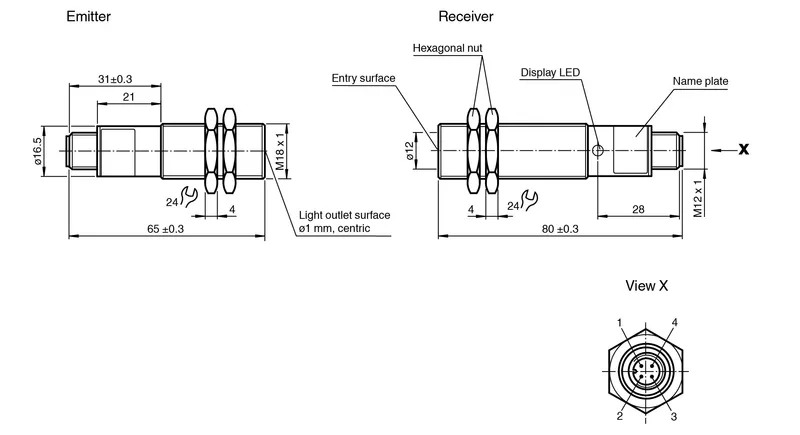

Pepperl Fuchs E18/EV18-LAS/32/59/76a/92

Thru-beam sensor. Laser thru-beam sensor, M18 threaded housing design, metal housing, front optical face, 10 m detection range, red light, dark on, DC version, PNP output, test input, M12 plug, Laser thru-beam sensor in the M18 housing, Metal design, Automatic threshold value adaptation, Very high switching accuracy, Light beam diameter < 1.5 mm. Emitter: E18-LAS/92. Receiver: EV18-LAS/32/59/92. Effective detection range: 0 ... 10 m. Threshold detection range: 18 m. Light source: laser diode. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length650 nmBeam divergence1 mradPulse length15 µsRepetition rate10 kHzmax. pulse energy< 10.2 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 650 nm. Beam divergence: 1 mrad. Pulse length: 15 µs. Repetition rate: 10 kHz. max. pulse energy: < 10.2 nJ. Target size: 1.2 mm. Light receiver: photo diode. Diameter of the light spot: approx. 2 mm at detection range 1.5 m. Opening angle: Receiver +/-2°. Optical face: frontal. Ambient light limit: . Continuous light5000 Lux: . Continuous light: 5000 Lux. Hysteresis: 25 %. MTTFd: 208.3 a. Mission Time (TM): 7 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: emitter ≤ 25 mA , receiver ≤ 60 mA. Test input: Emitter deactivationemitter on: 0 ... +3Vemitter off: +5V ... +UB. Stability alarm output: PNP, open collector , short-circuit protected inactive: signal strength > approx. 30 % of the strength with clean opticactive: signal strength < approx. 30 % of the strength with clean optic. Switching type: dark-on. Signal output: 1 PNP, short-circuit protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Laser safety: IEC 60825-1:2007. Standard conformity: . Shock and impact resistanceIEC / EN 60068, half-sine, 30 g in X, Y and Z directionVibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions: . Shock and impact resistance: IEC / EN 60068, half-sine, 30 g in X, Y and Z direction. Vibration resistance: IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP65. Connection: 4-pin, M12 x 1 connector. Material: . Housingbrass, nickel-platedOptical faceglassConnectormetal: . Housing: brass, nickel-plated. Optical face: glass. Connector: metal. Mass: per 45 g. Dimensions: . Length80 mmDiameter18 mm: . Length: 80 mm. Diameter: 18 mm

Specifications
