Pepperl Fuchs EA/DA*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal and Junction Boxes (Ex e, Ex i, Ex op) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EA/DA* be shipped?
EA/DA* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EA/DA* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EA/DA* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EA/DA*, subject to availability and destination.

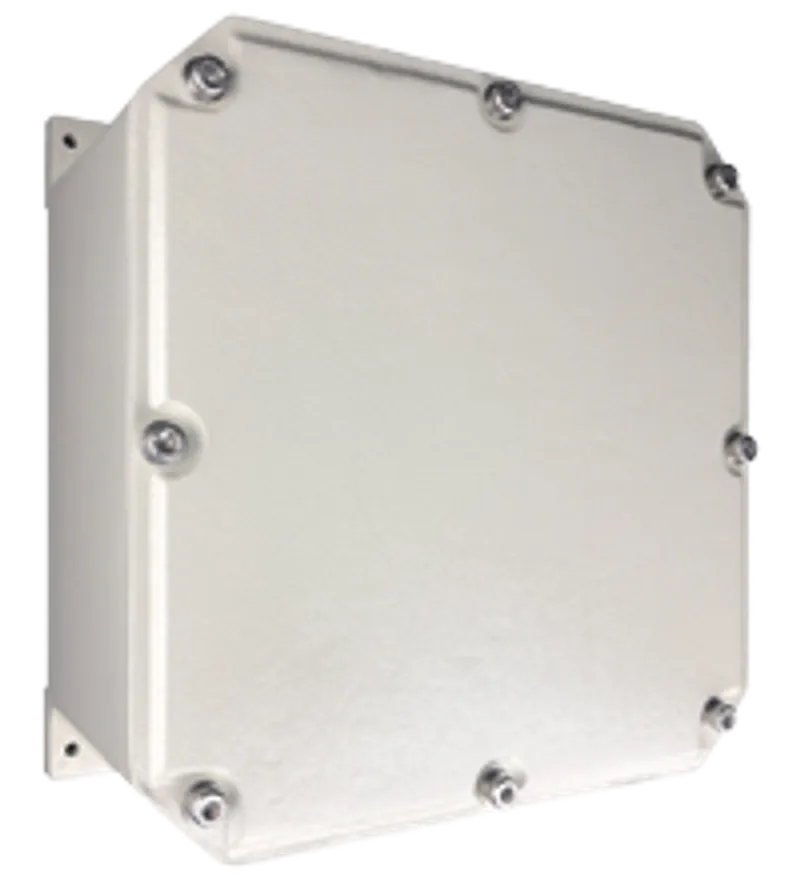

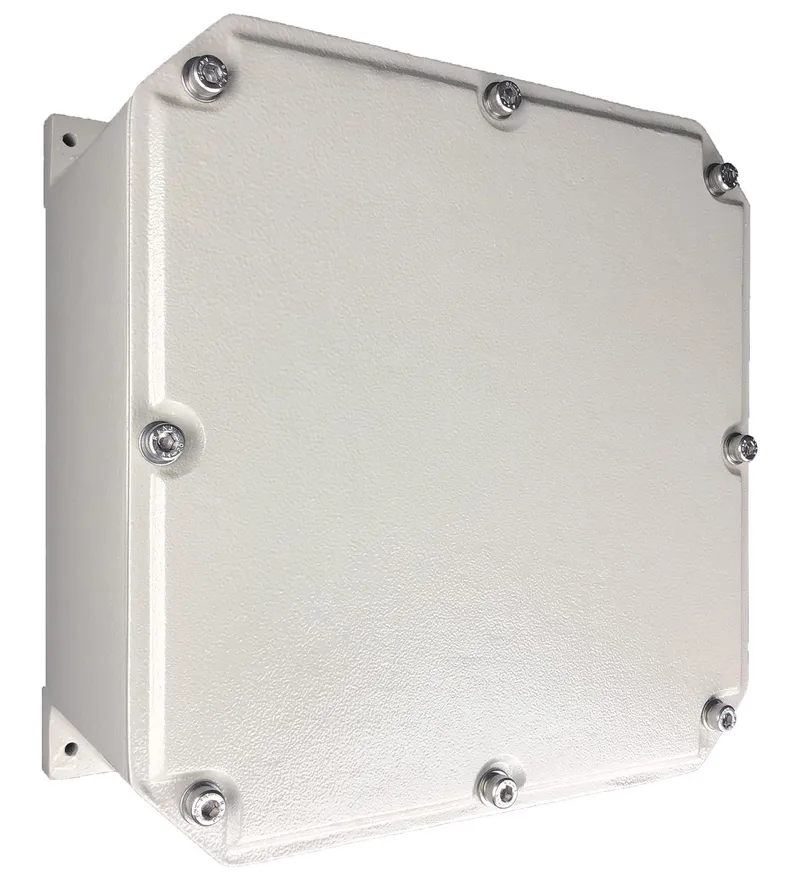

Terminal Box Ex e, Aluminum. Aluminum alloy, Various enclosure size and design variants, Ex e and Ex tD certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Customizable configuration as per specification, Degree of protection IP66, Explosion protection: Ex e, Enclosure: aluminum alloy. Operating voltage: 690 V max.. Operating current: application-specific. Enclosure cover: fully detachable. Cover fixing: stainless steel socket cap head screws. Screwssee PDF data sheetMaterial of screwsstainless steelYield stressmin. 1100 N/mm2: . Screws: see PDF data sheet. Material of screws: stainless steel. Yield stress: min. 1100 N/mm2. Cover seal: chloroprene. Degree of protection: IP66. Cable entry: see PDF data sheet cable glands as per specification. Terminal assembly: . Number of railssee PDF data sheetNumber of terminals per railsee PDF data sheet: . Number of rails: see PDF data sheet. Number of terminals per rail: see PDF data sheet. Material: . Enclosurealuminum alloyFinishEA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange: . Enclosure: aluminum alloy. Finish: EA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange. Mass: see PDF data sheet valid for empty enclosure, will increase according to integrated components. Dimensions: see PDF data sheet. Mounting: see PDF data sheet. Grounding: see PDF data sheet. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F) depending on integrated components. EU-type examination certificate: SIRA 09 ATEX 3178X. Marking II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °CMaximum power dissipationsee PDF data sheet: . Marking: II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °C. Maximum power dissipation: see PDF data sheet. IECEx approval: IECEx SIM 08.0017X. Degree of protection: EN60529. CE marking: 0102. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Specifications
Electrical specifications
| Operating voltage | 690 V max. |
| Operating current | application-specific |
Mechanical specifications
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee PDF data sheetMaterial of screwsstainless steelYield stressmin. 1100 N/mm2 | Screws |
| Screws | see PDF data sheet |
| Material of screws | stainless steel |
| Yield stress | min. 1100 N/mm2 |
| Cover seal | chloroprene |
| Degree of protection | IP66 |
| Cable entry | see PDF data sheet cable glands as per specification |
| Terminal assembly | |
| Number of railssee PDF data sheetNumber of terminals per railsee PDF data sheet | Number of rails |
| Number of rails | see PDF data sheet |
| Number of terminals per rail | see PDF data sheet |
| Material | |
| Enclosurealuminum alloyFinishEA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange | Enclosure |
| Enclosure | aluminum alloy |
| Finish | EA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange |
| Mass | see PDF data sheet valid for empty enclosure, will increase according to integrated components |

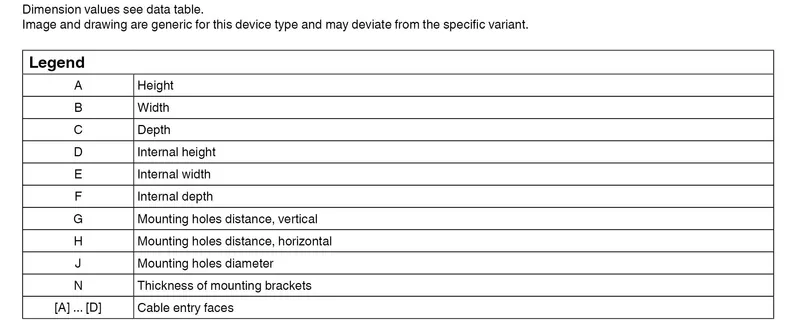

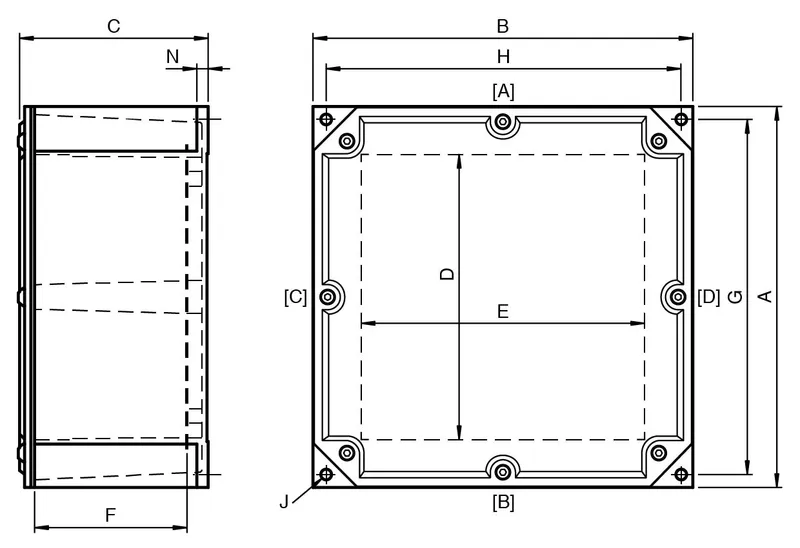

| Dimensions | see PDF data sheet |
| Mounting | see PDF data sheet |
| Grounding | see PDF data sheet |
Ambient conditions
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) depending on integrated components |
Data for application in connection with hazardous areas
| EU-type examination certificate | SIRA 09 ATEX 3178X |
| Marking II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °CMaximum power dissipationsee PDF data sheet | Marking |
| Marking | II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °C |
| Maximum power dissipation | see PDF data sheet |
International approvals
| IECEx approval | IECEx SIM 08.0017X |
Conformity
| Degree of protection | EN60529 |
| CE marking | 0102 |
General information
| Ordering information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
