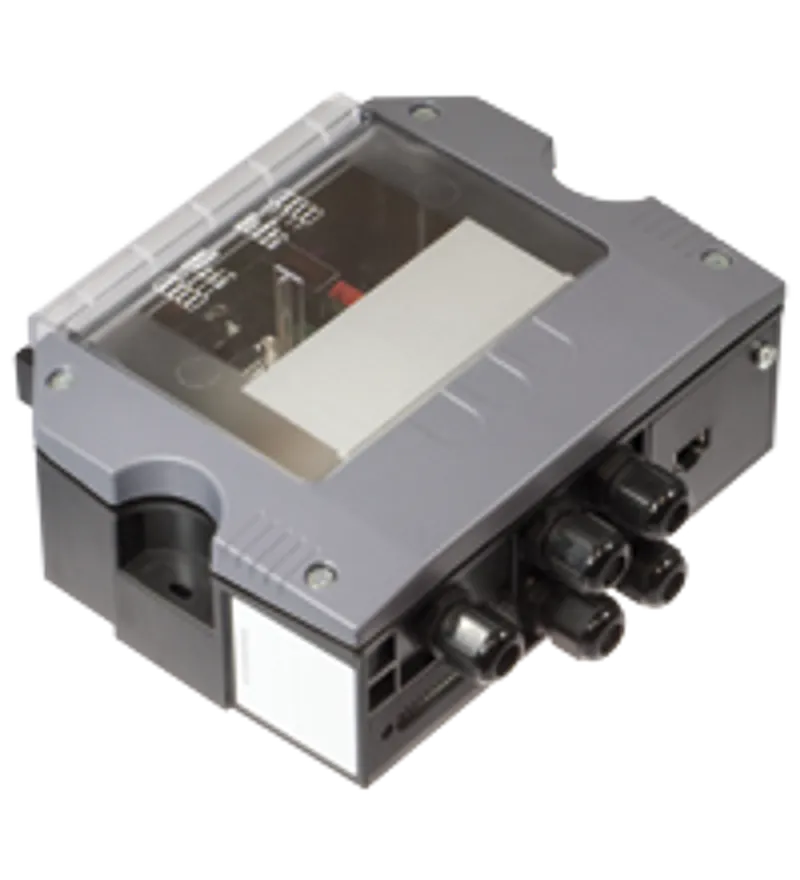

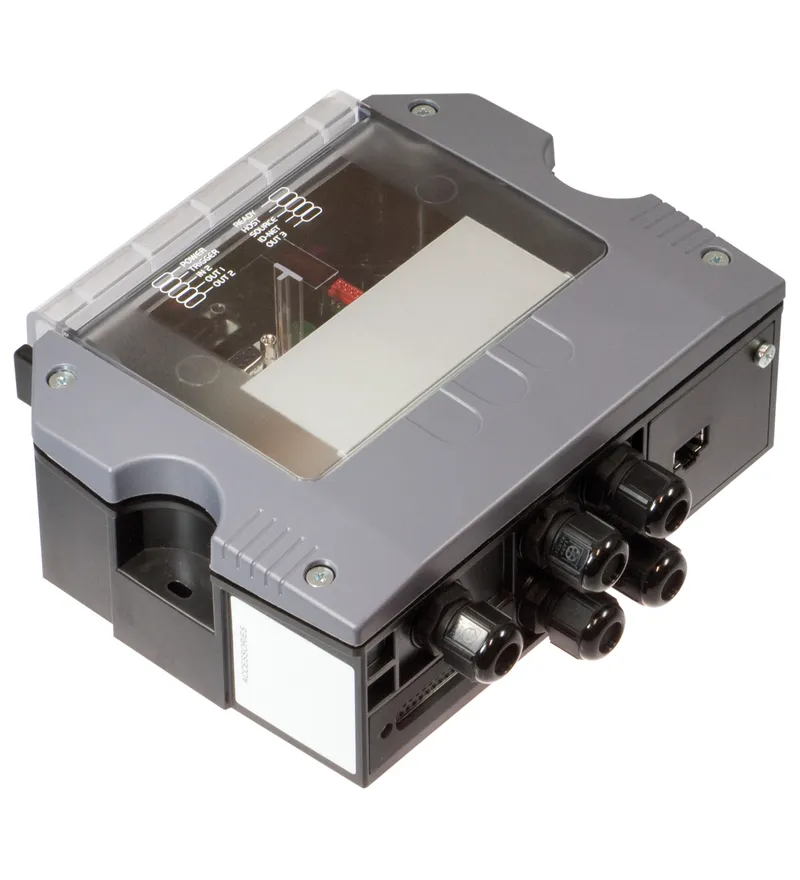

Pepperl Fuchs CBX800-KIT-B17
Connector box
- MPN
- CBX800-KIT-B17
- Category
- Ethernet Devices
Price and lead time confirmed within 1 business day
Discontinued by Pepperl Fuchs — we can still source the original CBX800-KIT-B17 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs CBX800-KIT-B17?
PROFINET interface
Easy scanner connection by means of clamp terminals
Connection module for RS-232 and RS-485 enabled devices, PROFINET interface, Easy scanner connection by means of clamp terminals
Pepperl+Fuchs has archived the CBX800-KIT-B17: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.
Specifications
Indicators/operating means
| Order code (Pepperl+Fuchs part number) | 227016 |
| Display elements | 8 LEDs (POWER, ERROR, TRIGGER, IN 2, OUT 1, OUT 2, READY, HOST) |
| Lifecycle | Discontinued — archived by Pepperl+Fuchs |
Electrical specifications
| Operating voltage | 10 ... 30 V DC PELV UB |
| Current consumption | max. 2.5 A |
| Power consumption | max. 3 W P0 |
Interface
| Physical | Ethernet |
| Protocol | PROFINET IO |
| Transfer rate | 100 MBit/s |
Compliance with standards and directives
| Directive conformity | 89/336 EWG |
| Standard conformity: Noise immunity | EN 61000-6-2 |
| Standard conformity: Degree of protection | EN 60529 |
| Standard conformity: Shock and impact resistance | EN 60068-2-27 |
| Standard conformity: Vibration resistance | EN 60068-2-6 |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | 90 % , non-condensing |
| Shock resistance | 30G ; 11 ms ; 3 impacts on each axis |
| Vibration resistance | 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis |

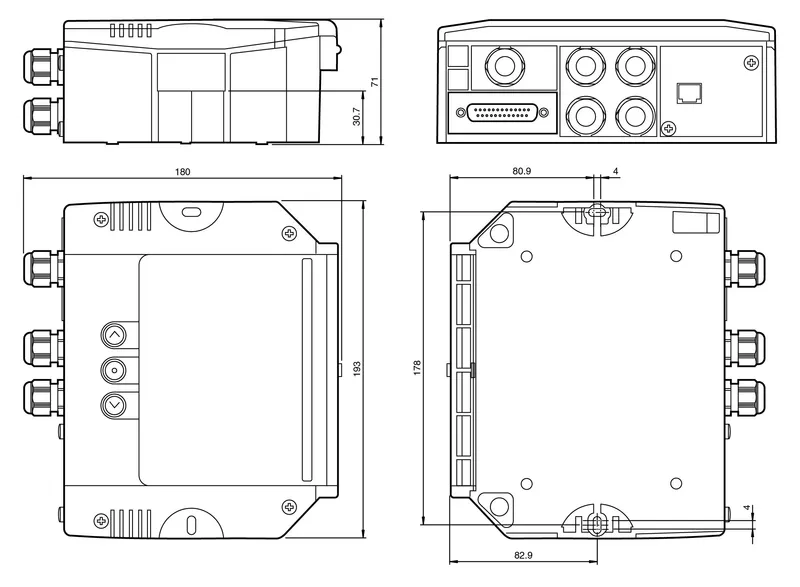

Mechanical specifications
| Degree of protection | IP20 |
| Connection | 25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (5x) , RJ-45 socket, 8-pin |
| Material: Housing | PC (Polycarbonate) |
| Mass | 780 g |
| Dimensions: Height | 71 mm |
| Dimensions: Width | 192 mm |
| Dimensions: Depth | 180 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
CBX800-KIT-B17: frequently asked questions
Can I still buy the CBX800-KIT-B17 now that it is discontinued?
Yes. Pepperl Fuchs has discontinued the CBX800-KIT-B17, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CBX800-KIT-B17 be shipped?
CBX800-KIT-B17 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CBX800-KIT-B17 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CBX800-KIT-B17 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CBX800-KIT-B17, subject to availability and destination.
