Pepperl Fuchs CBX500-KIT-B19-IP65

Name: Pepperl Fuchs CBX500-KIT-B19-IP65
Brand: Pepperl Fuchs
SKU: CBX500-KIT-B19-IP65

MPN: CBX500-KIT-B19-IP65 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Ethernet Devices
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can CBX500-KIT-B19-IP65 be shipped?

CBX500-KIT-B19-IP65 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CBX500-KIT-B19-IP65 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CBX500-KIT-B19-IP65 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CBX500-KIT-B19-IP65, subject to availability and destination.

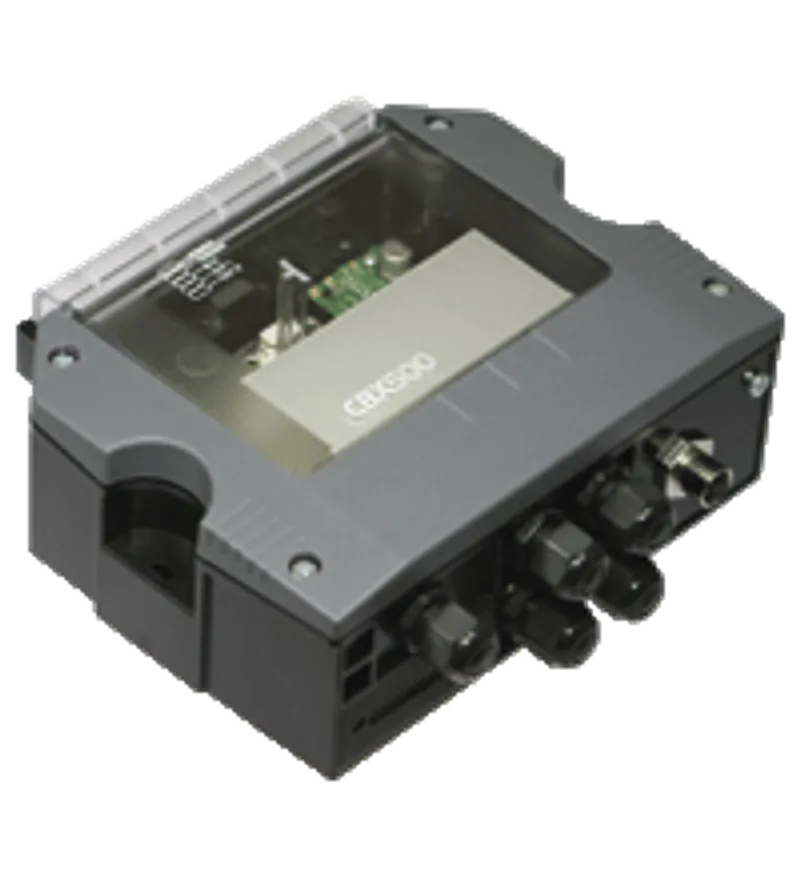

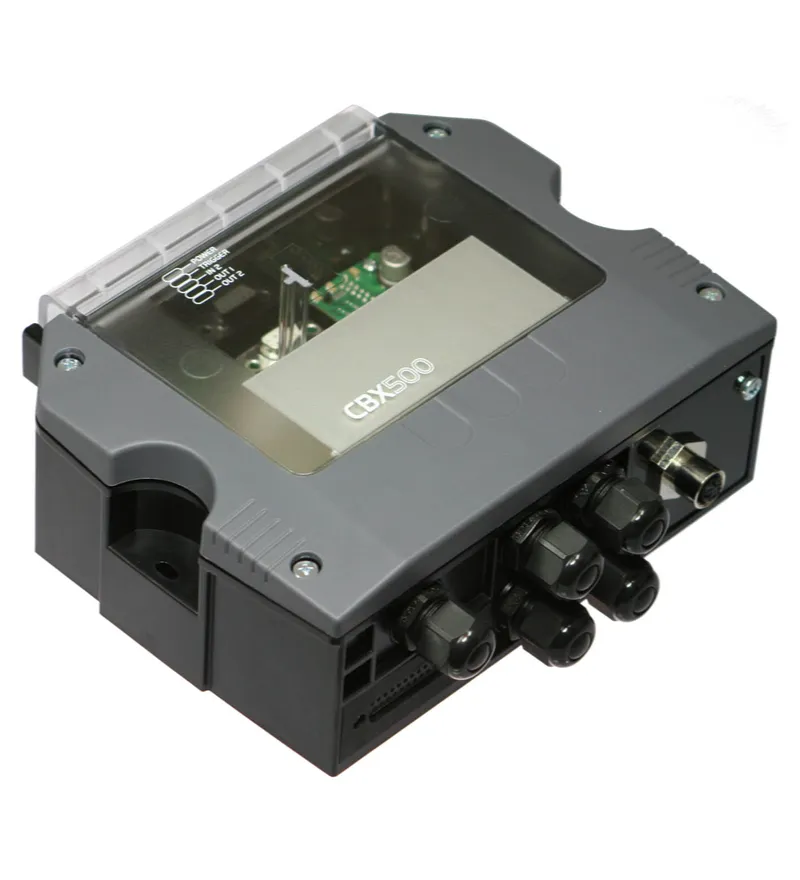

Connector box for barcode scanner. EtherNet/IP Connector box for barcode scanner, Connect up to 32 scanners to a network with ID-Net<SUP>TM</SUP>, Easy scanner connection by means of clamp terminals, Degree of protection IP65. Display elements: 5 LEDs (POWER, TRIGGER, IN 2, OUT 1, OUT 2). Operating voltage: 10 ... 30 V DC PELV. Current consumption: max. 2.5 A. Power consumption: max. 3 W. Physical: Ethernet. Protocol: TCP/IP , EtherNet/IP. Transfer rate: 100 MBit/s. Directive conformity: 89/336 EWG. Standard conformity: . Noise immunityEN 61000-6-2Degree of protectionEN 60529Shock and impact resistanceEN 60068-2-27Vibration resistanceEN 60068-2-6: . Noise immunity: EN 61000-6-2. Degree of protection: EN 60529. Shock and impact resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: 90 % , noncondensing. Shock resistance: 30G ; 11 ms ; 3 impacts on each axis. Vibration resistance: 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis. Degree of protection: IP65. Connection: 25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (5x) , M12 x 1 socket ... , EtherNet/IP. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: 780 g. Dimensions: . Height71 mmWidth192 mmDepth180 mm: . Height: 71 mm. Width: 192 mm. Depth: 180 mm

Specifications

Indicators/operating means

Display elements

5 LEDs (POWER, TRIGGER, IN 2, OUT 1, OUT 2)

Electrical specifications

Operating voltage	10 ... 30 V DC PELV UB
Current consumption	max. 2.5 A
Power consumption	max. 3 W P0

Interface

Physical	Ethernet
Protocol	TCP/IP , EtherNet/IP
Transfer rate	100 MBit/s

Compliance with standards and directives

Directive conformity	89/336 EWG
Standard conformity
Noise immunityEN 61000-6-2Degree of protectionEN 60529Shock and impact resistanceEN 60068-2-27Vibration resistanceEN 60068-2-6	Noise immunity
Noise immunity	EN 61000-6-2
Degree of protection	EN 60529
Shock and impact resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6

Ambient conditions

Ambient temperature	0 ... 50 °C (32 ... 122 °F)
Storage temperature	-20 ... 70 °C (-4 ... 158 °F)
Relative humidity	90 % , noncondensing
Shock resistance	30G ; 11 ms ; 3 impacts on each axis
Vibration resistance	1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis

Mechanical specifications

Degree of protection	IP65
Connection	25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (5x) , M12 x 1 socket ... , EtherNet/IP
Material
HousingPC (Polycarbonate)	Housing
Housing	PC (Polycarbonate)
Mass	780 g

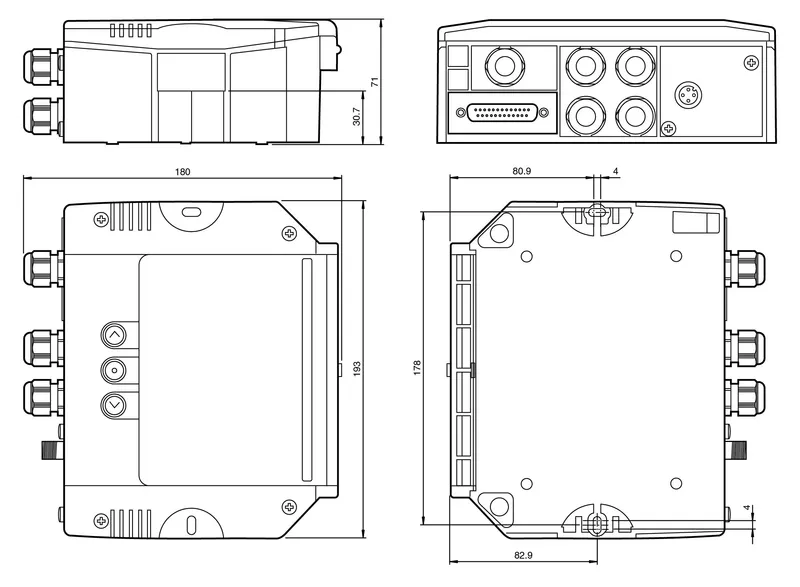

Dimensions
Height71 mmWidth192 mmDepth180 mm	Height
Height	71 mm
Width	192 mm
Depth	180 mm
